63 99 071 Replacing halogen-light bulb for left or right headlight

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Up To 10/2003:

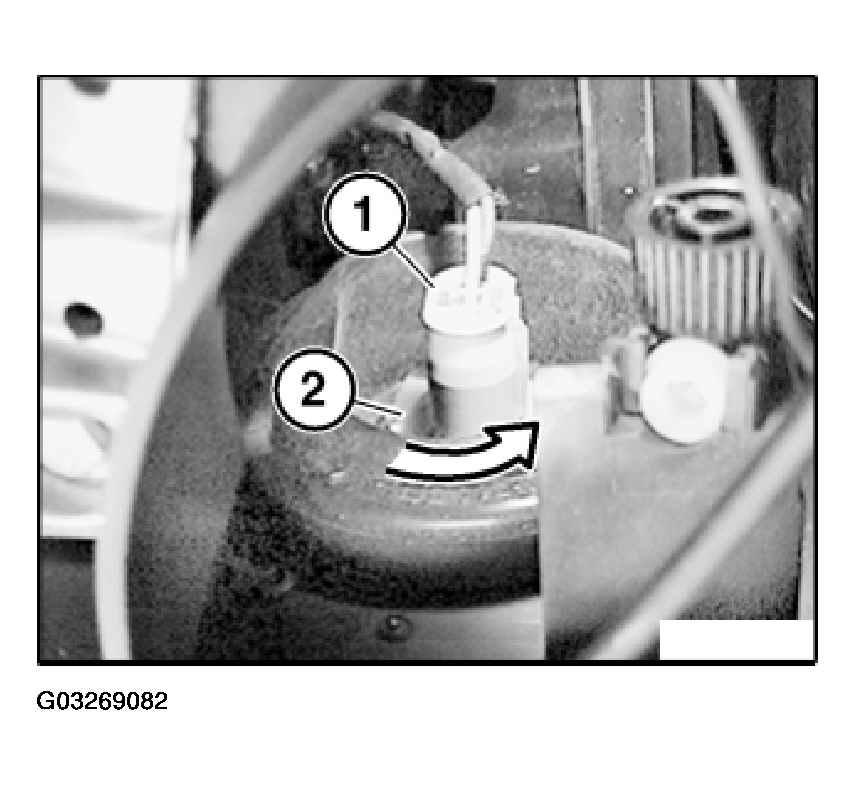

Disconnect plug connection (1).

Turn bulb holder (2) approx. 45° in direction of arrow and remove.

Remove bulb.

Fig 1: Aligning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

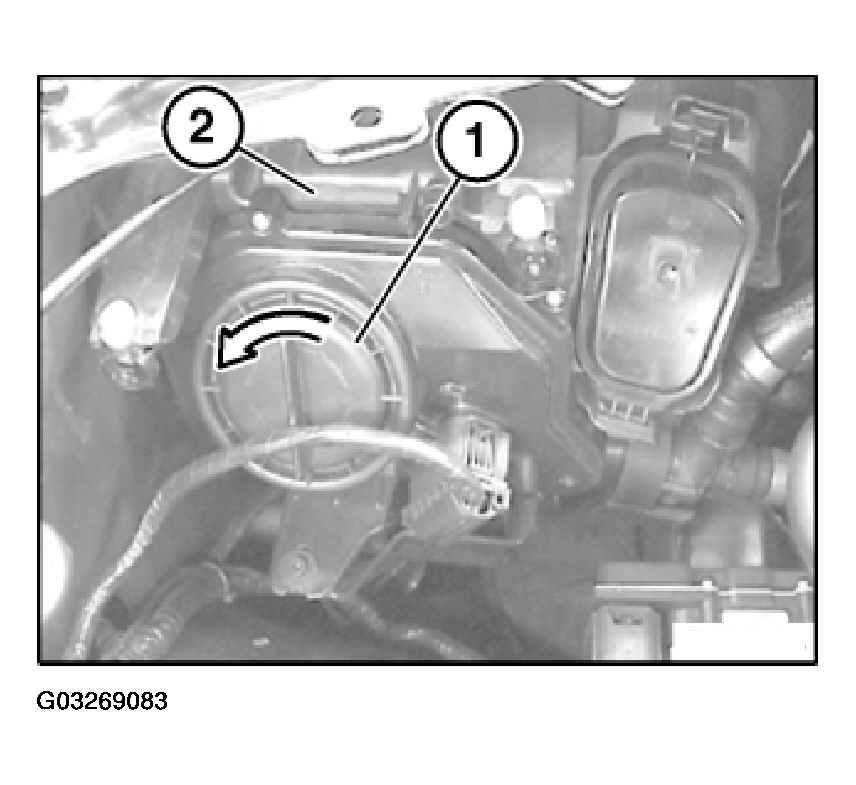

Turn cover (1) in direction of arrow and remove from headlight (2).

Installation:

Make sure seal of cover (1) is correctly seated.

Fig 2: Identifying Right Headlight Bulb Cover

Courtesy of BMW OF NORTH AMERICA, INC.

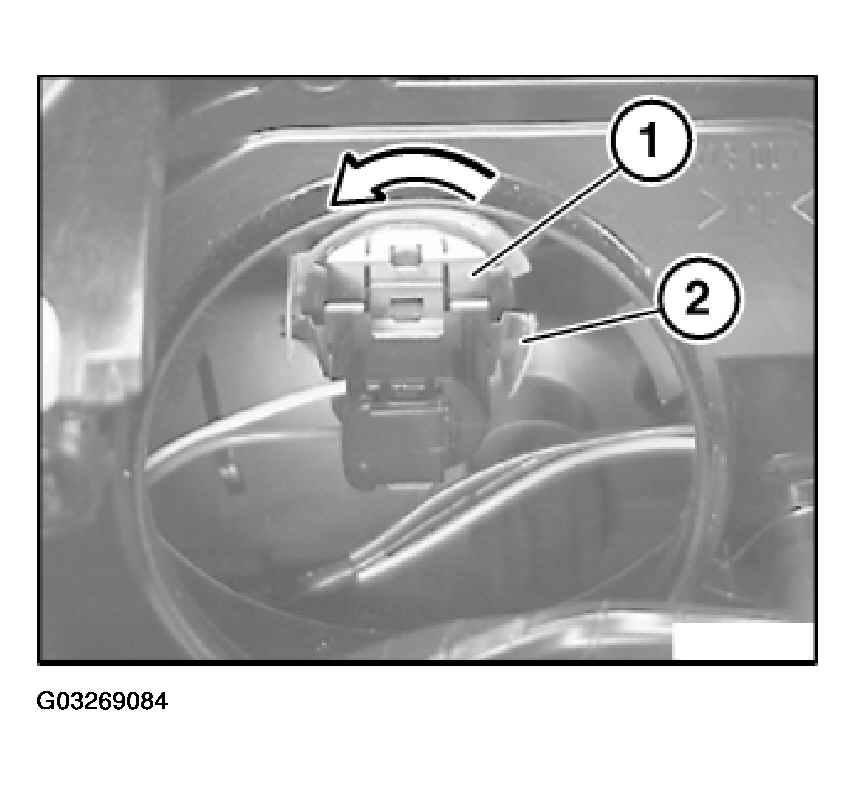

Turn bulb holder (1) in direction of arrow and remove towards rear from carrier (2).

Detach bulb from bulb holder (1).

All:

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .

Fig 3: Detaching Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
