63 99 002 Replacing halogen bulb for high-beam headlight on left

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

N62 Only:

Release screws (1).

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

Fig 1: Identifying Cover Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Up To 10/2003:

Unfasten plug connection (1) and disconnect.

Turn bulb holder (2) approx. 45° in direction of arrow and remove.

Remove bulb.

Fig 2: Identifying High-Beam Headlight Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

Press catch (1).

Fold back cover (2) and remove.

Installation:

Make sure seal of cover (2) is correctly seated.

Fig 3: Identifying Cover For High-Beam Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Press locking clip (2) and expand. Remove bulb (3).

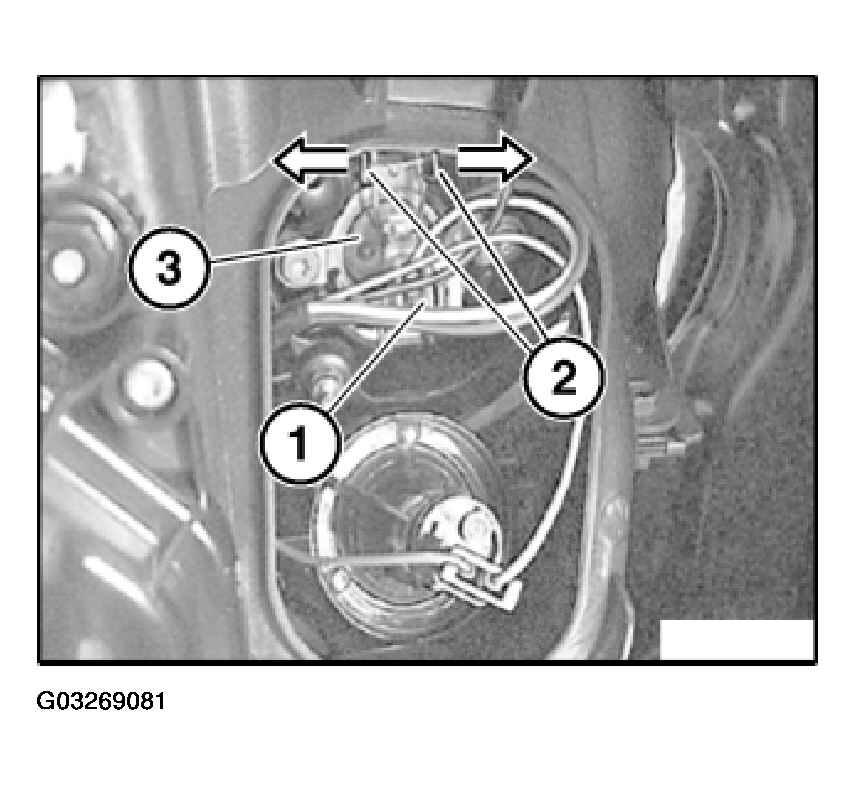

Fig 4: Locating Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .
