63 10 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim. Refer to 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (FROM 10/2003) OR 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (UP TO 10/2003) .
Observe test preconditions for adjusting headlights. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

Up To 10/2003:

Carry out height adjustment of fog lamp at adjusting screw (1).

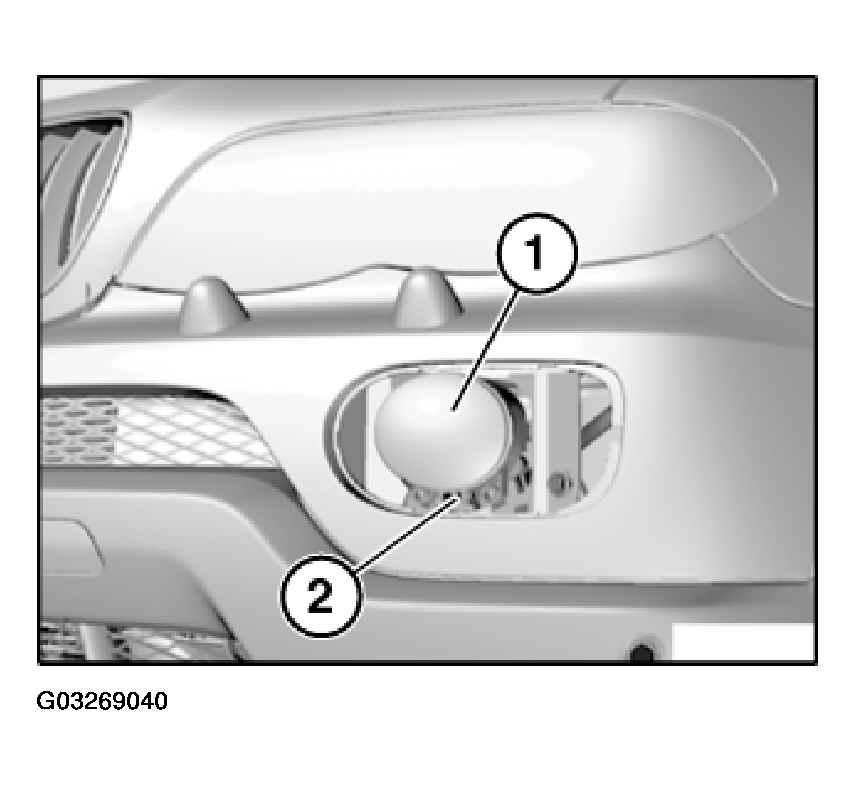

Fig 1: Locating Fog Lamp Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

Carry out height adjustment of fog lamp (1) at adjusting screw (2).

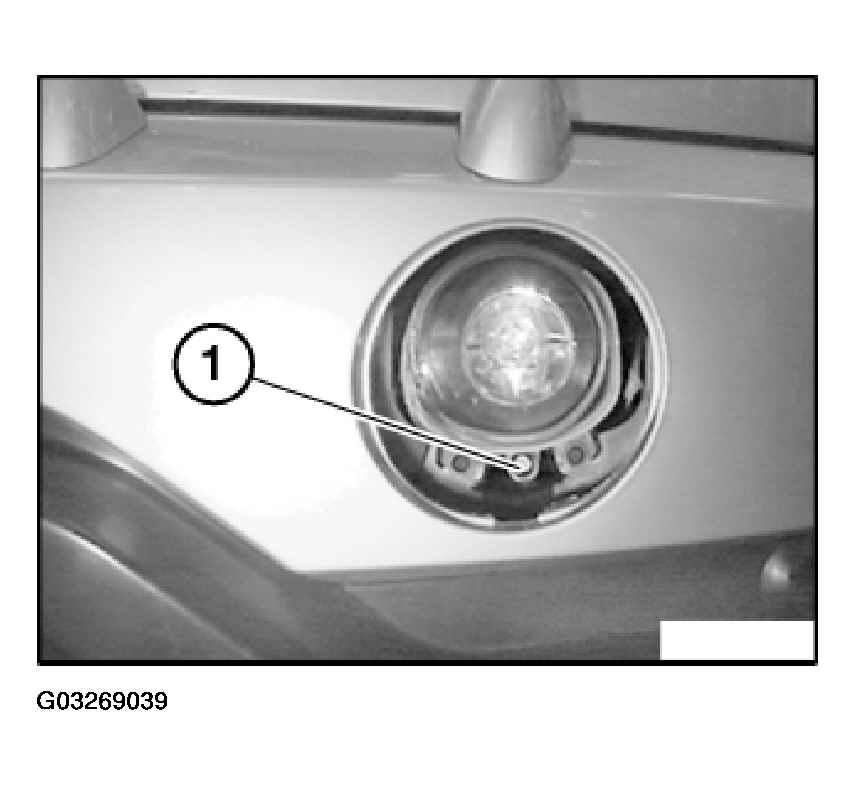

Fig 2: Identifying Fog Lamp Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
