63 31 150 Removing and installing/replacing glovebox light
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

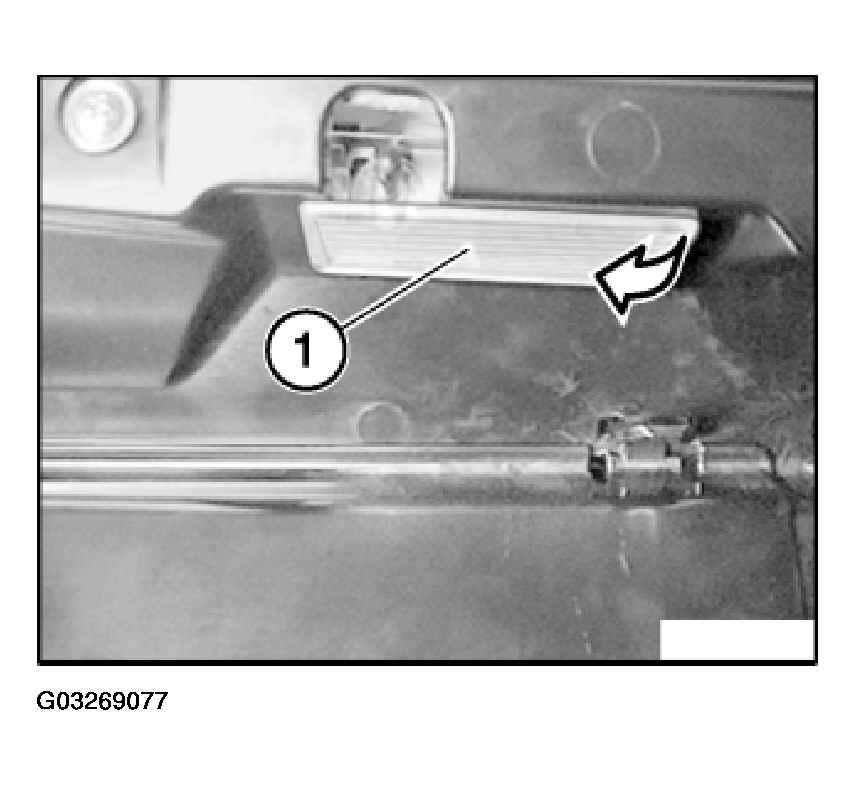

Lever out glovebox light (1) in direction of arrow.
Disconnect plug connection and remove glovebox light (1).
Replacement:
If necessary, remove bulb.
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .
