63 31 023 Removing and installing/replacing footwell light (on floor trim panel, rear)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

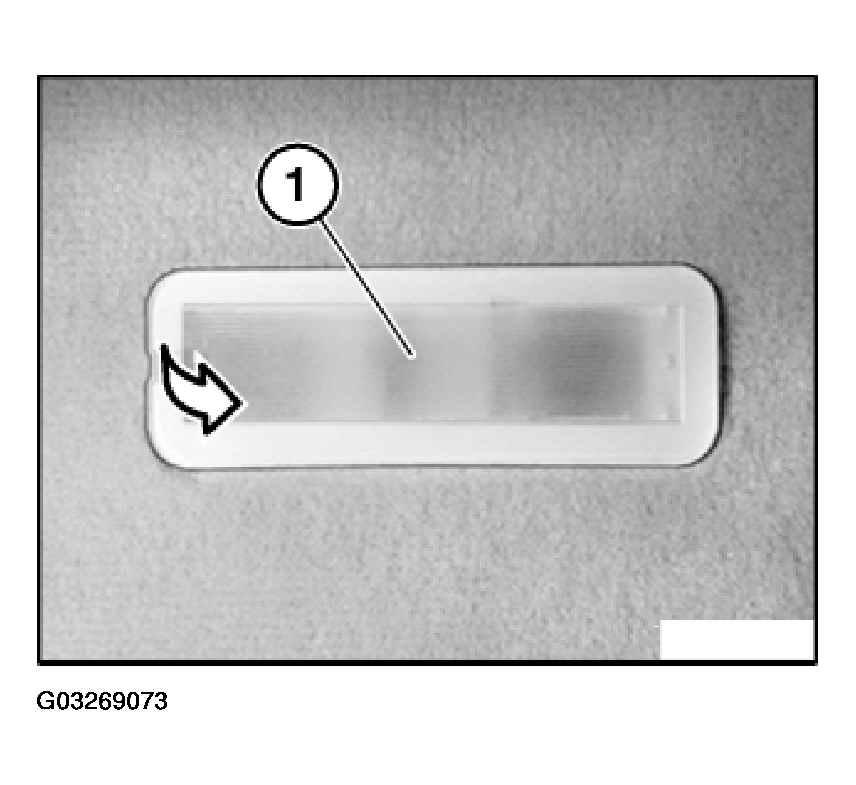

Lever out lens cover (1) on opening in direction of arrow.

Fig 1: Locating Footwell Light Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out bulb (1).

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb. Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - X5 (4.4I) N62 .

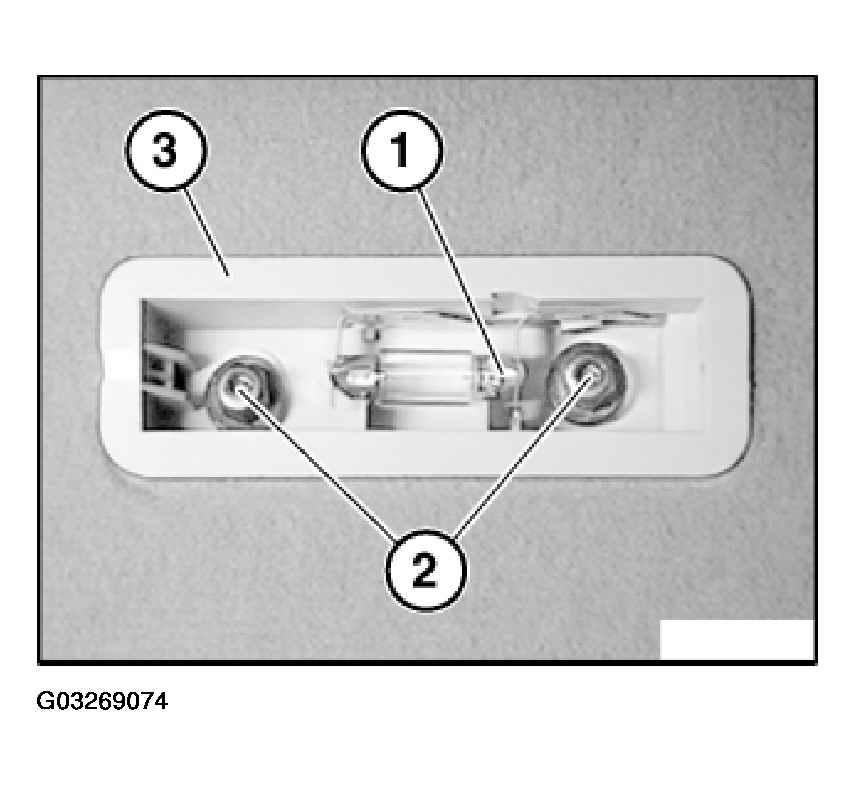

Release nuts (2) and remove footwell light (3).

Disconnect plug connection.

Fig 2: Releasing Nuts And Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
