63 12 895 Replacing drive for left adaptive headlight

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove headlight (adaptive headlight). Refer to 63 12 015 REMOVING AND INSTALLING LEFT HEADLIGHT (ADAPTIVE HEADLIGHT) .

Release screws (1).

Remove drive for adaptive headlight (2) from xenon headlight (3).

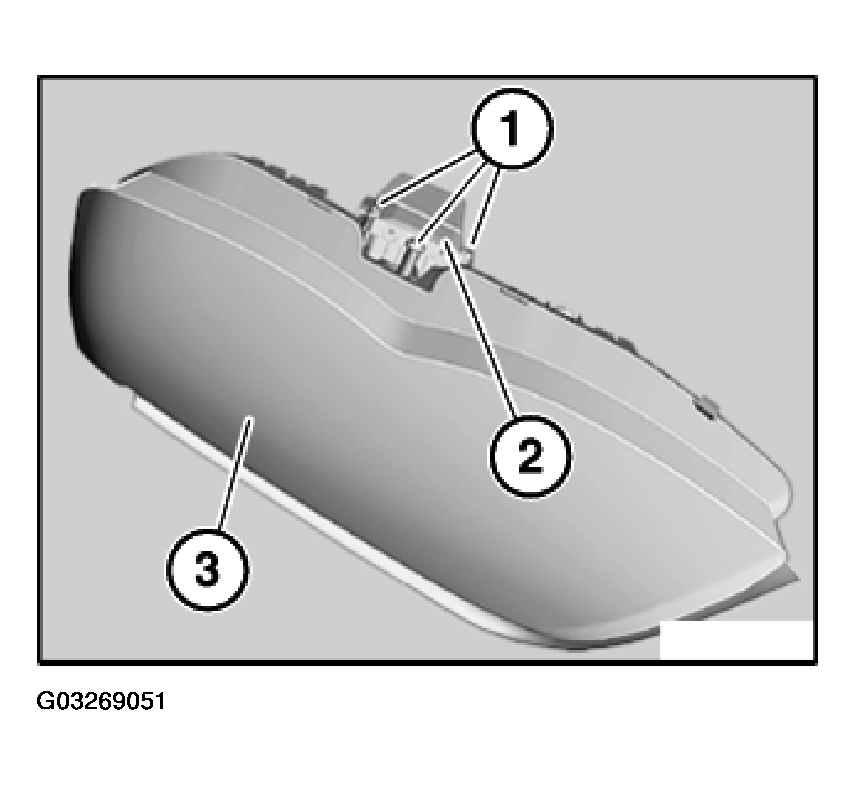

Fig 1: Removing Drive For Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
