63 12 870 Replacing ignition unit for left xenon headlight (from 10/2003)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

M54 only: Remove suction filter housing.

N62 only:

Release screws (1).

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

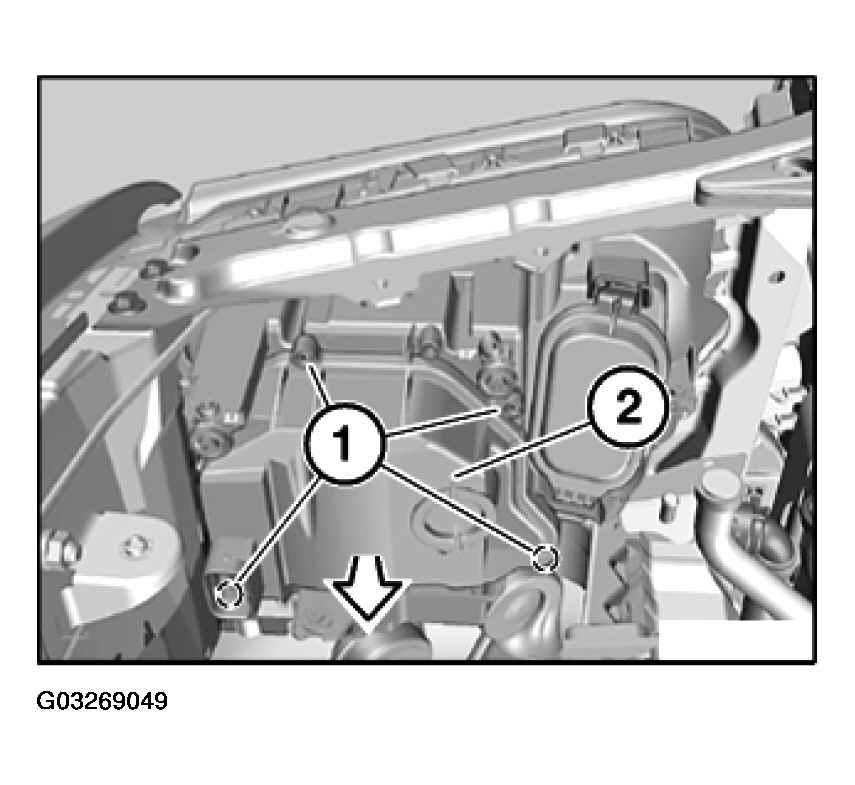

Fig 1: Removing Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove cover (2) in direction of arrow.

Installation:

Make sure seal of cover (2) is correctly seated.

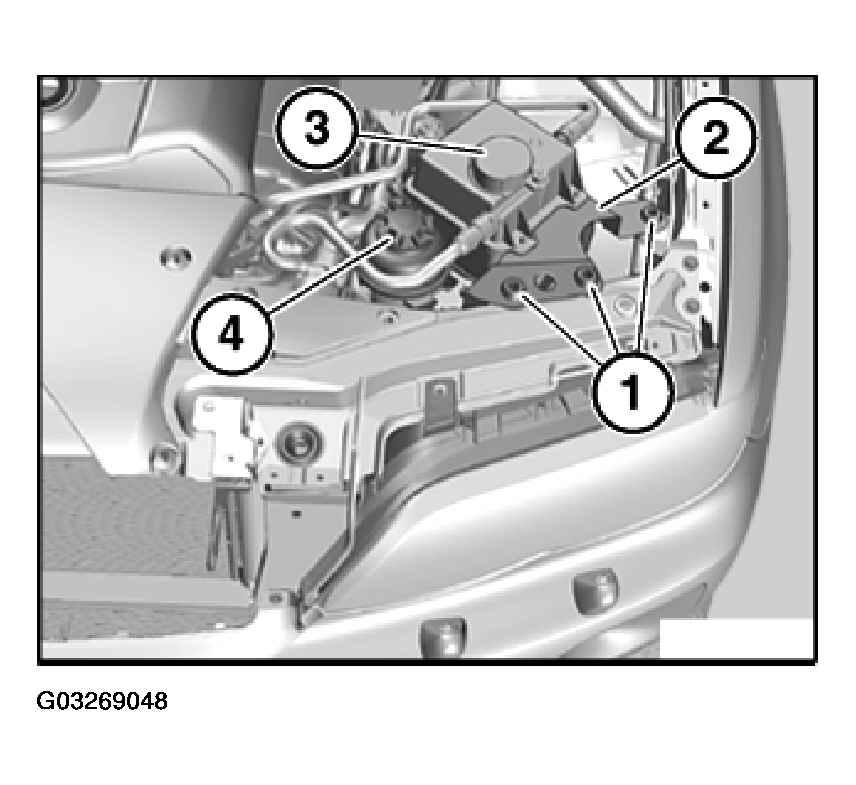

Fig 2: Removing Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) in direction of arrow.

Turn ignition unit for xenon headlight (2) in direction of arrow and remove.

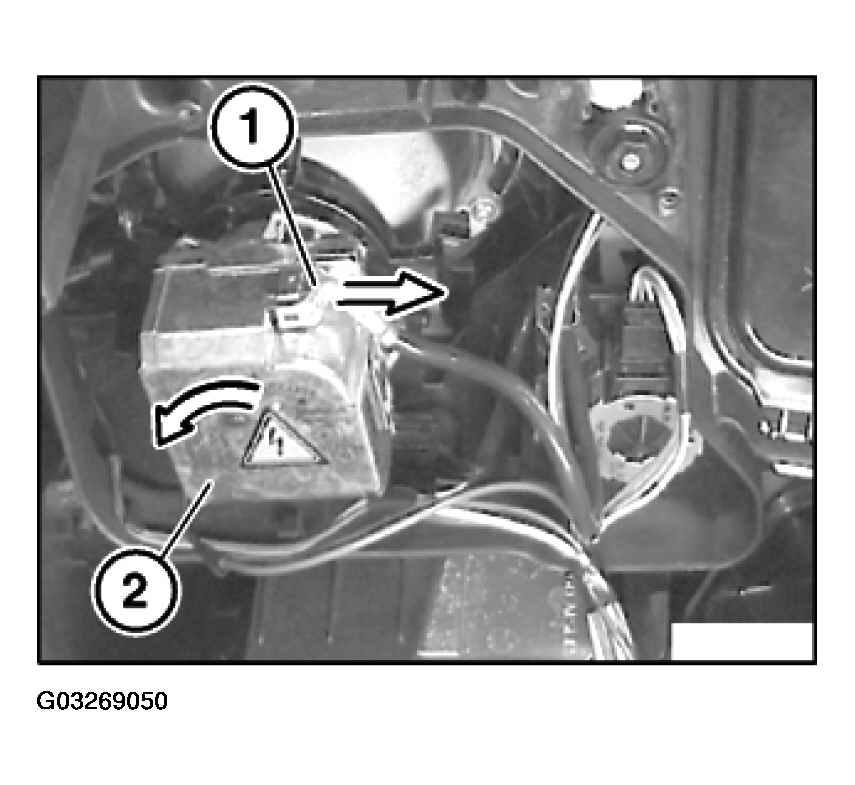

Fig 3: Removing Ignition Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
