61 35 795 Removing and installing (replacing) control unit for adaptive headlight

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right glovebox.

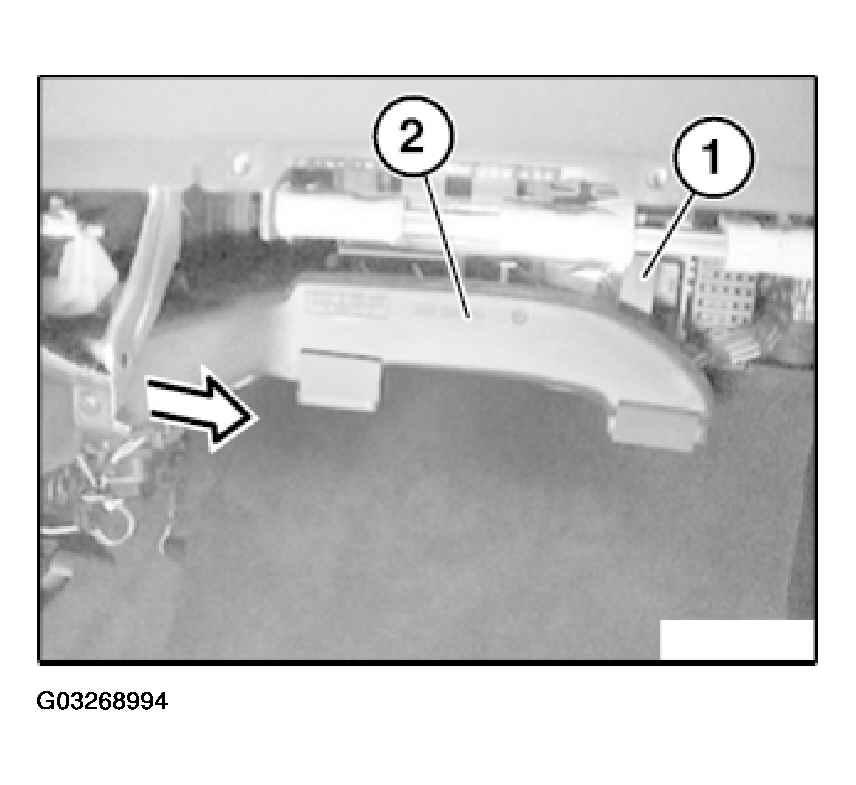

Unscrew bolt (1).

Detach air duct for right footwell (2) in direction of arrow.

Fig 1: Detaching Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

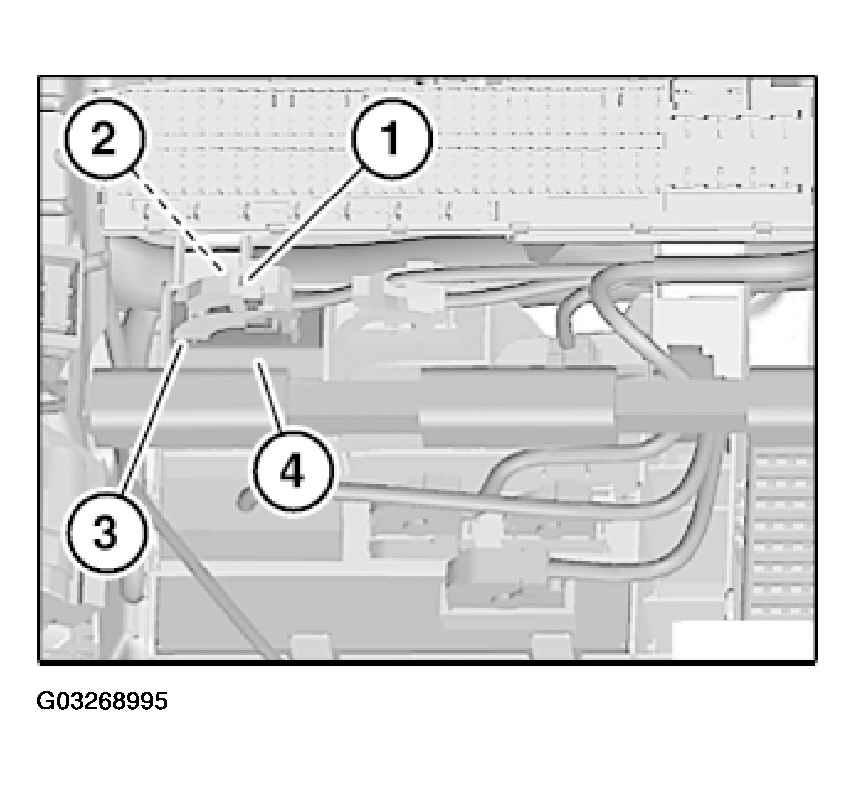

Unfasten plug connection (1) and disconnect.

Unlock catch (2) towards top.

Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.

Fig 2: Removing Unfasten Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
