54 10 160 Replacing left or right gaiter for glass slide/tilt sunroof
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Close glass slide/tilt sunroof.
IMPORTANT:
Risk of damage!

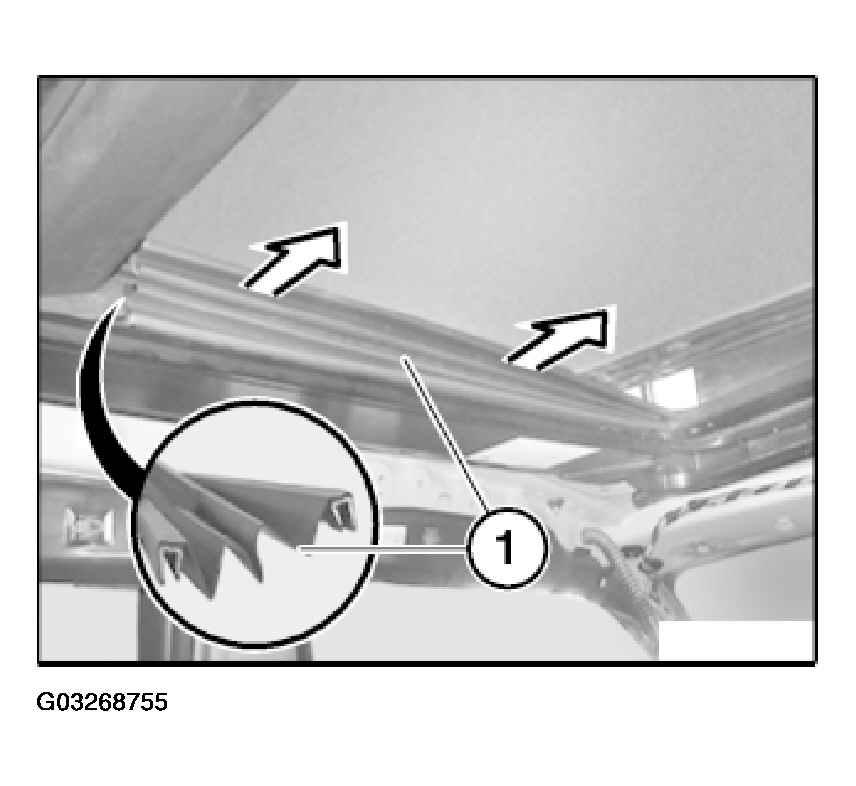

Carefully detach gaiter (1) from guide.
Installation:
Gaiter has an aluminium section inlay.
Check that aluminium section inlay is firmly seated on guide.
If necessary, replace faulty gaiter.
