54 12 265 Adjusting both drive cables for actuation of glass slide/tilt sunroof

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof,

refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

Remove drive unit with transmission for slide/tilt sunroof actuation.

Slide mechanism (1) into zero setting.

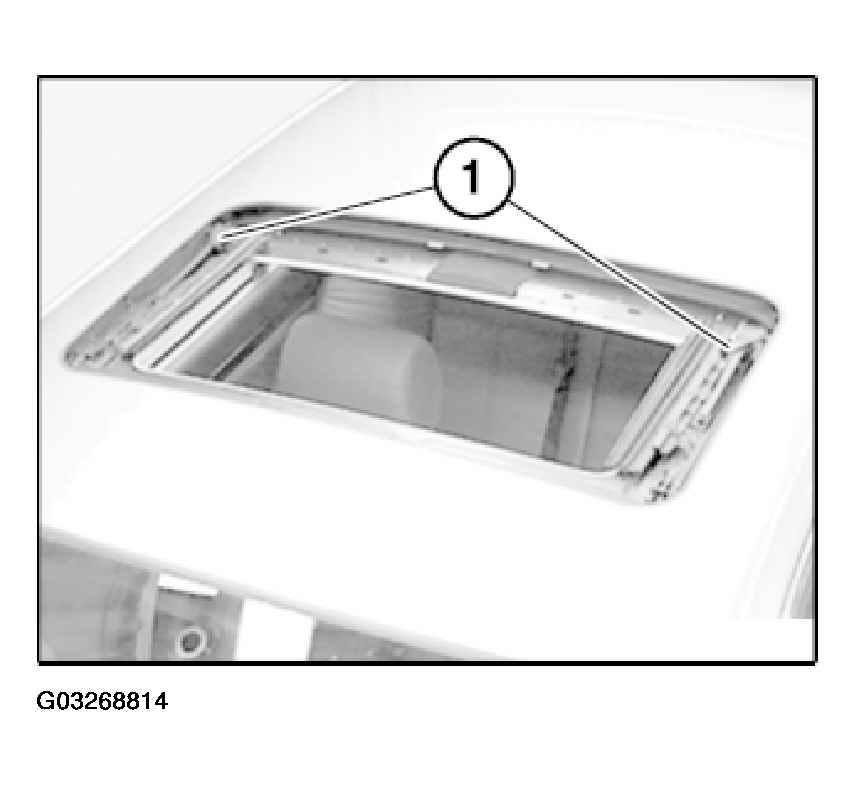

Fig 1: Identifying Mechanism In Zero Setting

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 54 3 170 left/right between the guides (1) in the lifting device (2).

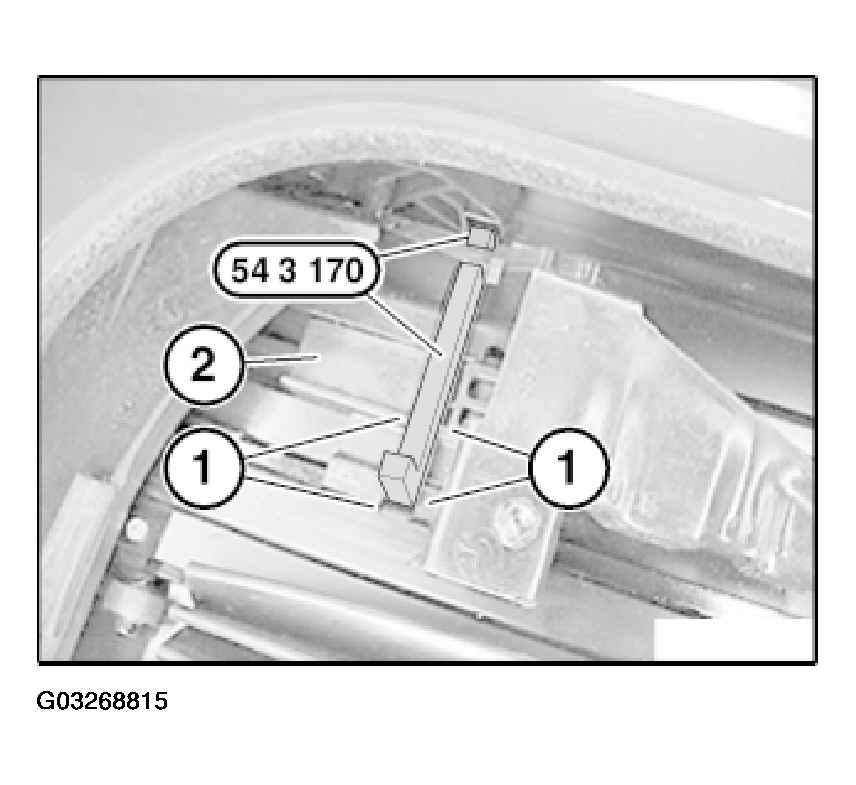

Fig 2: Inserting Special Tool Between Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Lift front of special tool 54 3 170 (1) slightly and insert in control gate (2) (both drive cables are now secured in their zero setting).

Install drive unit with transmission for slide/tilt sunroof actuation.

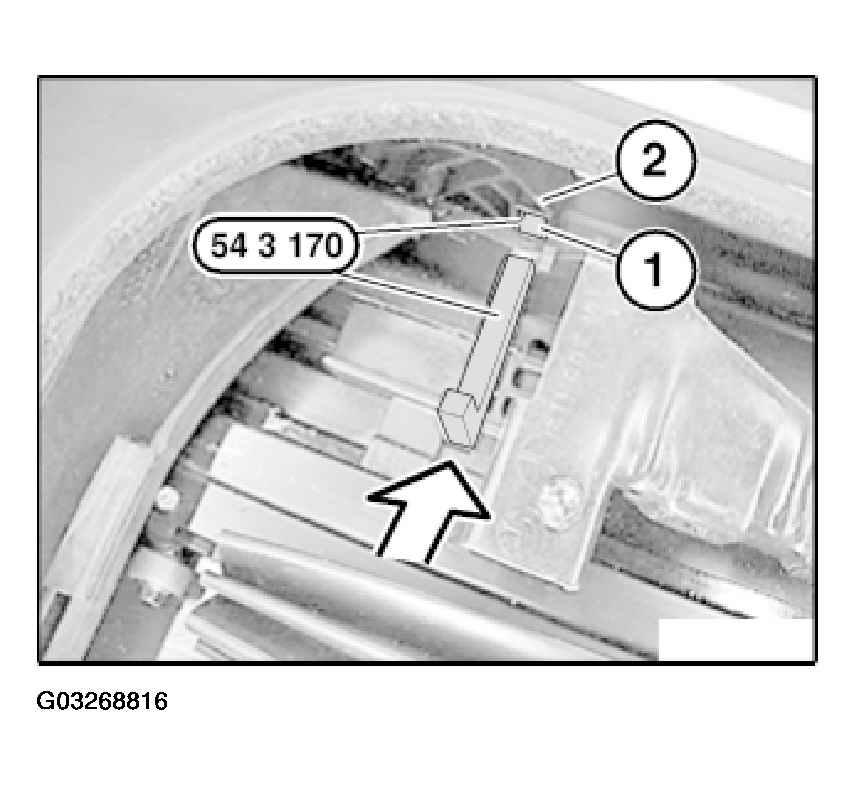

Fig 3: Installing Drive Unit With Transmission For Slide/Tilt Sunroof Actuation

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Remove special tool 54 3 170 left/right (risk of damage).

Check function.
