54 12 015 Replacing left or right rubber gaiters for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof cover, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

Move mechanism into lift position.

Unscrew bolt (1). Turn rubber gaiter (2) inwards and slide support (3) for rubber gaiter backwards.

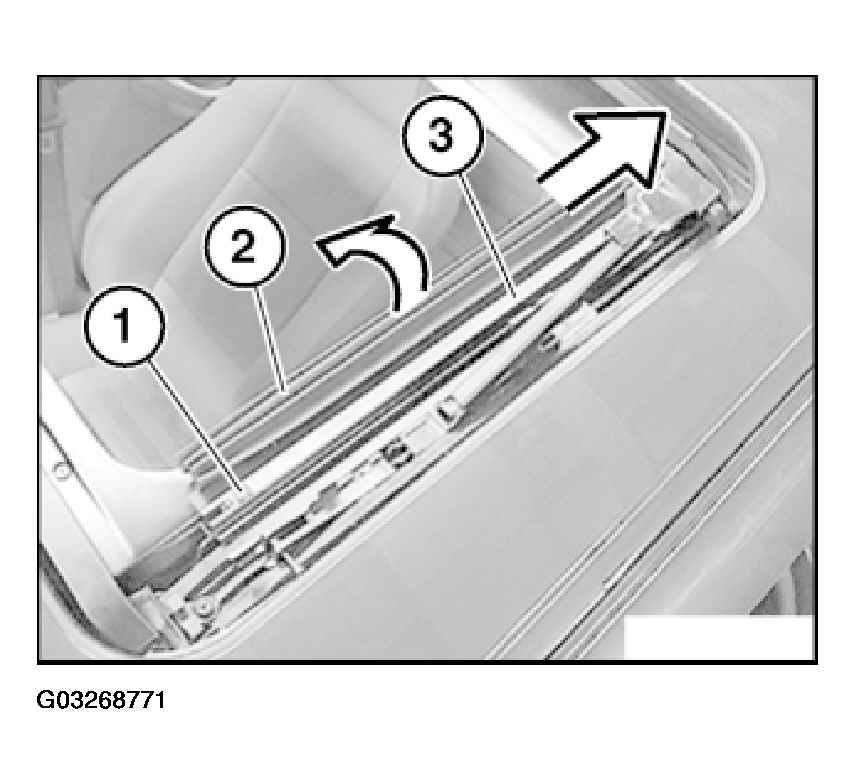

Fig 1: Turning Rubber Gaiter Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

Slide support (1) for rubber gaiter out of guide (2) and pull forwards to remove.

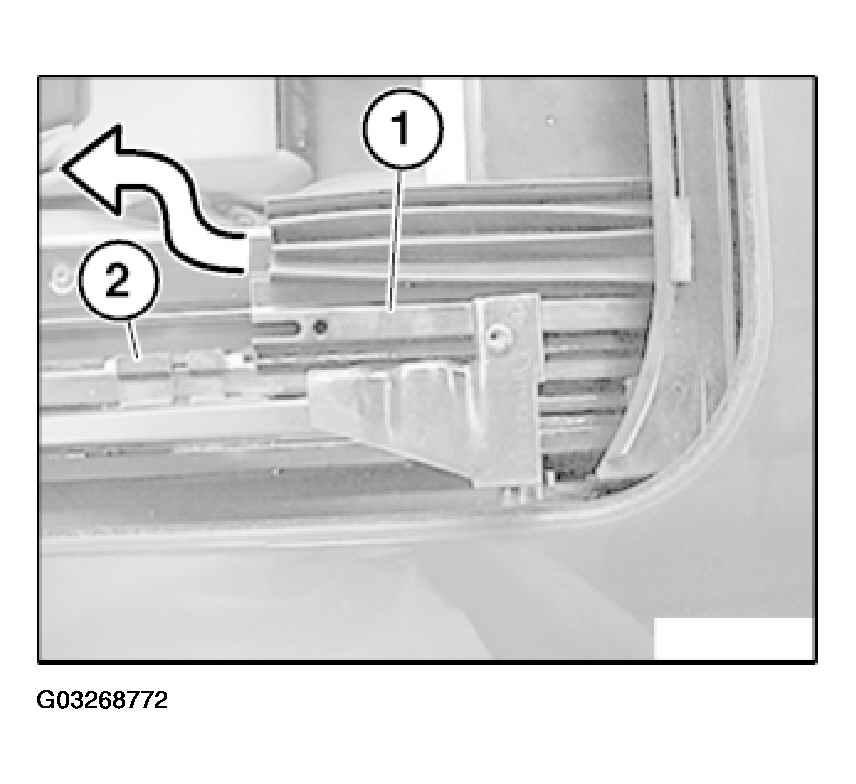

Fig 2: Sliding Support For Rubber Gaiter Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Pull rubber gaiter (1) out of support (2) (if necessary, fold over the crimped area).

Installation:

Check function of contact pressure roller (3).
Check function.

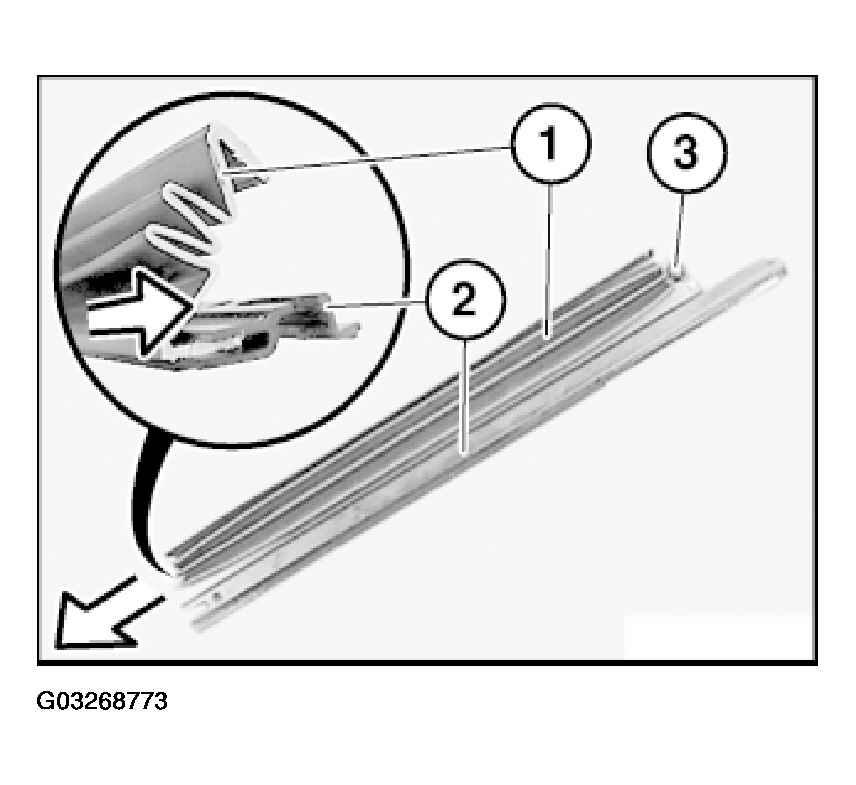

Fig 3: Pulling Rubber Gaiter Out Of Support
Courtesy of BMW OF NORTH AMERICA, INC.
