52 26 400 Replacing seat cover for rear seat (through-loading system)

1. Remove rear seat, refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING SYSTEM) .

Feed tightening strap (1) out of wire (2).

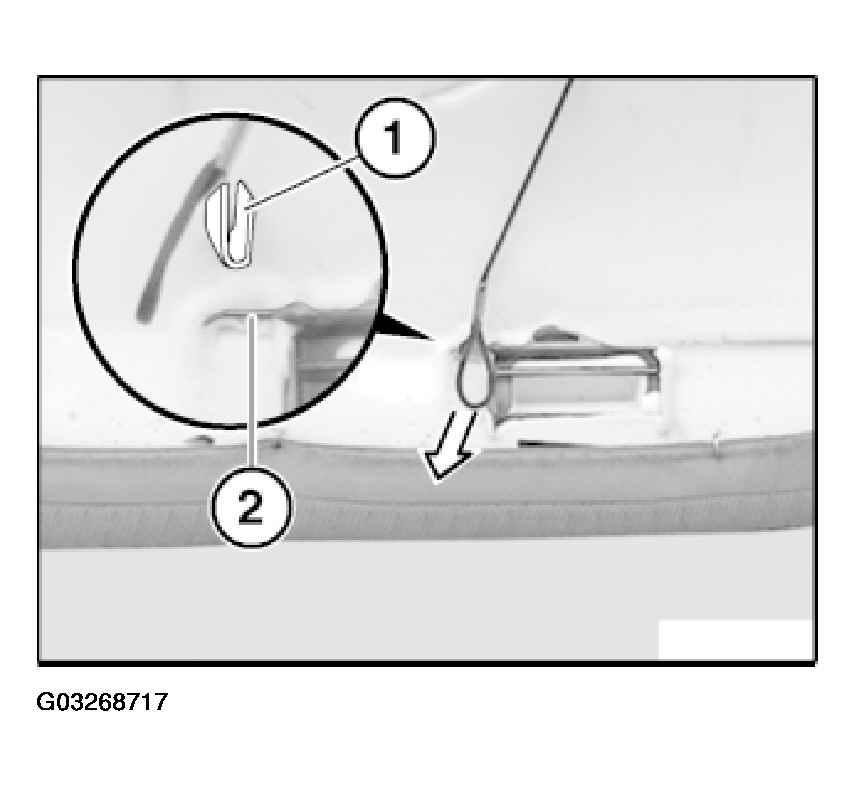

Fig 1: Feeding Tightening Strap Out Of Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of clips.

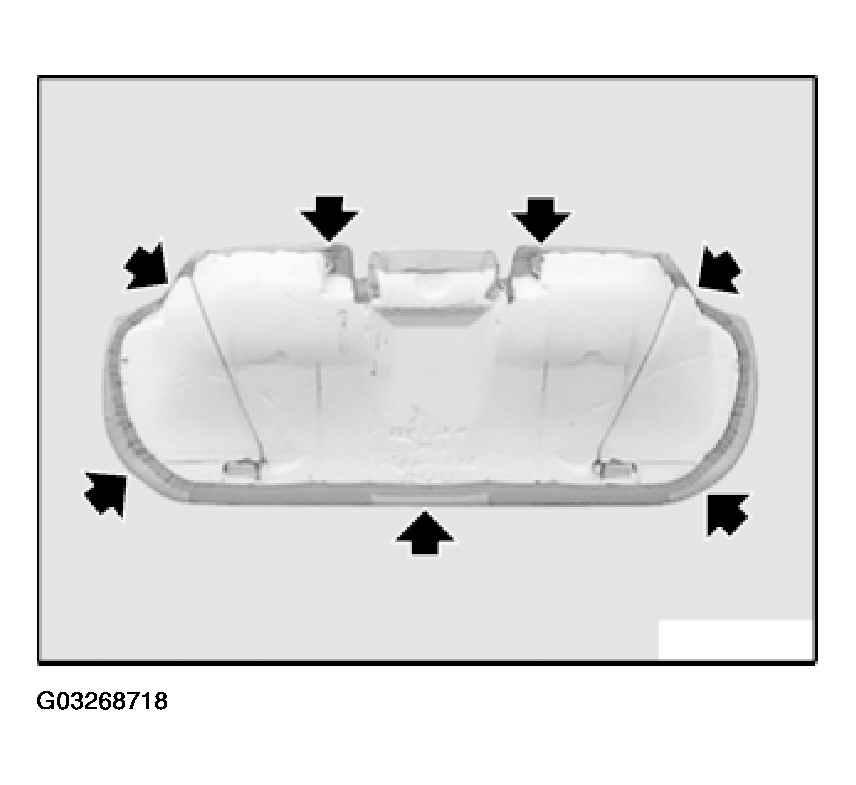

Fig 2: Identifying Position Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through or bend open all clips.

If possible, feed cover out of wire loop.

Carefully pull off cover and in so doing cut through or bend open clips of trim wires.

Remove all remnants of clips from cover and support.

Installation:

1. Lock new clips by bending with special tool 52 0 050. If necessary, surround existing wire in foam seat with clips.
2. If possible, feed trim wires into new cover.

Special tools required:

• 52 0 050

Remove rear seat. Refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING SYSTEM) .

• Release tension cable (1).

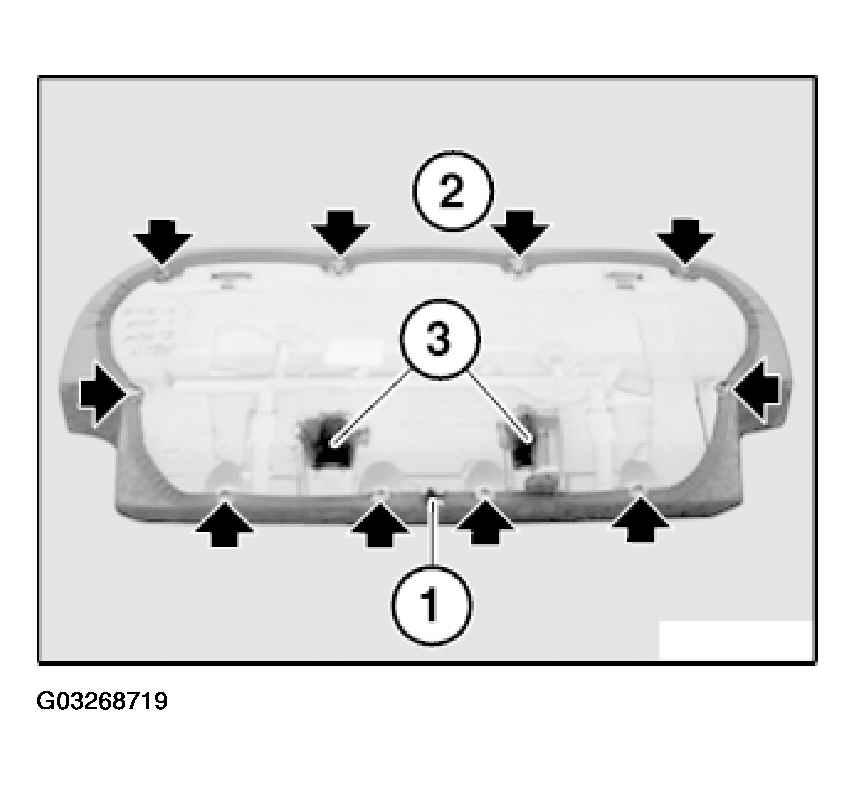

Fig 1: Detaching Cover
Courtesy of BMW OF NORTH AMERICA, INC.
• Lever tension cable out of wire eyes (2).
• Cut through all retainers (3).
• Carefully detach cover and in so doing cut through retainers of trim wires.

• Remove all remnants of clips from cover and support.

Installation:

1. Fit new retainers with special tool 52 0 050. In so doing, enclose existing wire in foam seat with retainer if necessary.
2. Feed trim wires into new cover.
