52 26 390 Removing And Installing/Replacing Rear Head Restraints (Through-Loading System)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

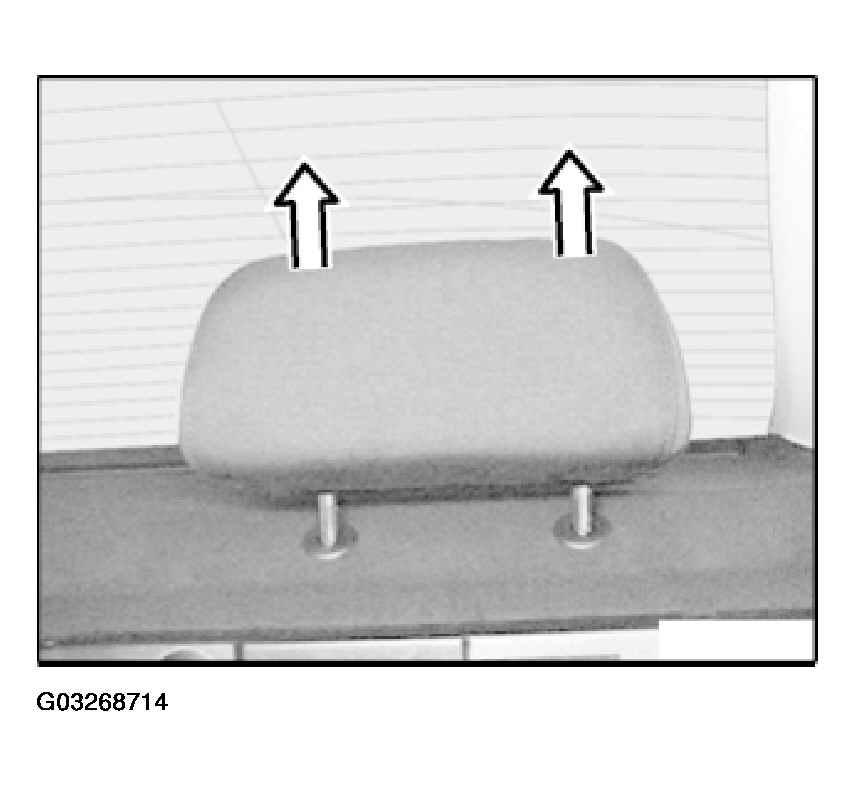

Move head restraint up as far as possible.

Forcefully pull out head restraint or detach by hitting firmly on one side from below.

Fig 1: Pulling Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

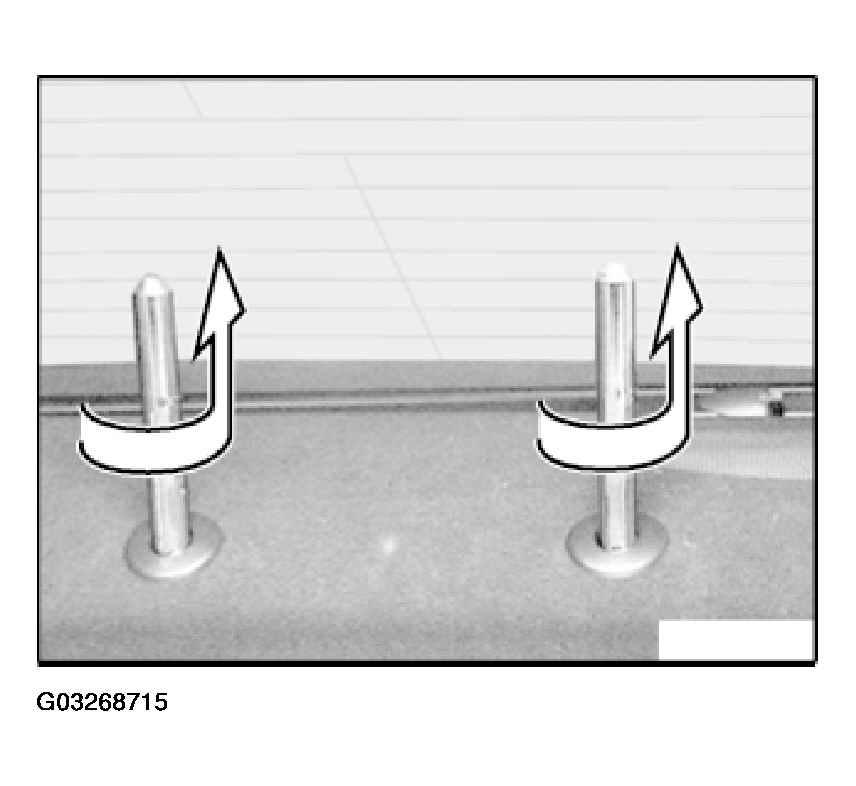

Pull out guide rods by twisting them back and forth.

Fig 2: Pulling Out Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage rear window.

Installation:

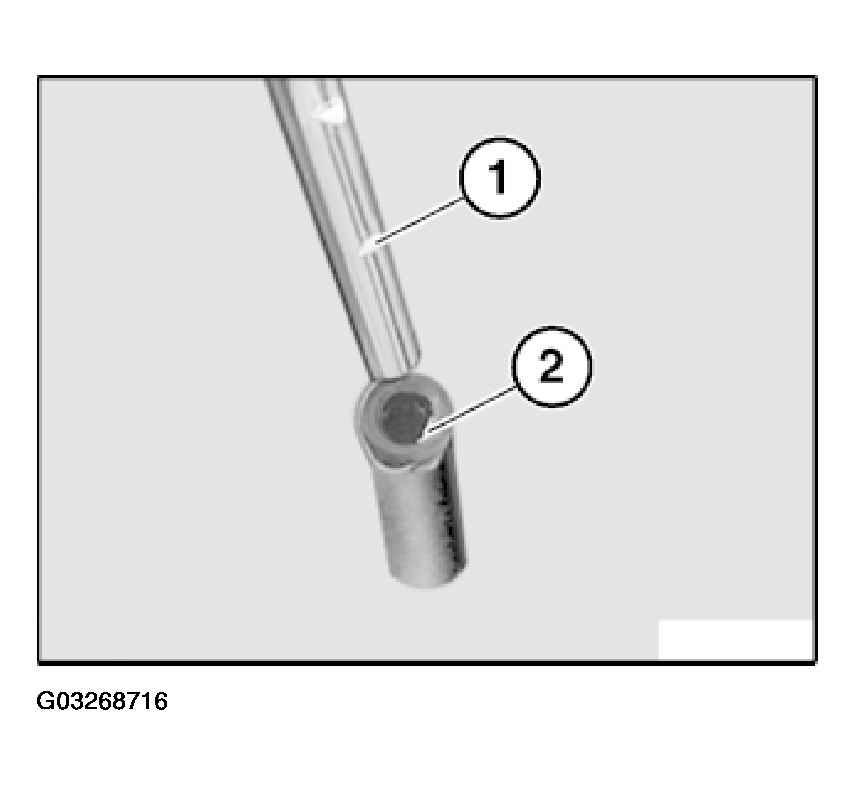

Notches (1) on guide rods must point in direction of catch spring (2).

Fig 3: Identifying Notches On Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.
