52 13... Removing and installing/replacing seat pan and flexmat (normal/manual), left or right

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with support, refer to 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Release left screw (1) and slacken right screw only.

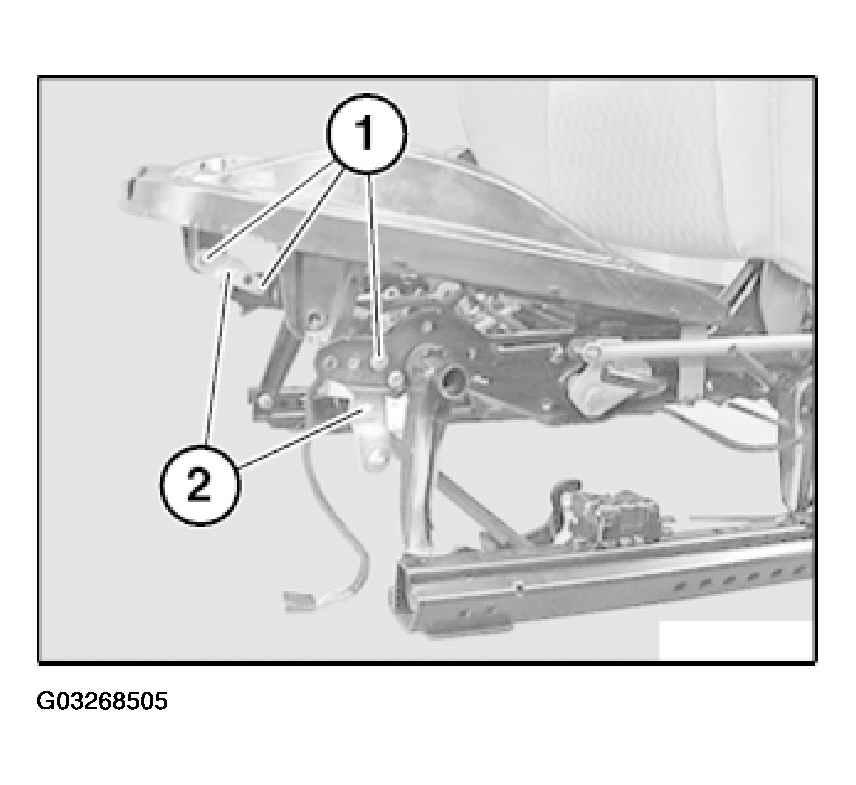

Fig 1: Removing Left Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release left/right screws (3).

Slacken left/right screws (4) only.

Remove left retaining plate (2) downwards.

Installation:

Tightening torque, 52 10 9AZ. Refer to SEATS - TIGHTENING TORQUES .

Press seat pan (1) upwards, thereby relieving tension on flexmat.

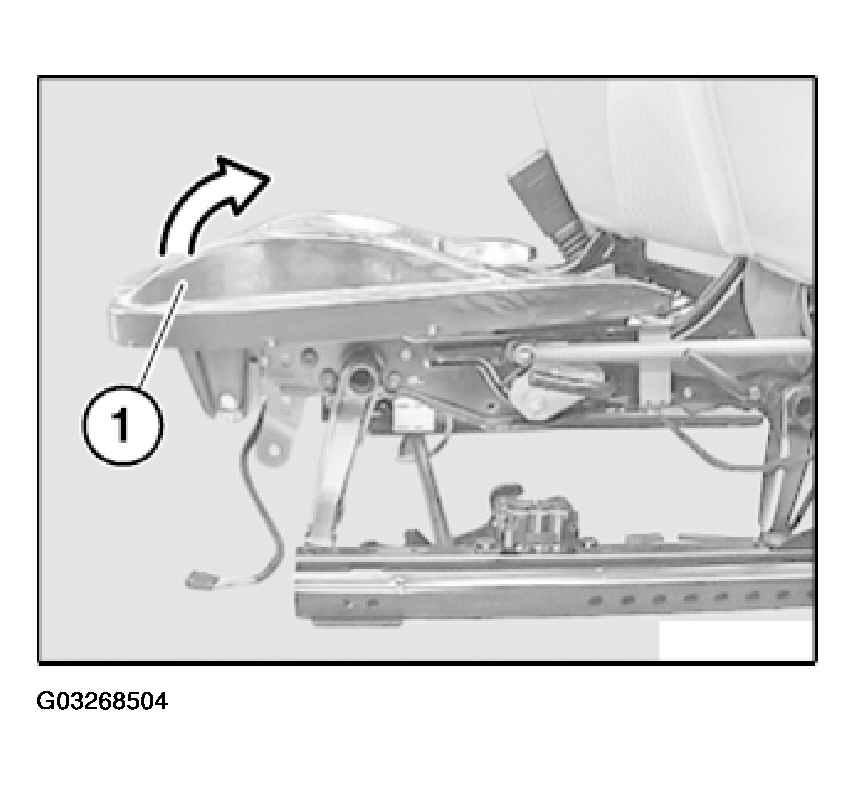

Fig 2: Relieving Tension On Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove retaining plates (2).

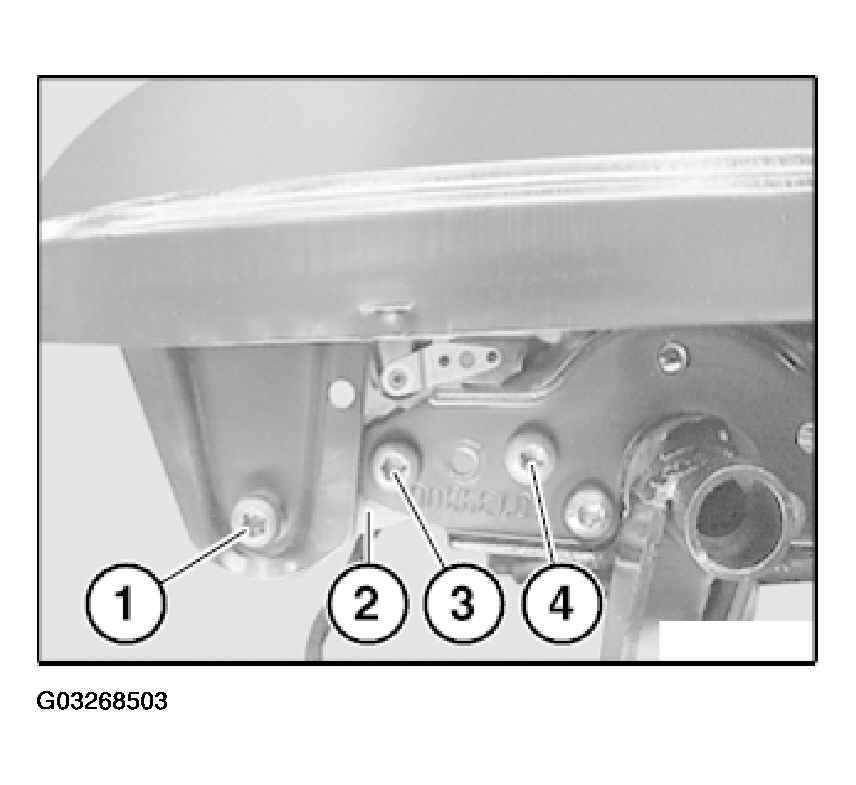

Fig 3: Removing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 52 10 9AZ. Refer to SEATS - TIGHTENING TORQUES .

Unhook cable (1) from holder (2).

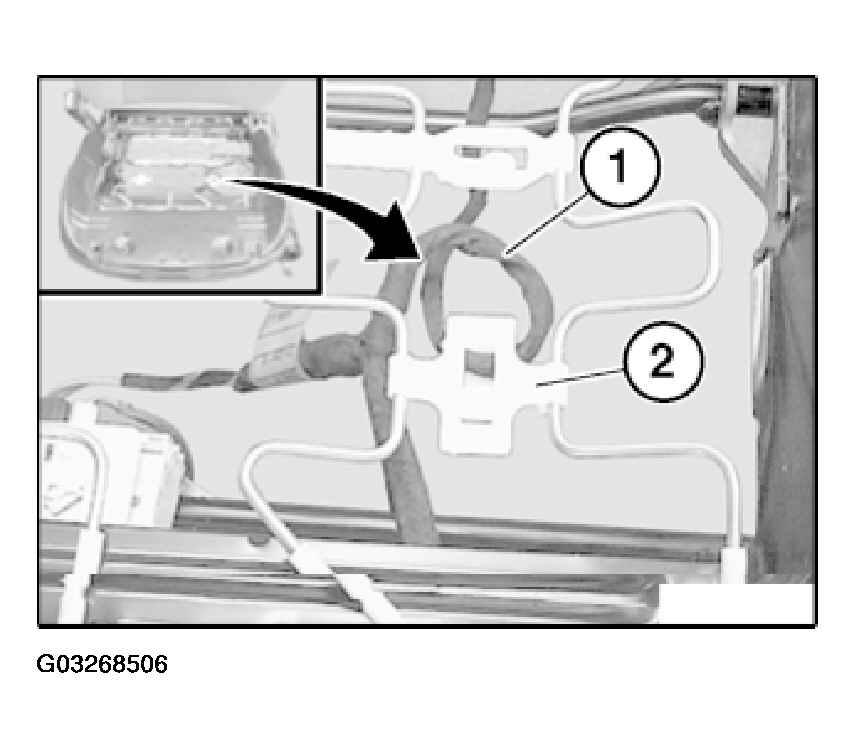

Fig 4: Unhooking Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn seat pan (1) upwards.

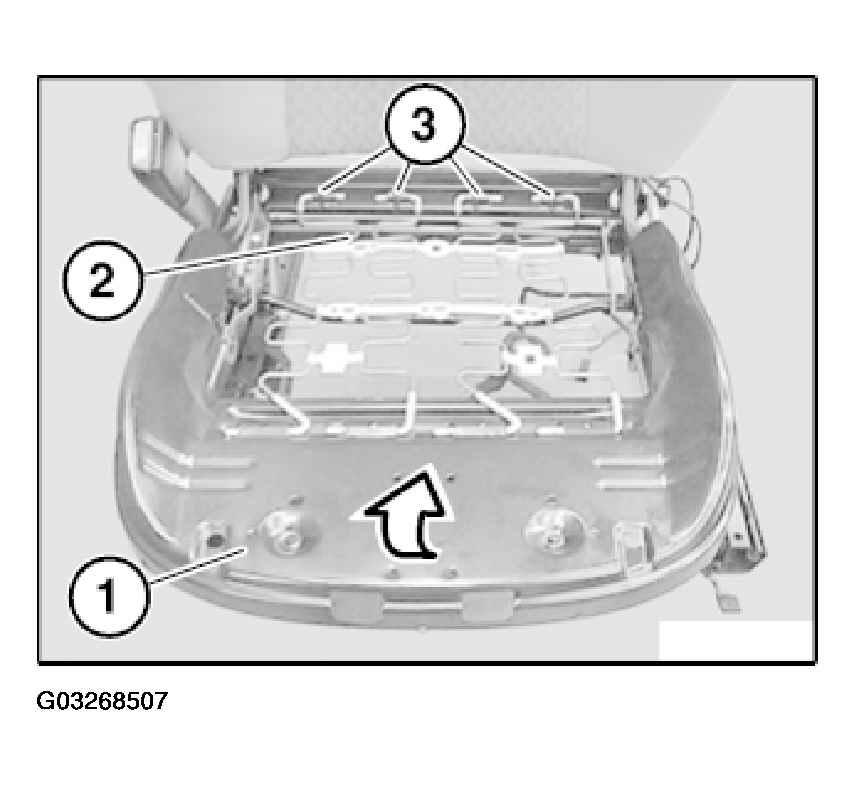

Fig 5: Detaching Flexmat At Rear From Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (2) at rear from mounts (3).

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

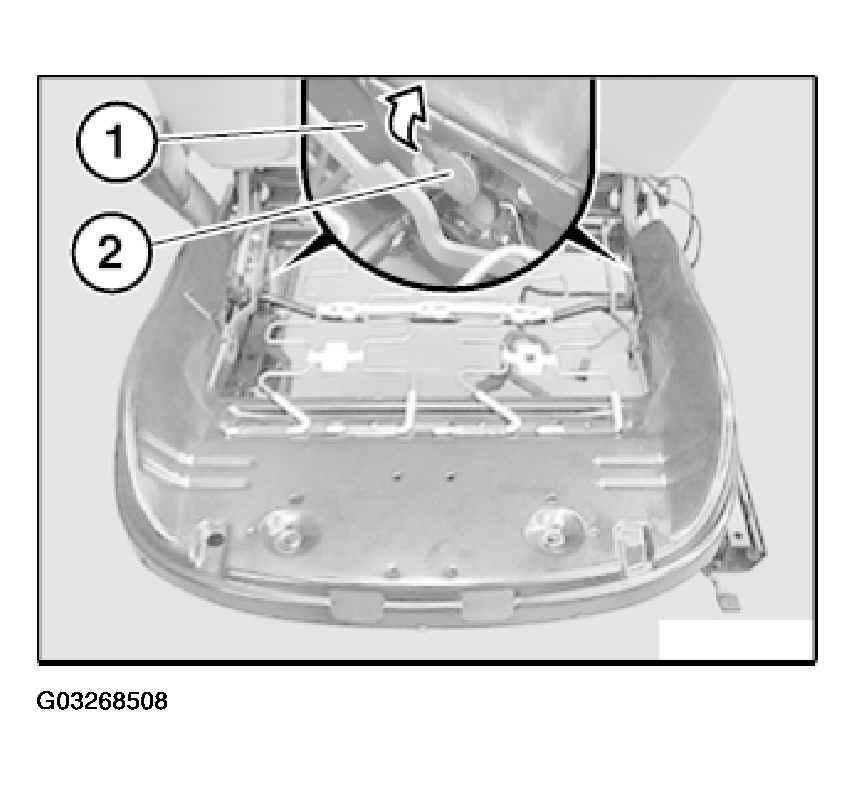

Fig 6: Removing Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (1) from mounts (2) on seat pan (3).

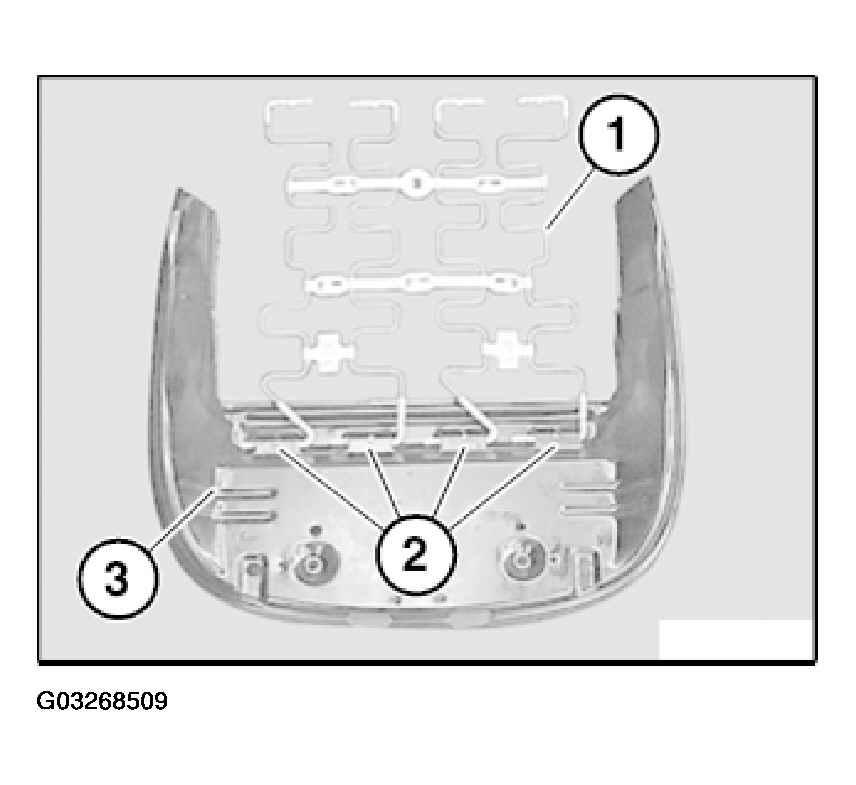

Fig 7: Detaching Flexmat From Mounts On Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.
