52 13 040 Removing and installing / replacing outer cover on left or right front seat back-rest (normal / manual)

Unscrew bolt (1).

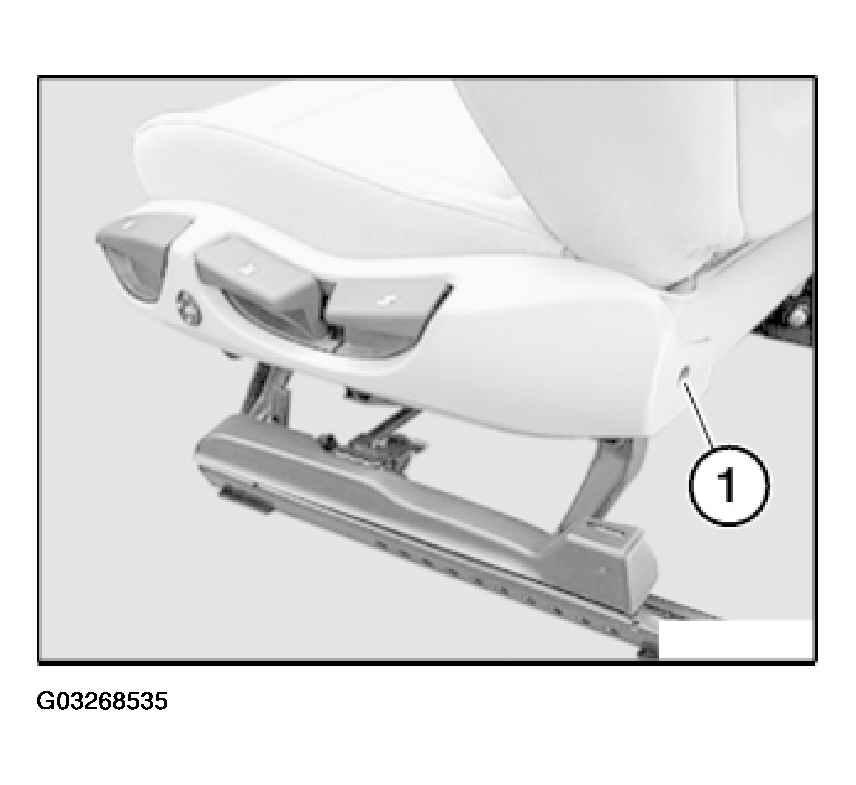

Fig 1: Locating Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out catches (1) at front/rear and tongue (2) at rear from cover (3) towards top and pull outwards a little.

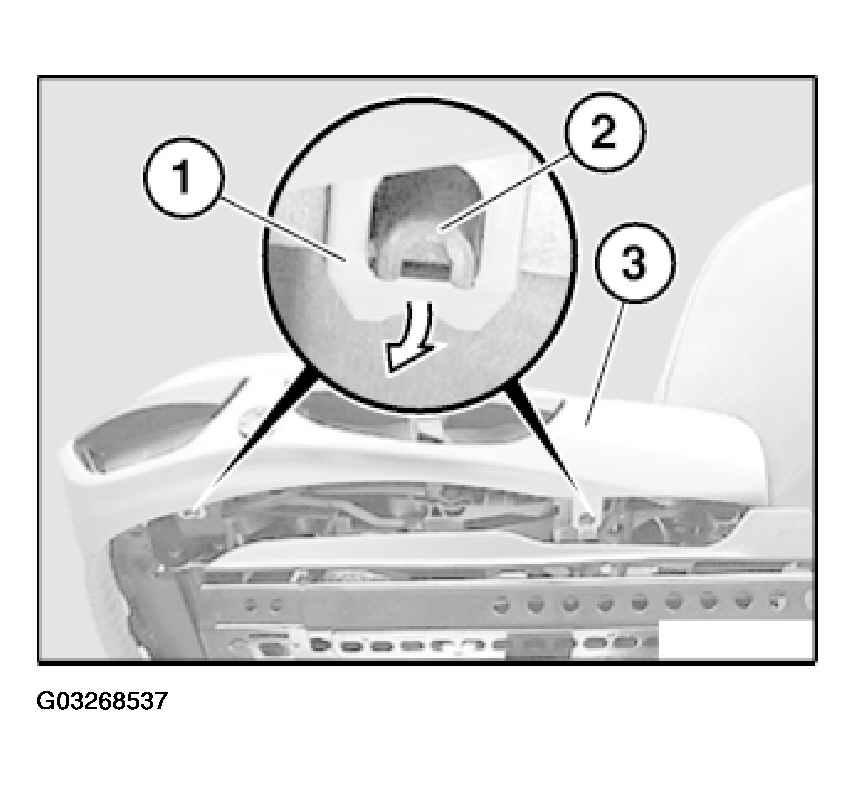

Fig 2: Locating Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Slide tongue (2) into mounts and snap into place.

Lever lugs (1) on cover (3) out of brackets (2).

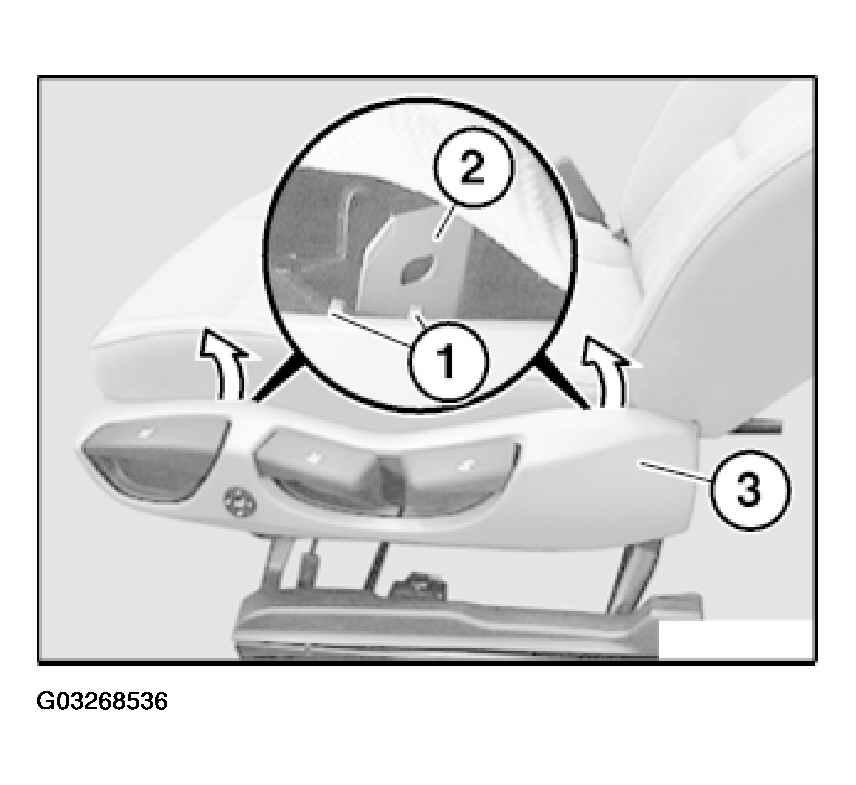

Fig 3: Removing Lugs Out Of Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

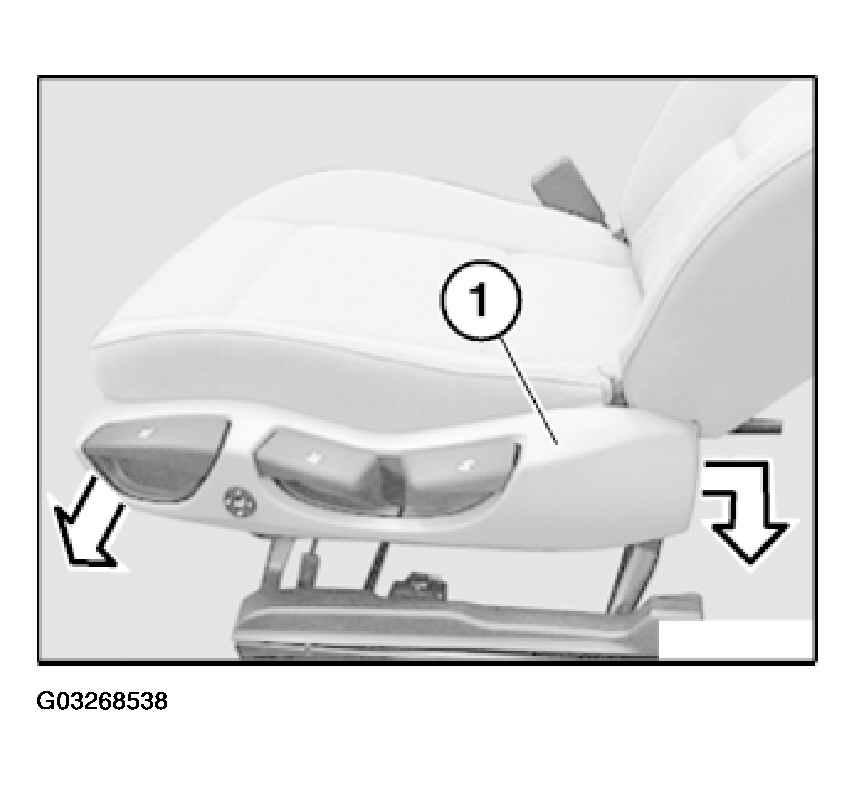

Fig 4: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, press down catches (1) on left/right and remove switch (2) from cover (3).

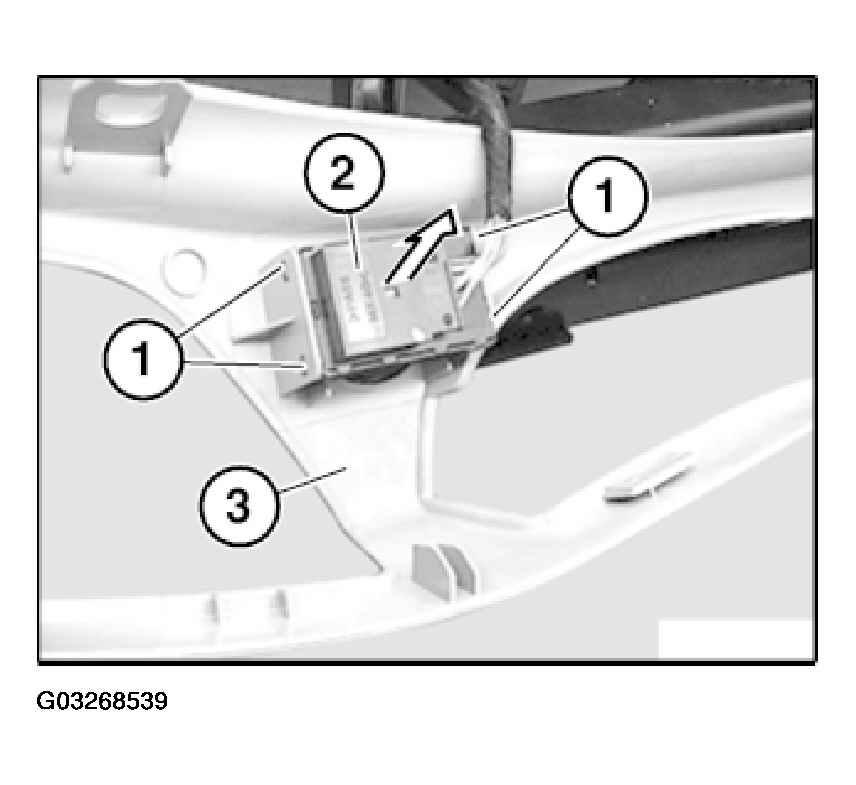

Fig 5: Removing Switch From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Following parts must not be damaged, replace cover (4) if necessary:

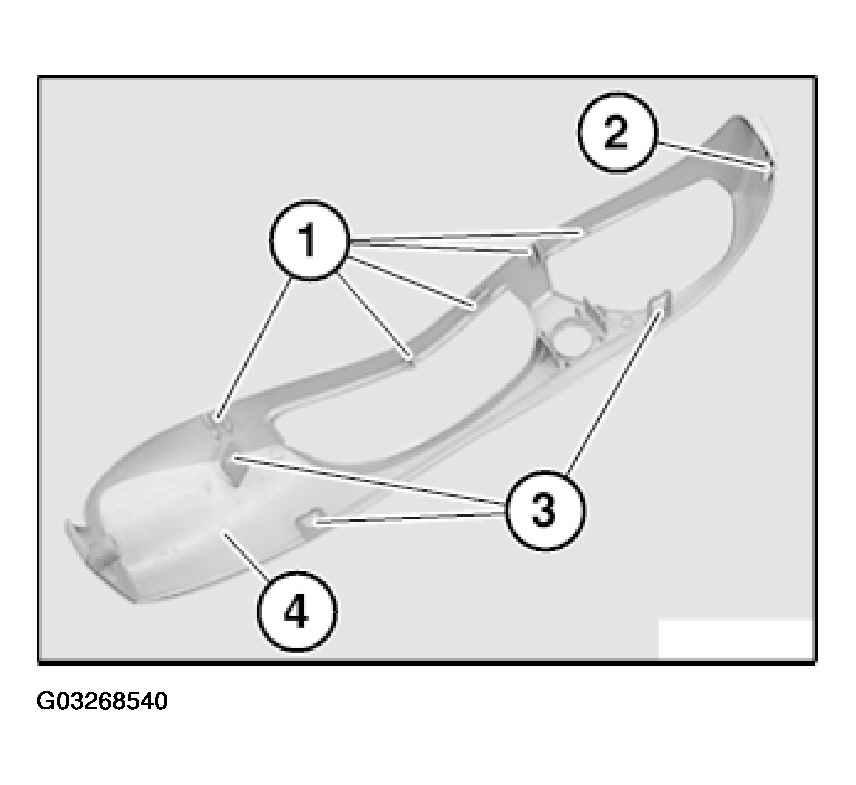

Fig 6: Identifying Cover Components

Courtesy of BMW OF NORTH AMERICA, INC.

1. Catches, top
2. Guide, front
3. Lugs, bottom
