51 13 065 Removing and installing or replacing finisher on left or right headlight housing

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open hood.

Unclip clip (2) on trim (1) on inside.

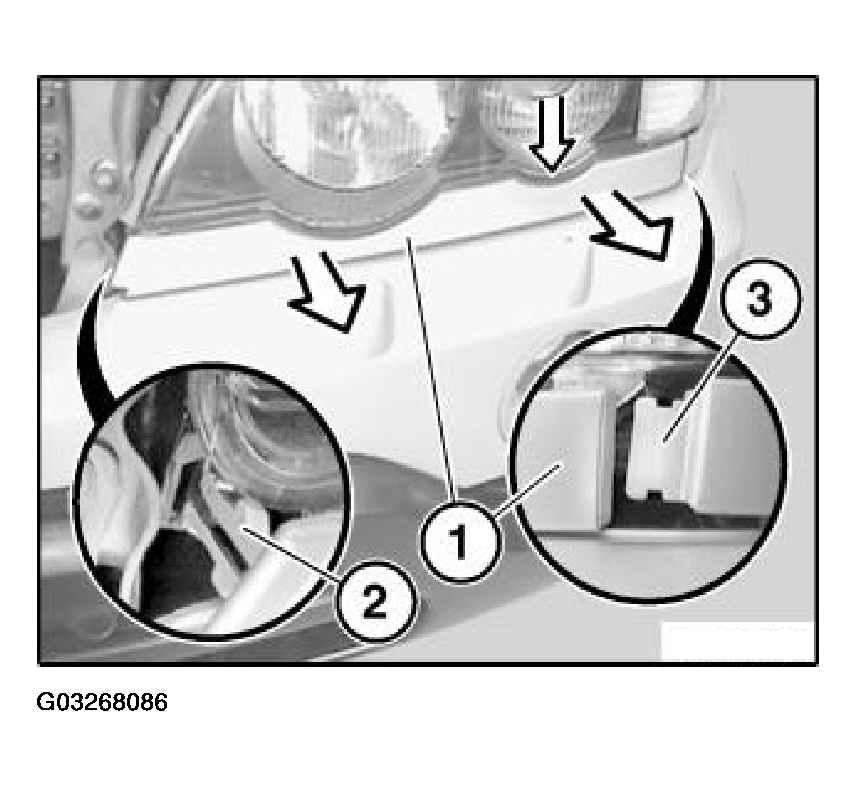

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Press trim (1) downwards out of holder.

Feed trim (1) out of hook (3) and remove.

Installation:

Mount (2) and hooks (3) and (4) of trim (1) must not be damaged.

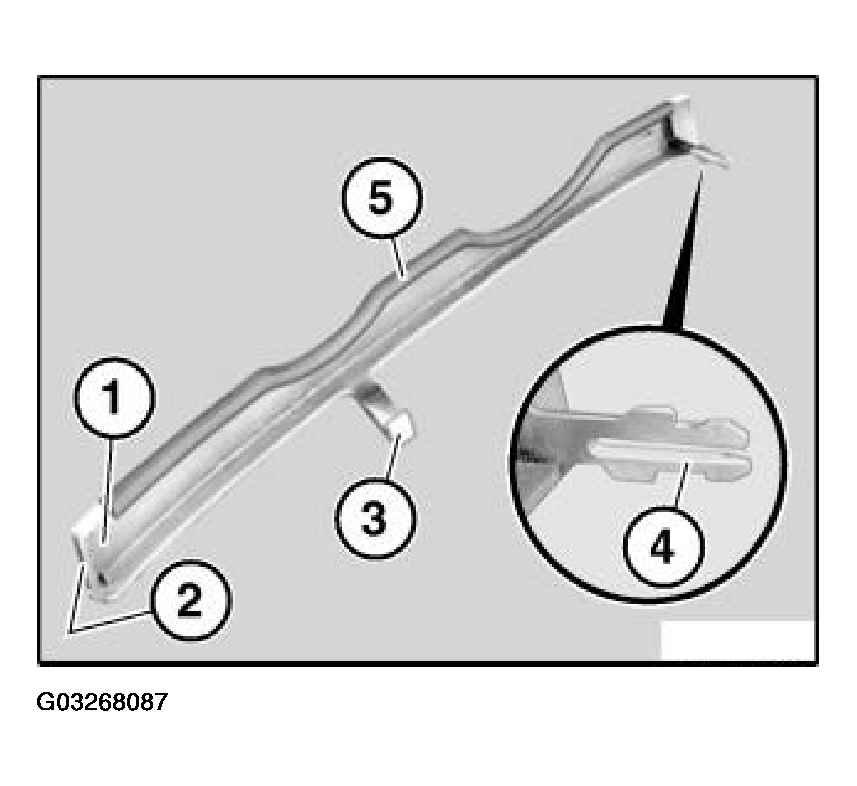

Fig 2: Identifying Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Seal (5) must be correctly seated.
