51 43 148 Removing And Installing Or Replacing Trim On Left Or Right Door Pillar (Top)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat upwards.

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

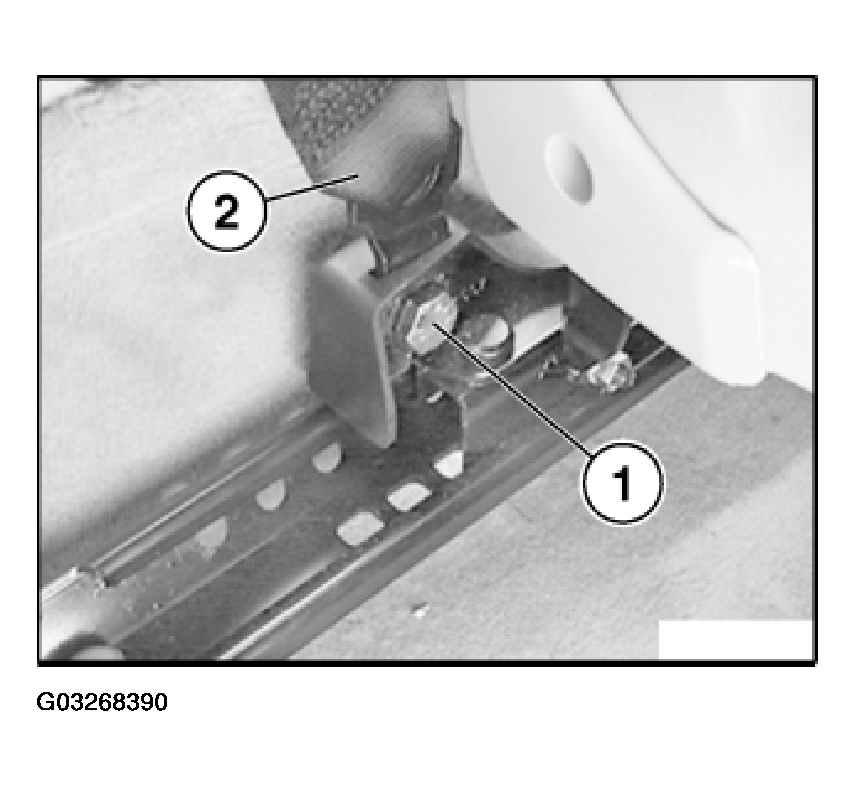

Fig 1: Releasing Seatbelt Screw On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 39 Nm.

Subsequent work is described in:

Removing panel for door pillar (bottom). Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
