51 42 018 Replacing speaker frame on rear left or right door trim panel

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Release plastic welded joints (1) and remove speaker frame (2).

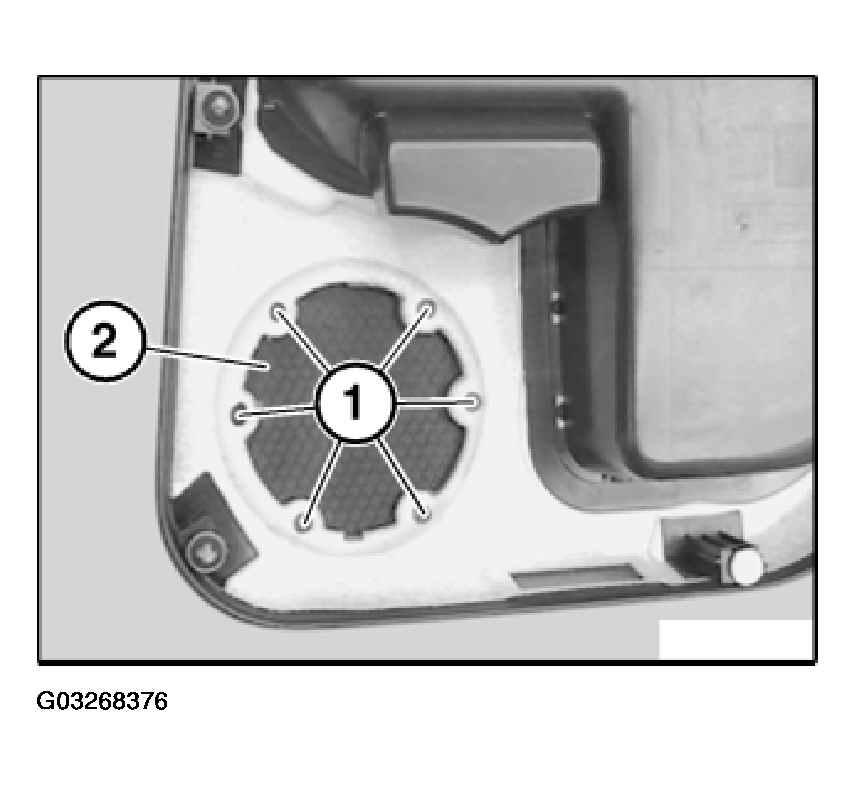

Fig 1: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new speaker frame (1).

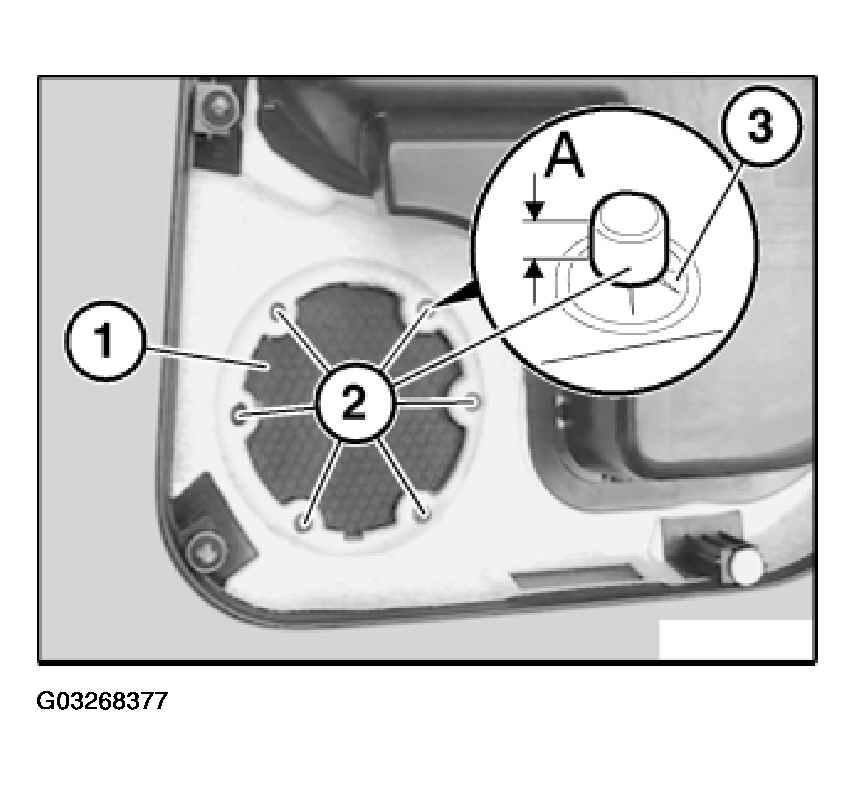

Fig 2: Installing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Push locking washers (3) onto plastic pins (2).
Shorten all plastic pins (2) down to measurement (A).
A 2 mm
