51 42 001 Replacing left or right rear door trim
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear door trim panel, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL
- Remove inside door opener, refer to 51 22 225 REMOVING AND INSTALLING/REPLACING INSIDE DOOR HANDLE OF REAR LEFT OR RIGHT DOOR
- Remove inside door handle, refer to 51 42 019 REMOVING AND INSTALLING/REPLACING DOOR HANDLE ON DOOR TRIM PANEL, REAR LEFT OR RIGHT
Version with HiFi system: remove mid-range speaker. Refer to 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER) .
If necessary,

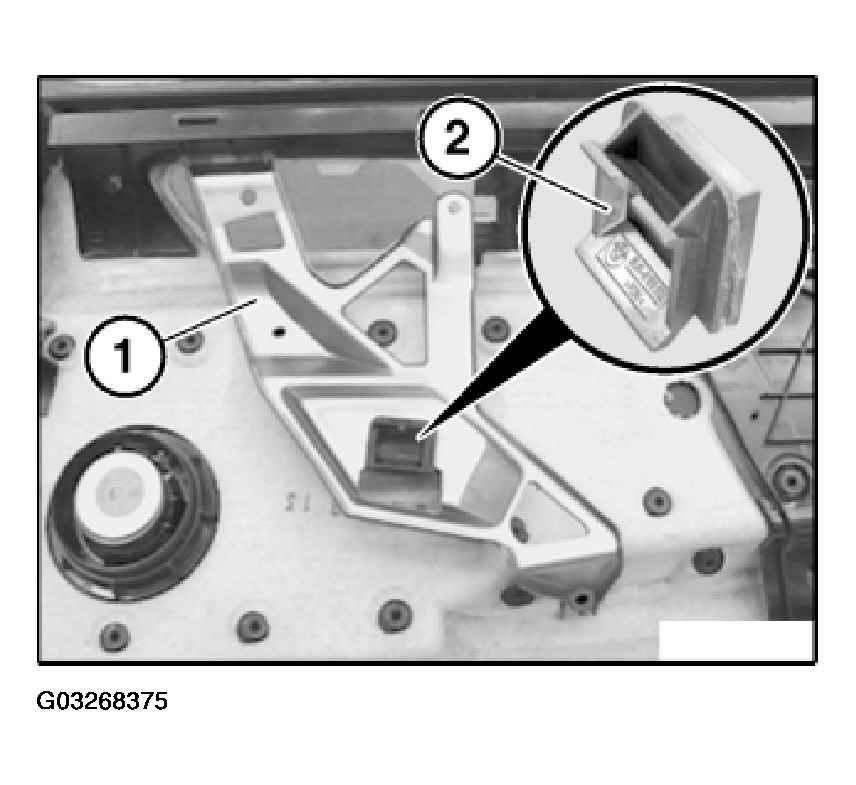

Attach central clip (2) to frame (1).
Version with HiFi system:

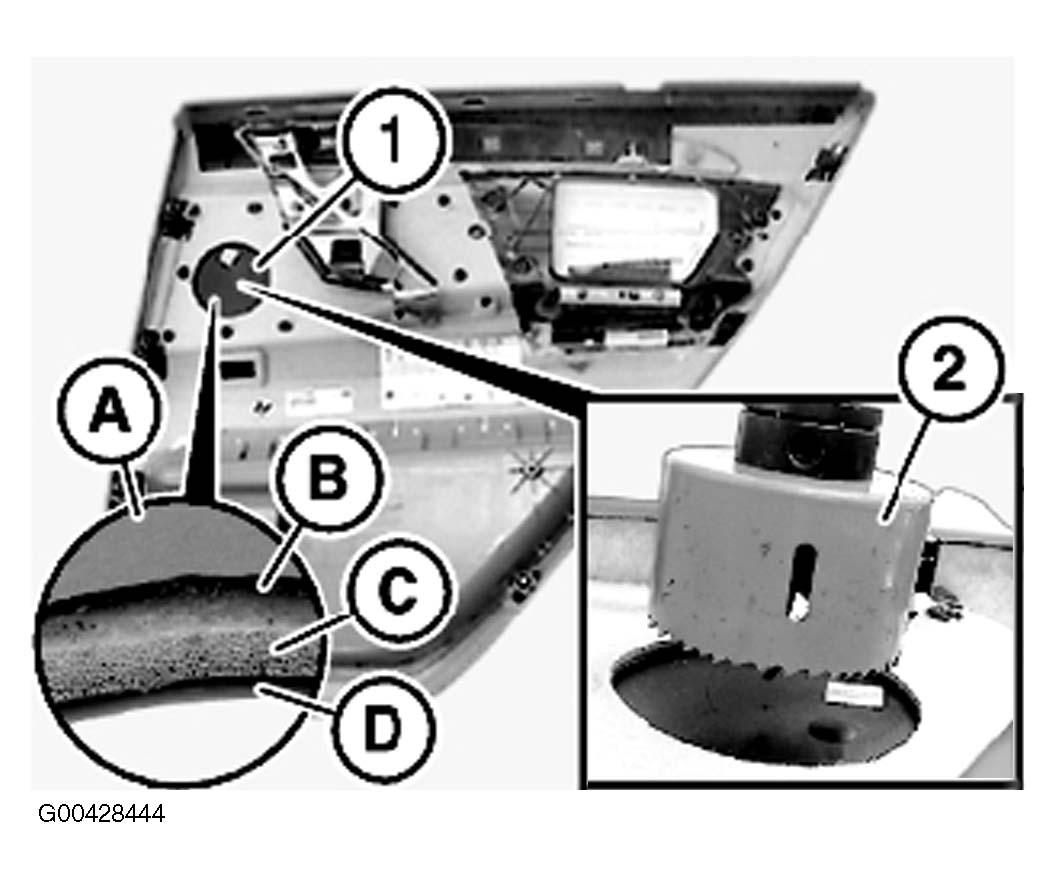

Cutout (1) for mid-range speaker must be sawn out with rotating circular band saw (2). Use rotating circular band saw with 72 to 73 mm dia..
Check center marking; if necessary, mark center again.
IMPORTANT:
Risk of damage! Do not drill through foam material (C), fleece (B) and fabric (A). Fabric may tear and fleece may wrap itself around drill bit and be torn out of door trim panel.
First drill through plastic layer (D) of door trim panel with drill bit at marked point.
IMPORTANT:
Risk of damage! In order not to damage door trim panel (1), cut out fabric (A), fleece (B) and foam material (C) around penetration for drill bit (2). Fleece (B) may wrap itself around drill bit and be torn out. Fabric (A) may tear.

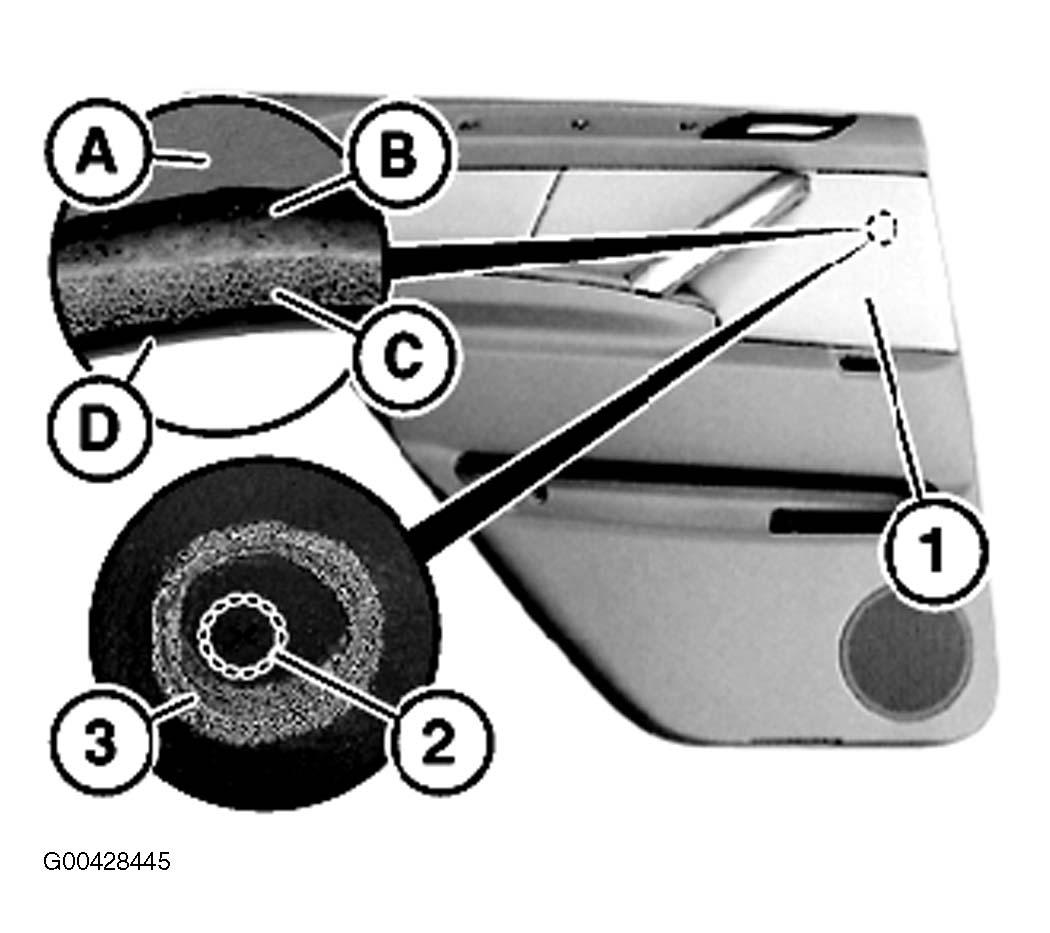

Cut out fabric (A) and fleece (B) of door trim panel (1) at marked cutout (3). Cutout (3) dia. 20 to 30 mm.
IMPORTANT:
Risk of damage! Do not saw into foam material (B), fleece (C) and fabric (D). Only cut through plastic layer (A) with rotating circular band saw.

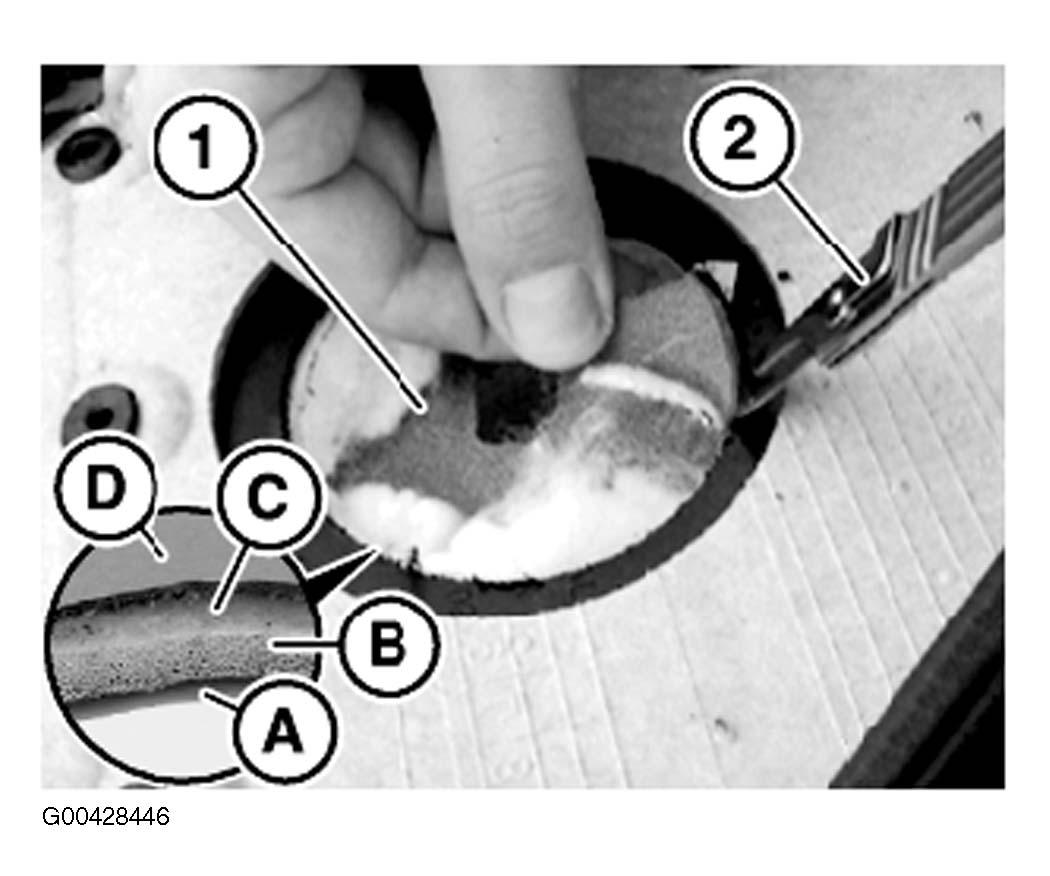

Saw out cutout with rotating circular band saw and cut out fabric (1) with scalpel (2).
