51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Field of vision (no repairs acceptable):

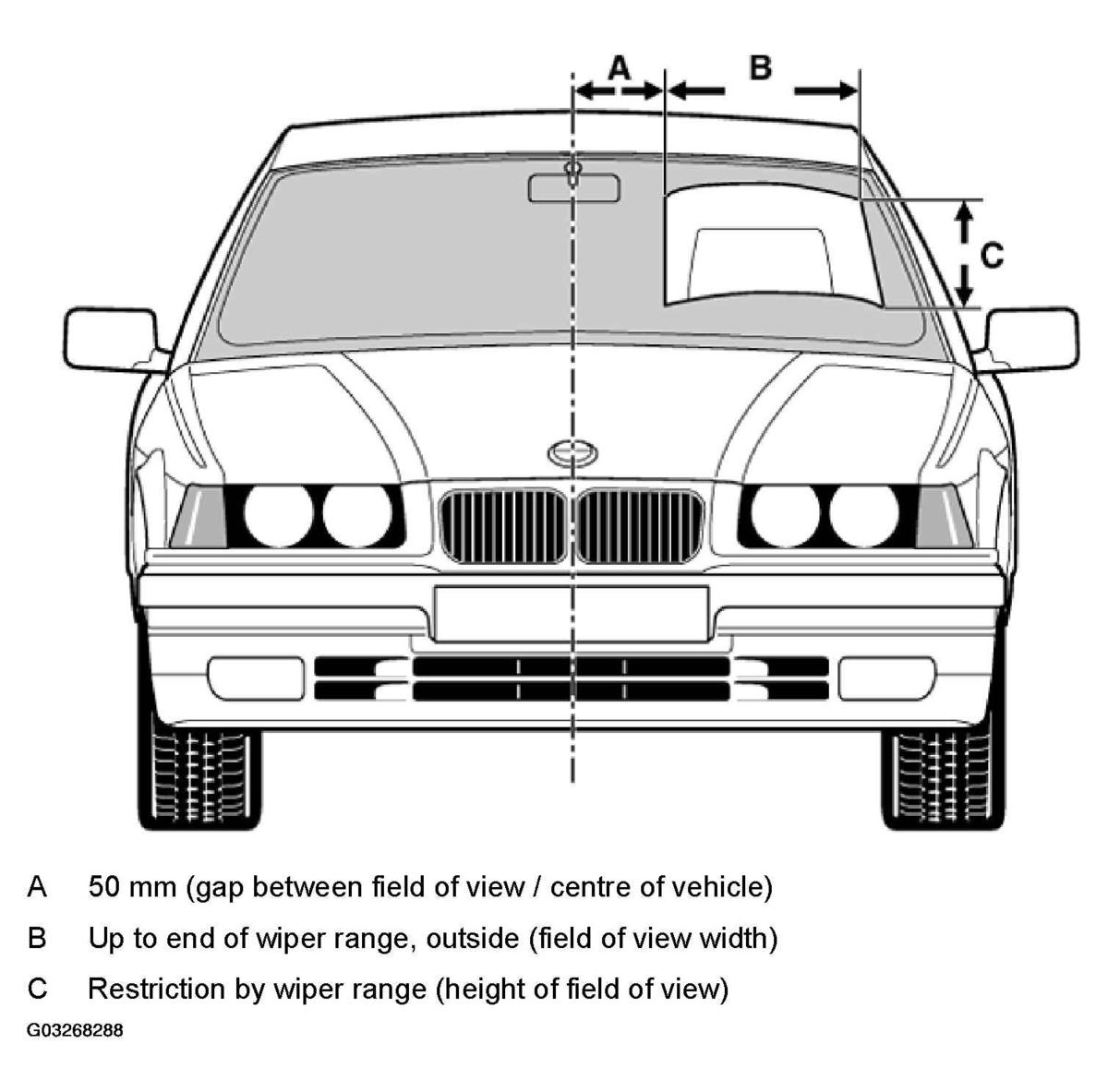

Fig 1: Identifying Field of vision (no repairs acceptable)
G03268288Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Repairs must only be carried out outside of the field of vision.

If the stone chip damage is outside the field of vision, refer to 51 31 ... INSTRUCTIONS FOR REPAIRING STONE-CHIPPED LAMINATED SAFETY GLASS WINDSCREENS (CLEAR AND TINTED)
