36 10 209 Checking Front And Rear Wheel For Face And Radial RUNOUT

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030

IMPORTANT: Wheel bearing must be OK!

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout.

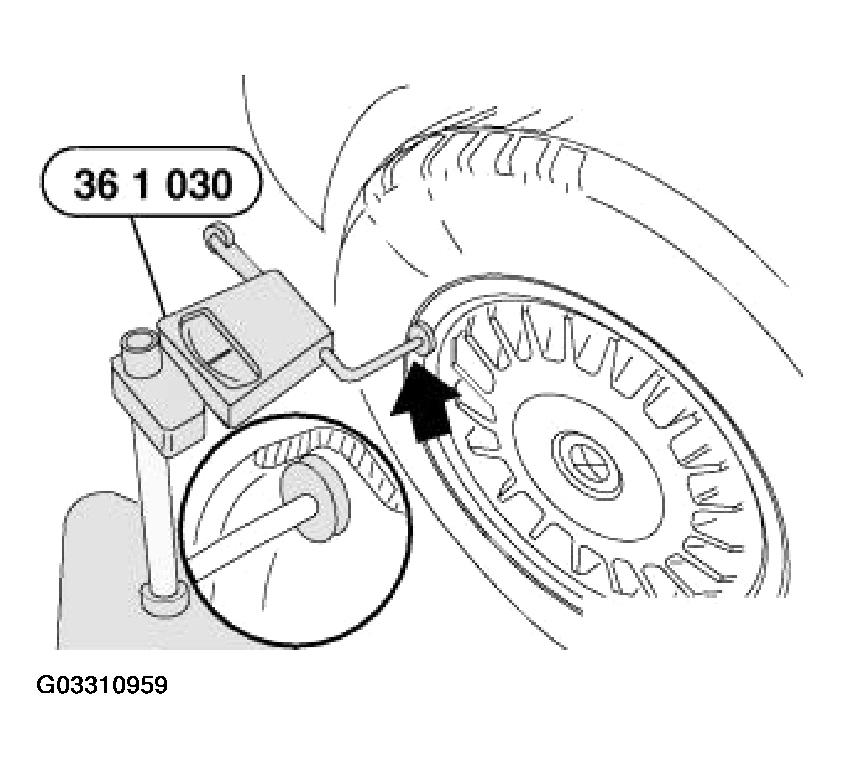

Fig 1: Checking Wheel For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

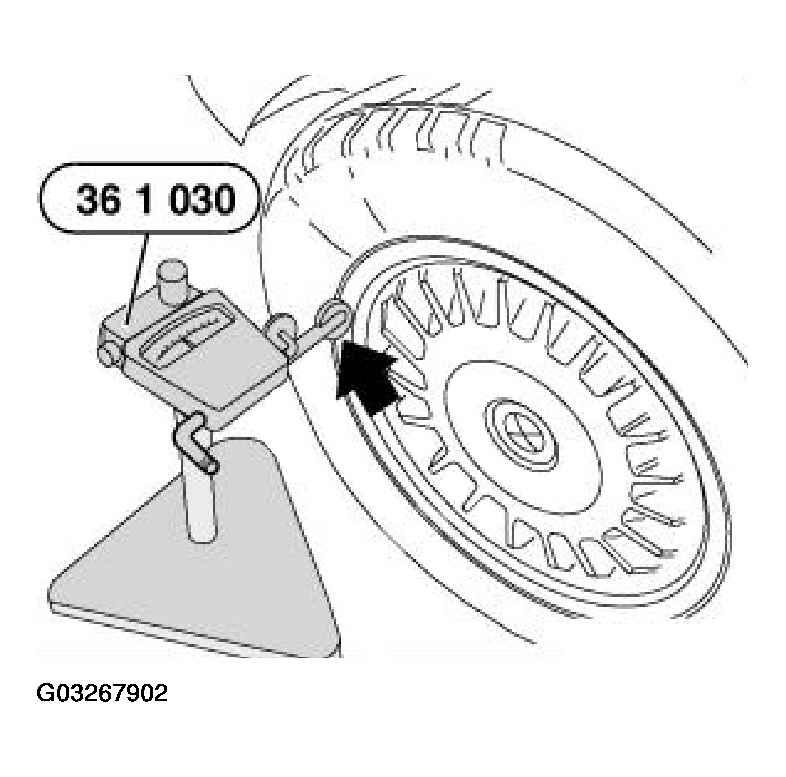

Fig 2: Checking Wheel For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture).

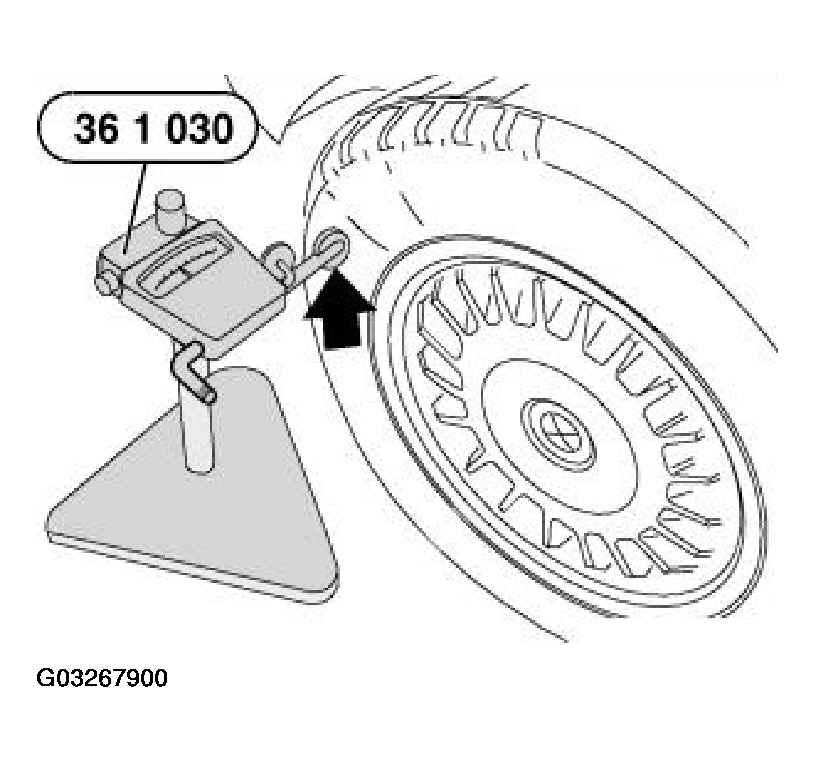

Fig 3: Checking Lateral Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

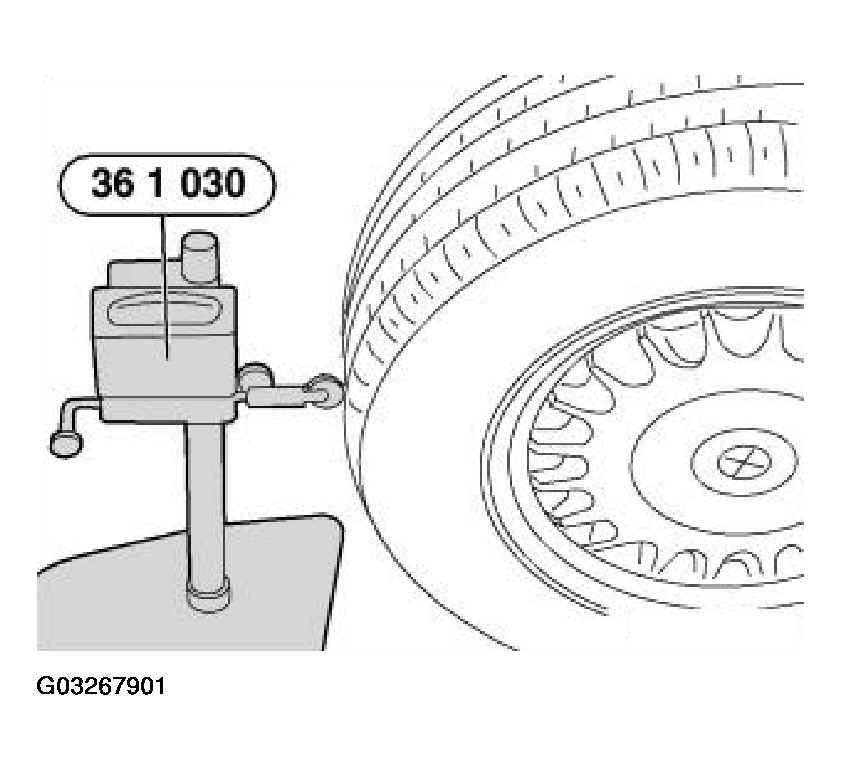

Fig 4: Checking Radial Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.
