36 11 520 Removing and installing/replacing RDC control module

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE .

Unfasten plug connection (1) and disconnect.

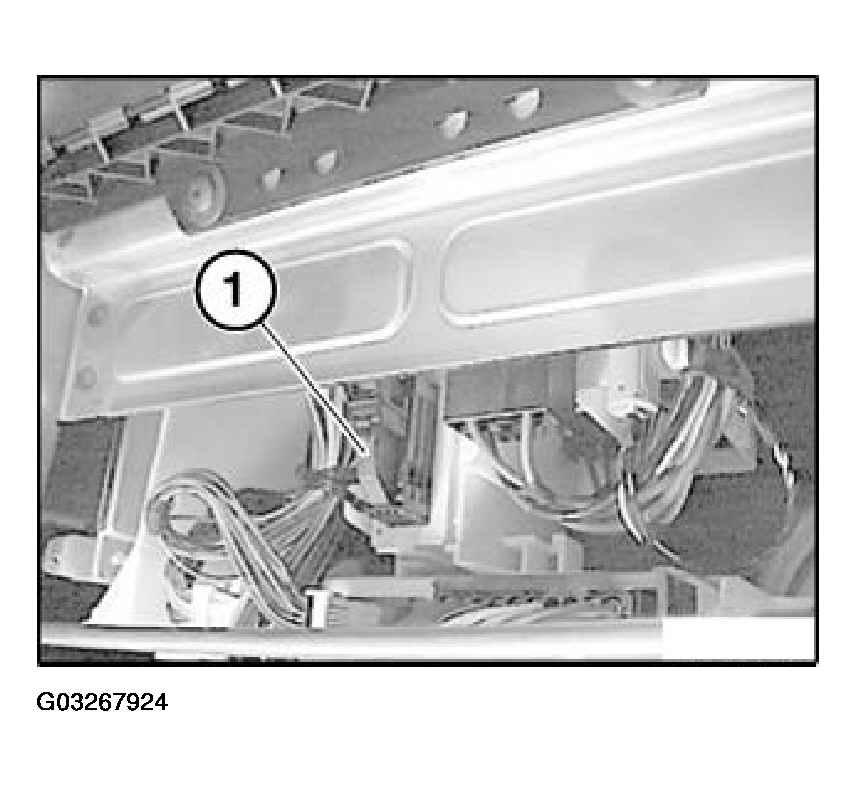

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) downwards.

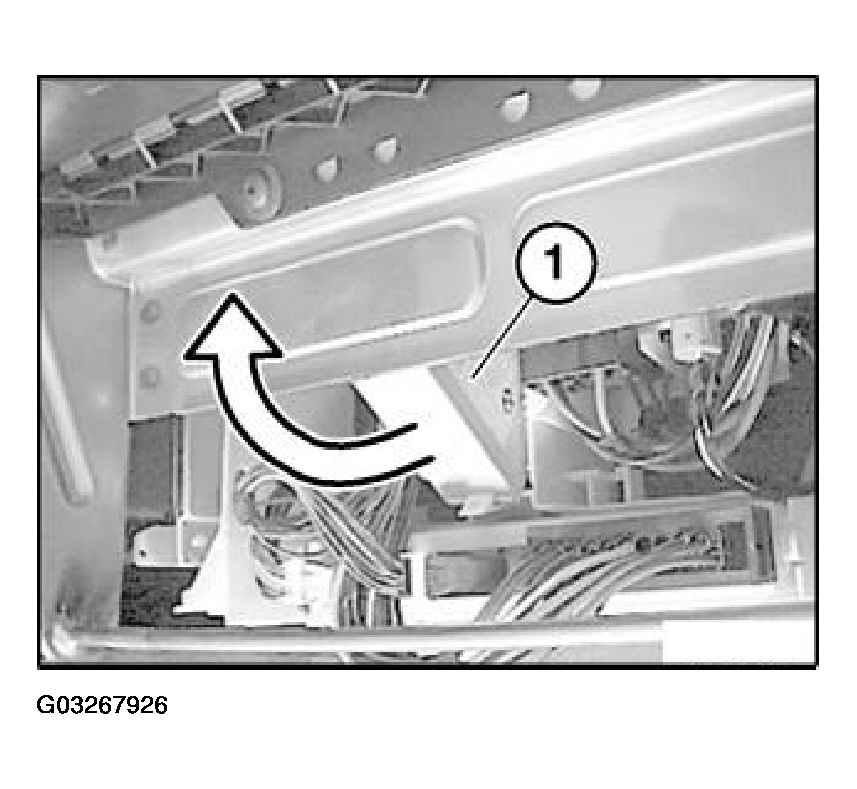

Fig 2: Pressing Lock Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt RDC control module (1) upwards, turn through 90 ° and remove vertically towards bottom.

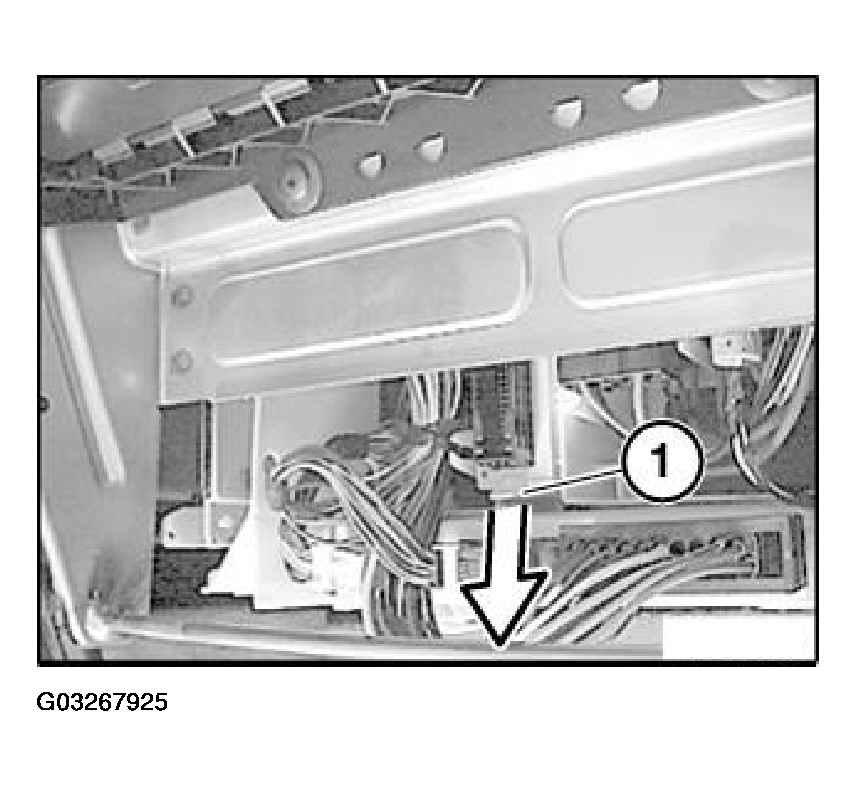

Fig 3: Removing RDC Control Module

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not damage control module carrier.
