32 31 151 Replacing Upper Steering Spindle Bearing

Special tools required:

• 32 1 090

  Remove steering wheel, refer to 32 33 000 REMOVING AND INSTALLING/REPLACING STEERING WHEEL

Take off collar (1).

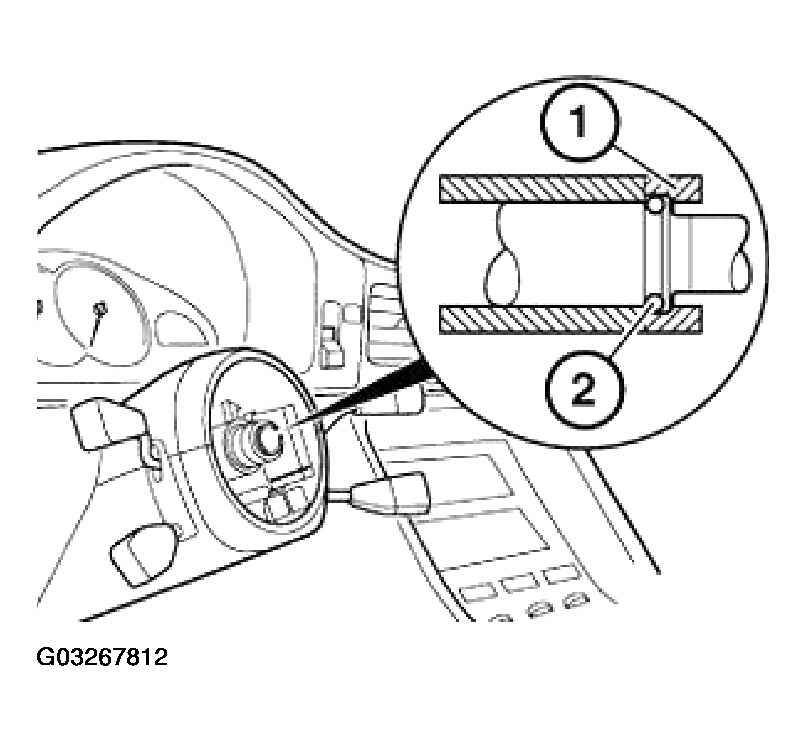

Fig 1: Removing Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Check position of collar (1) with regard to snap ring (2).

Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN COVER .

Remove upper section of steering column trim. Refer to 32 31 003 REPLACING UPPER SECTION OF STEERING COLUMN TRIM .

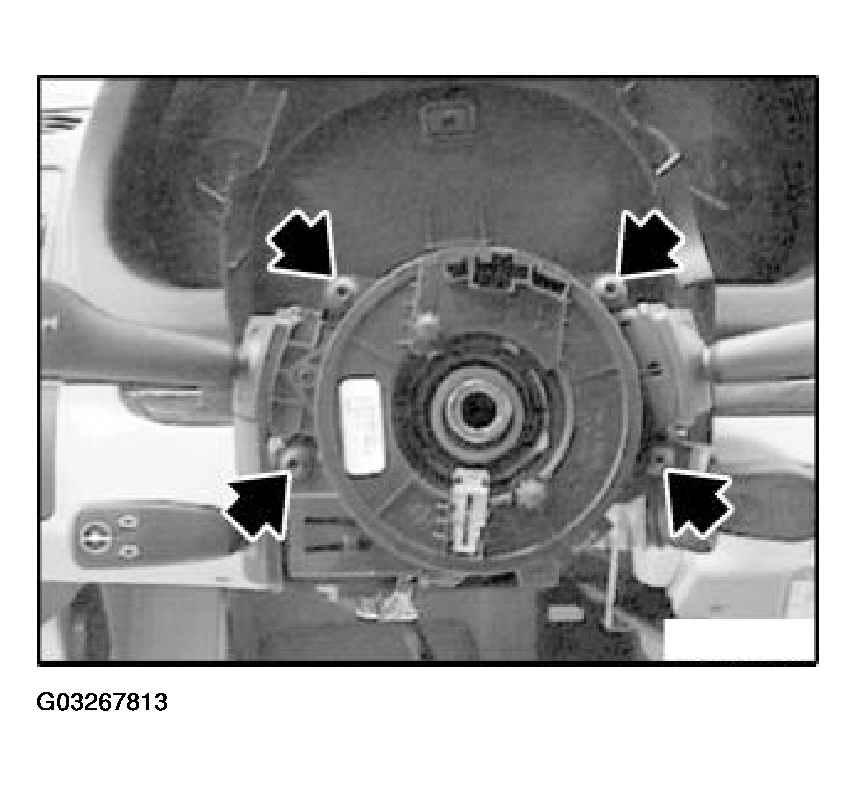

Unfasten screws.

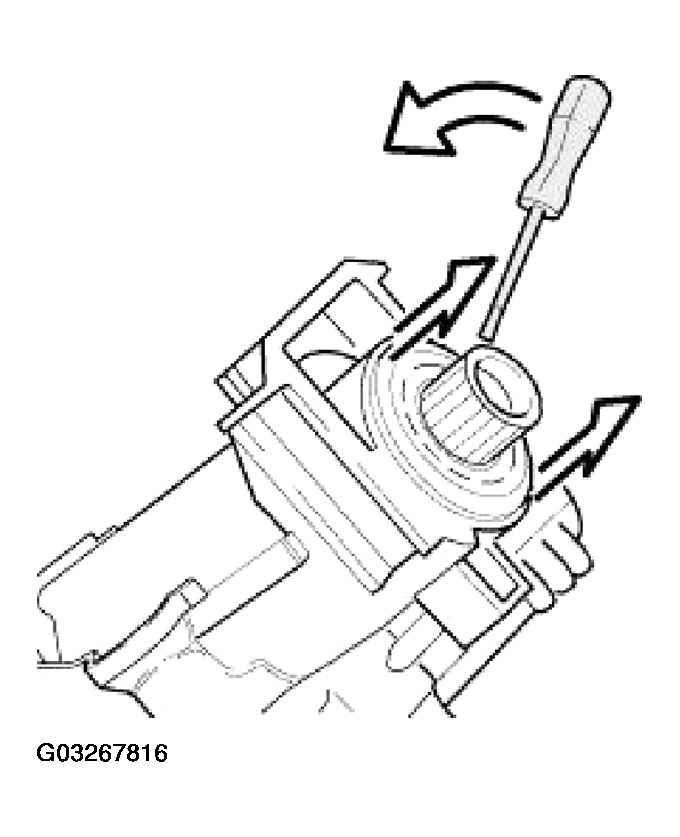

Fig 2: Removing Stalk Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug and remove stalk fixture for steering column.

To illustrate more clearly, operation is shown on a removed steering column.

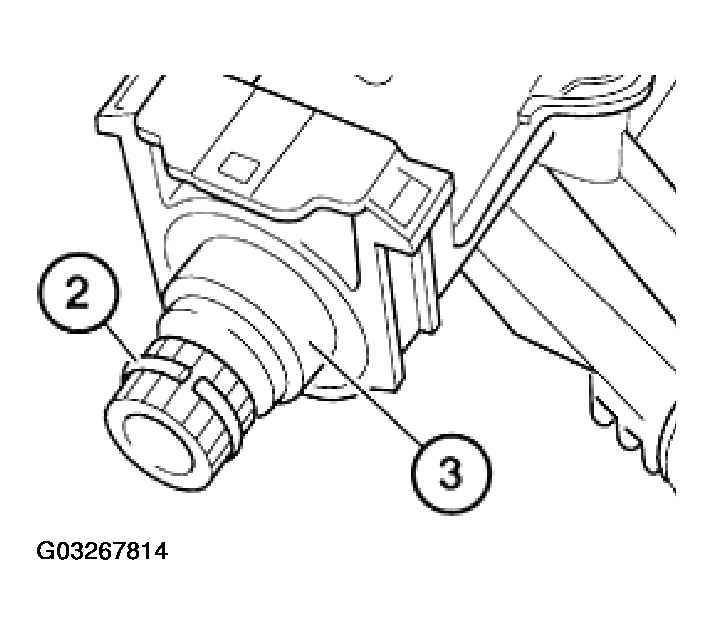

Fig 3: Removing Snap Ring And Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out snap ring (2) and remove bush (3).

Installation:

1. Fit bush (3).
2. Install snap ring (2) with special tool 32 1 090 and steering wheel screw until it snaps into place in groove of steering spindle.

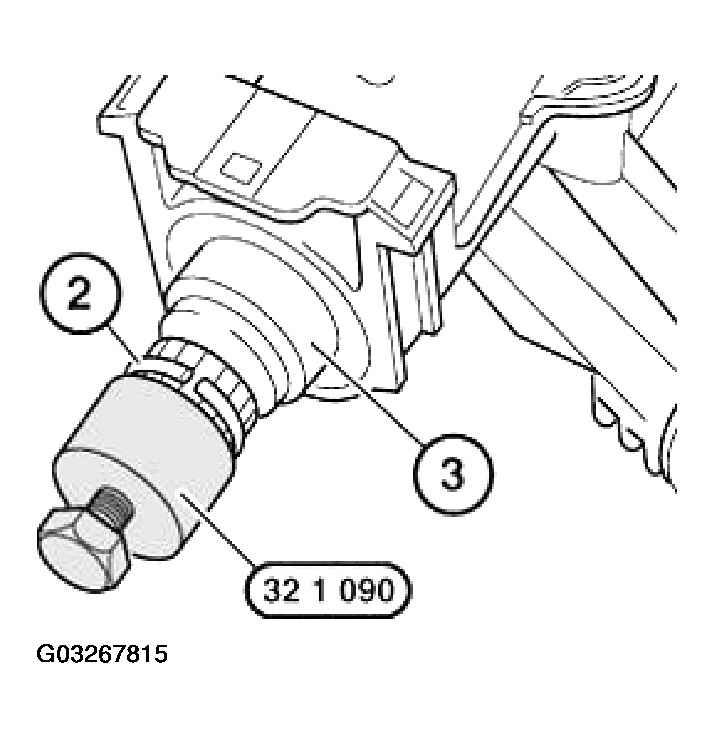

Fig 4: Installing Bush And Snap Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out steering spindle bearing.

Fig 5: Removing Bearing Inner Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Take out bearing inner sleeve.

Installation:

1. Insert bearing inner sleeve with bevelled end pointing to steering lock.

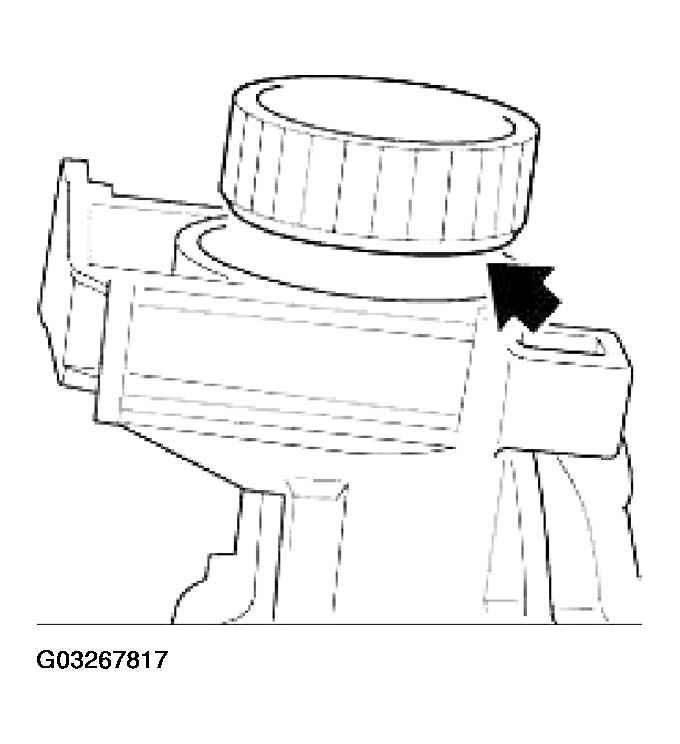

Fig 6: Installing Bearing Inner Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
