17 11 370 Removing and installing/replacing cooling loop for power steering

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure all parts are absolutely clean. No dirt is allowed to enter the system. After installation, bleed power steering.

Recycling:

Draw off power steering fluid from supply tank- do not reuse fluid.
Observe country-specific waste-disposal regulations.

Disconnect quick-release couplings on hydraulic lines. Refer to 32 41... NOTES ON HYDRAULIC LINE WITH QUICK-RELEASE COUPLING .

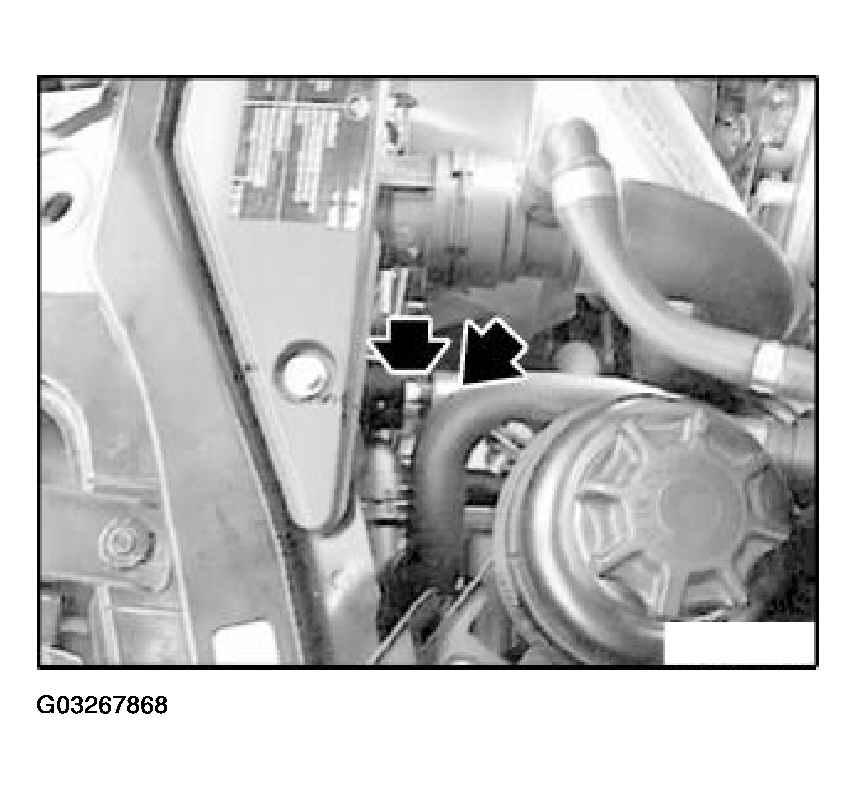

Fig 1: Removing Cooling Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radiator.

Remove cooling coil.
