Outside Mirror: E60, E61, E63, E64

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2006 BMW Z4, 2006 BMW M3, 2006 BMW M Roadster, 2006 BMW M Coupe, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

How it works

The body-gateway module controls and monitors the functions of the outside mirrors.

Basic outside mirror
Outside mirror with extended functions

Basic Outside Mirror

The body-gateway module (KGM) directly controls the components in the outside mirror. The KGM controls the mirror heating capacity automatically by means of a pulse-width modulated signal (PWM signal). The heat output is dependent on ambient temperature and wiper intensity. If the wipers are operating, the heat output is increased to ensure reliable defrosting of the mirror glass.

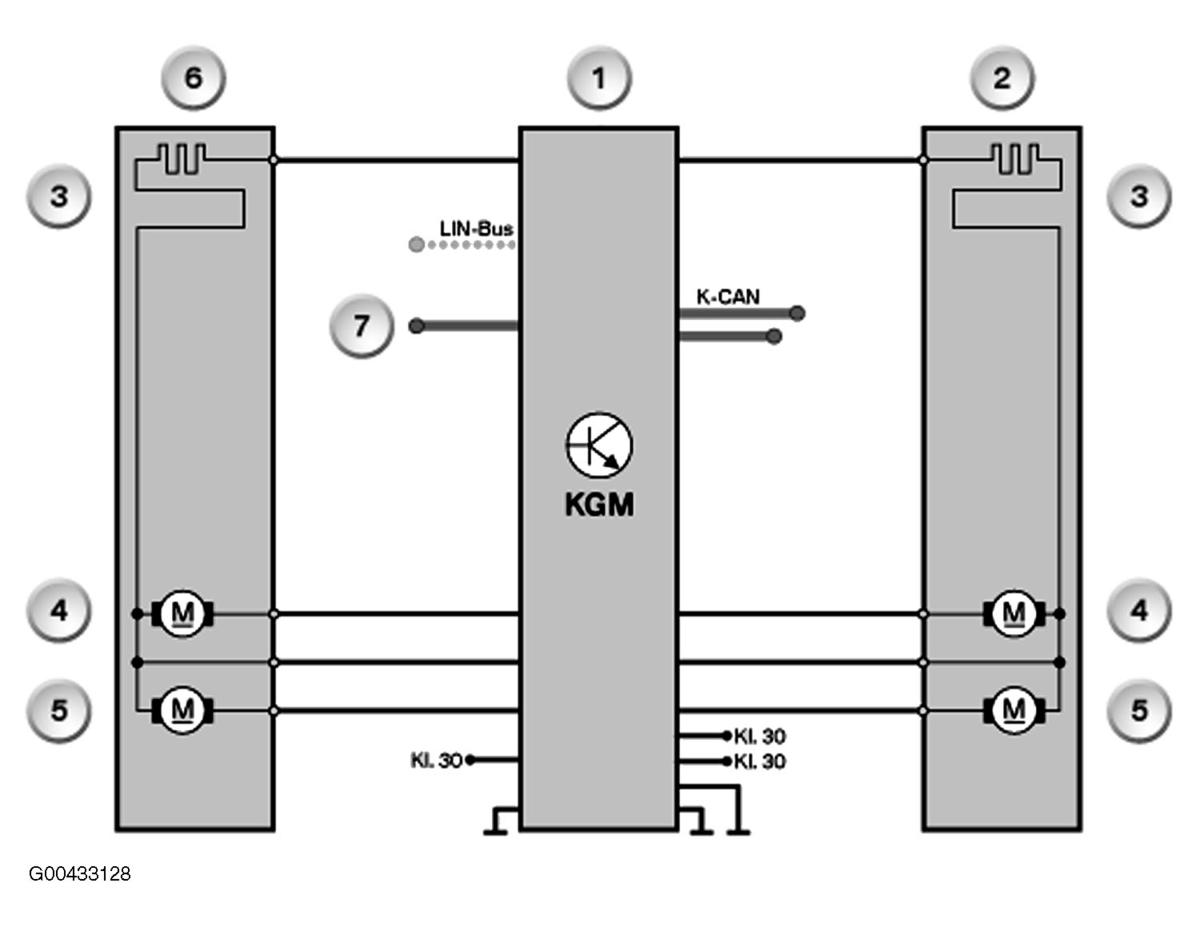

Fig 1: Identifying Basic Outside Mirror Schematic: E60, E61, E63, E64

Courtesy of BMW OF NORTH AMERICA, INC.

BASIC OUTSIDE MIRROR SCHEMATIC: E60, E61, E63, E64

Item	Description	Item	Description
1	Body-gateway module (KGM)	2	Front passenger side door mirror
3	Mirror heating	4	Motor for horizontal mirror adjustment
5	Motor for vertical mirror adjustment	6	Driver's side door mirror
7	Diagnostic wire
Kl. 30	Terminal 30 (power supply)	K-CAN	Body CAN
LIN-bus	Local data bus (Local Interconnect Network Bus)

Outside Mirror With Extended Functions

The body-gateway module (KGM) controls the mirror electronics via the LIN-bus. The mirror electronics controls the mirror heating in connection with power semiconductors. The KGM sends information relating to the heating capacity (percentage ON time) via the LIN-bus. The heat output is dependent on ambient temperature and wiper intensity. If the wipers are operating, the heat output is increased to ensure reliable defrosting of the mirror glass.

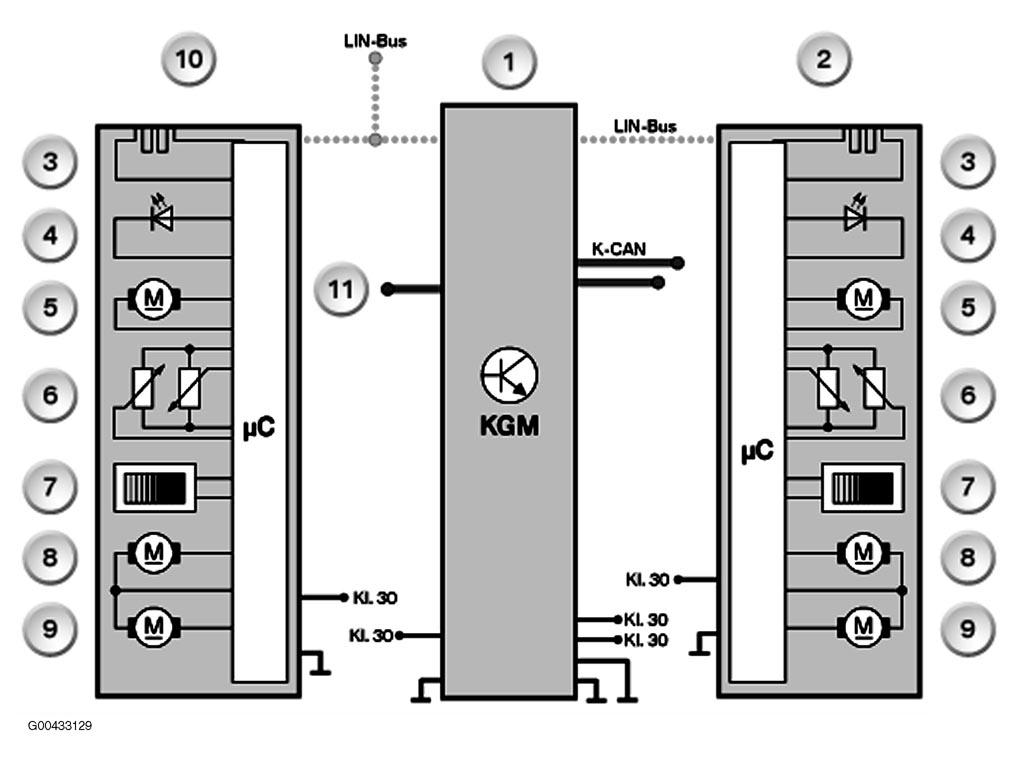

Fig 2: Identifying Basic Outside Mirror With Extended Functions Schematic: E60, E61, E63, E64

Courtesy of BMW OF NORTH AMERICA, INC.

BASIC OUTSIDE MIRROR WITH EXTENDED FUNCTIONS SCHEMATIC: E60, E61, E63, E64

Item	Description	Item	Description
1	Body-gateway module (KGM)	2	Front passenger side door mirror
3	Mirror heating	4	Courtesy lighting
5	Motor for folding in the mirrors	6	Position potentiometer for mirror memory
7	Electrochromic door mirrors	8	Motor for horizontal mirror adjustment
9	Motor for vertical mirror adjustment	10	Driver's side door mirror
11	Diagnostic wire
Kl. 30	Terminal 30 (power supply)	K-CAN	Body CAN
LIN-bus	Local data bus (Local Interconnect Network Bus)
