84 11 610 Removing and installing/replacing eject box (cordless keypad handset)

Special tools required:

• 00 9 341

Unlock telephone mounting (1) and fold upwards.

Release catch (2) of cover (3) from telephone mounting (1).

Release centre console base (4) in direction of arrow.

Feed out centre console base (4) with cover (3) and remove.

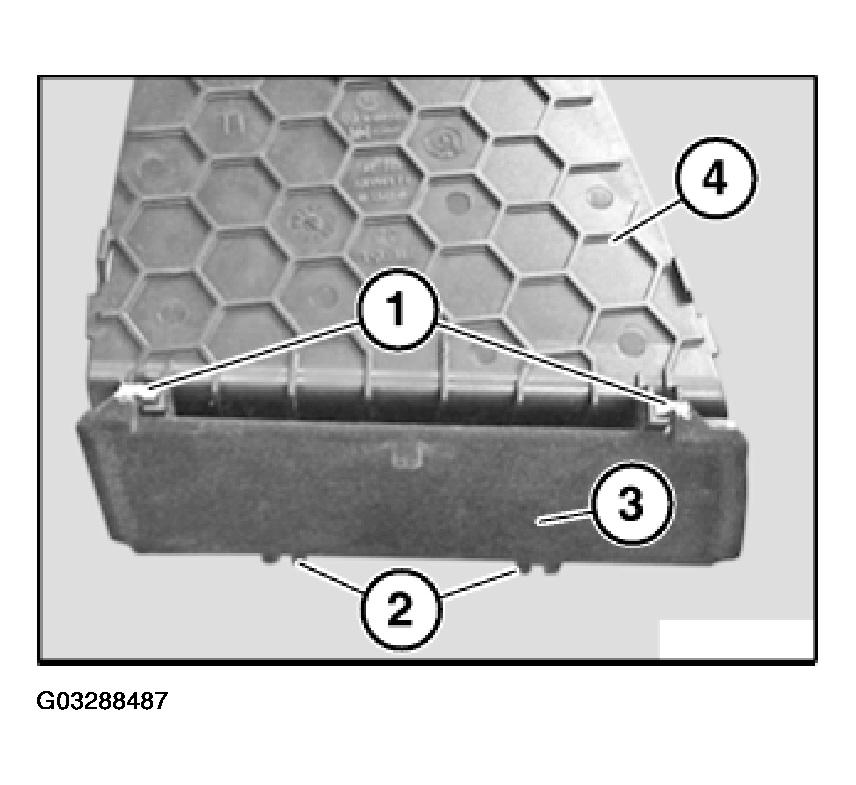

Fig 1: Releasing Catch Of Cover From Telephone Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure centre console base (4) and cover (3) are correctly seated.

Installation:

Make sure guide pins (1) of cover (3) are correctly seated in guide of centre console base (4).

Guide pins (1) and catches (2) of cover (3) must not be damaged or missing.

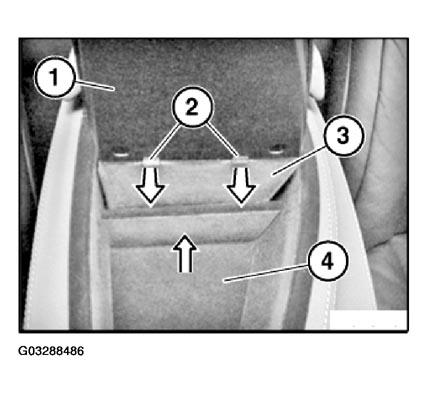

Fig 2: Identifying Guide Pins Of Cover And Centre Console Base

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plug connection (3) in direction of arrow and feed out.

Unfasten plug connection (3) and disconnect.

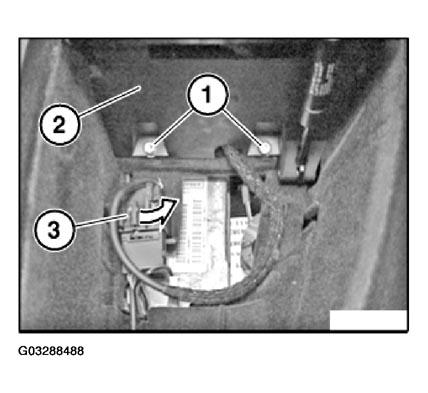

Fig 3: Turning Plug Connection In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unlock antenna plug and disconnect.

Release screws (1).

Remove telephone mounting (2).

Installation:

Make sure cable guide is correctly laid.

Unlock eject box (1) with special tool 00 9 341 and towards top rear out of telephone mounting (2).

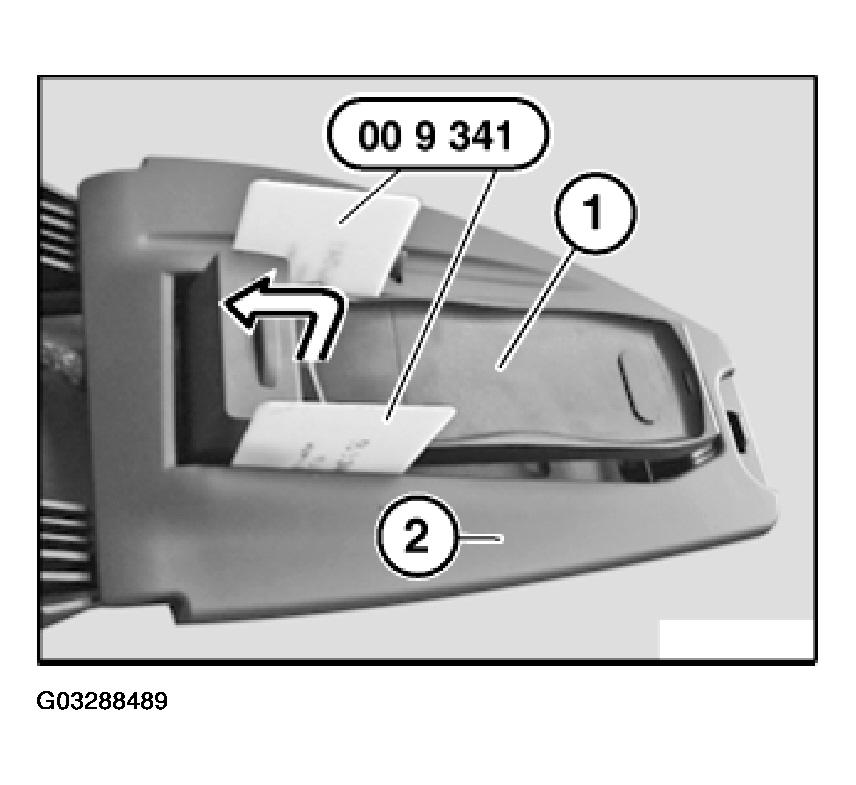

Fig 4: Unlocking Eject Box With Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure eject box (1) is correctly seated.

Installation:

Catches (1) on telephone mounting (2) must not be damaged or missing.

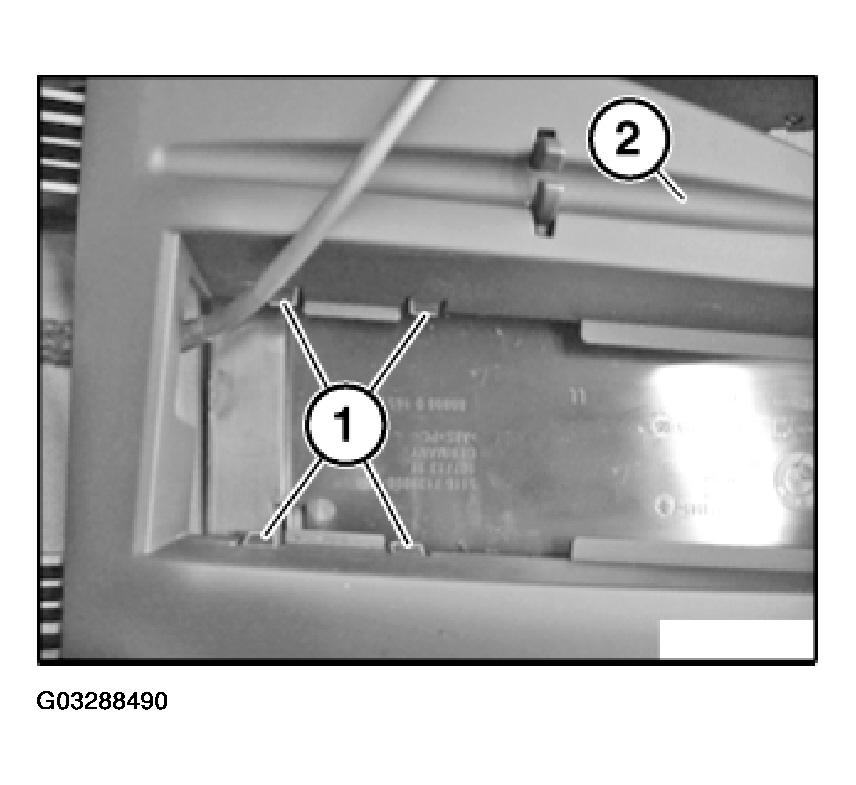

Fig 5: Identifying Catches On Telephone Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
