84 31 020 Removing and installing/replacing handsfree system speaker
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

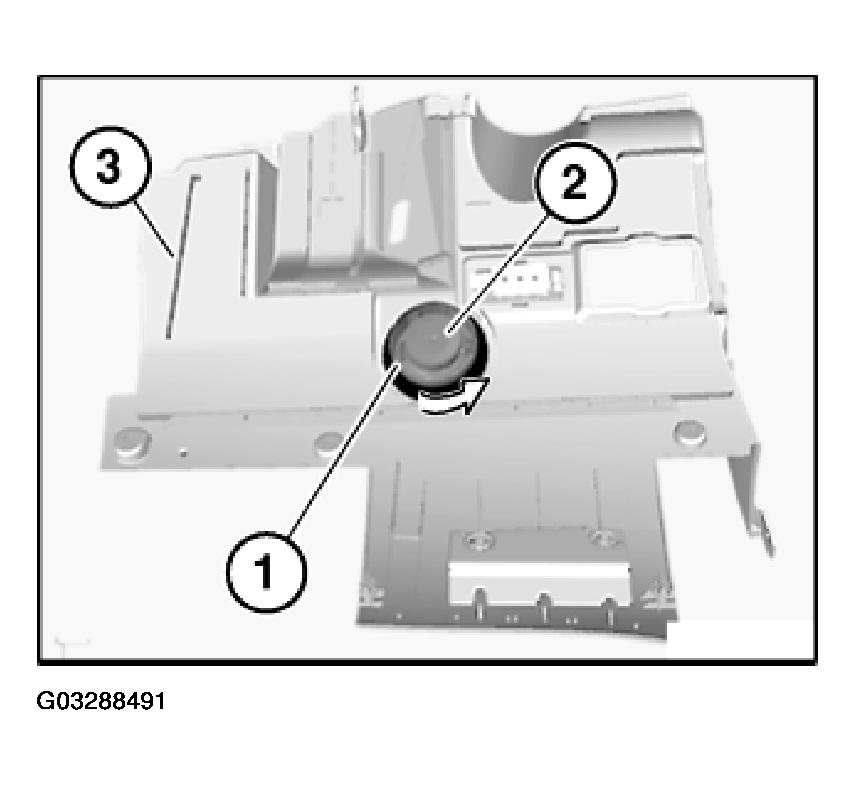

Screw on threaded ring (1) in direction of arrow and remove hands-free system speaker (2) from trim for pedal assembly (3).
