63 13 200 Removing and installing/replacing front left or right auxiliary turn signal lamp

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

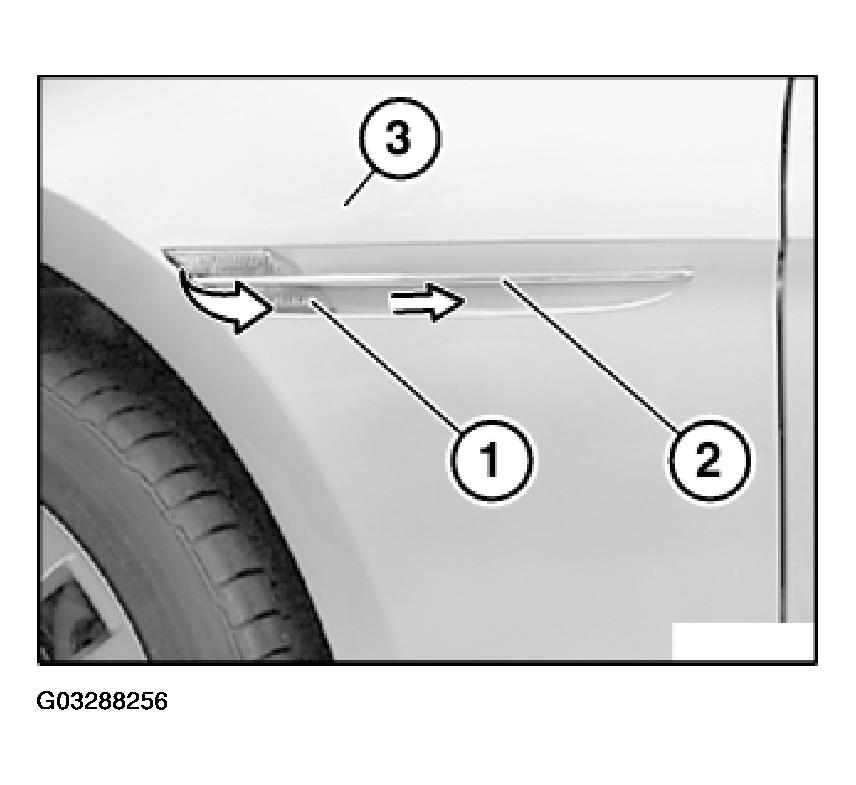

Slide front auxiliary turn signal lamp (1) with trim strip (2) towards rear and fold out in direction of arrow from front side panel (3).

Fig 1: Sliding Front Auxiliary Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

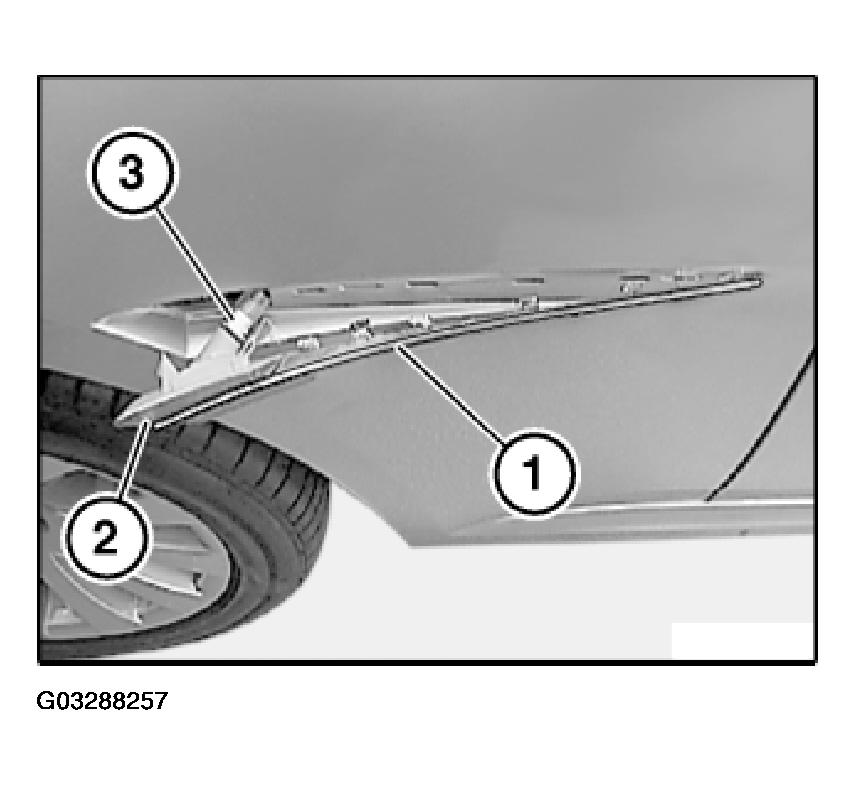

Remove trim strip (1) from front auxiliary turn signal lamp (2).

Unfasten plug connection (3) and disconnect.

Remove front auxiliary turn signal lamp (2).

Fig 2: Removing Trim Strip From Front Auxiliary Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

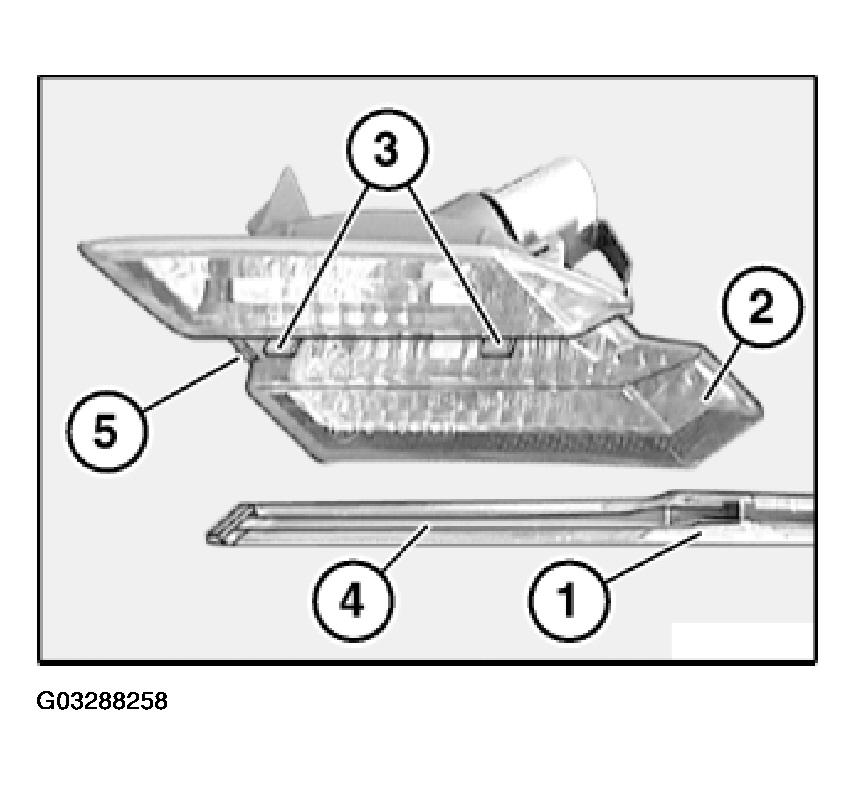

Make sure trim strip (1) is correctly seated on front auxiliary turn signal lamp (2).

Fixtures (3), guide (4) and tab (5) must not be damaged.

Fig 3: Making Sure Trim Strip Is Correctly Seated On Front Auxiliary Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, convert bulb, refer to 63 99 295 REPLACING BULB FOR AUXILIARY TURN SIGNAL LIGHT, FRONT LEFT OR RIGHT .
