63 21 183 Removing and installing/replacing left or right rear light

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER .

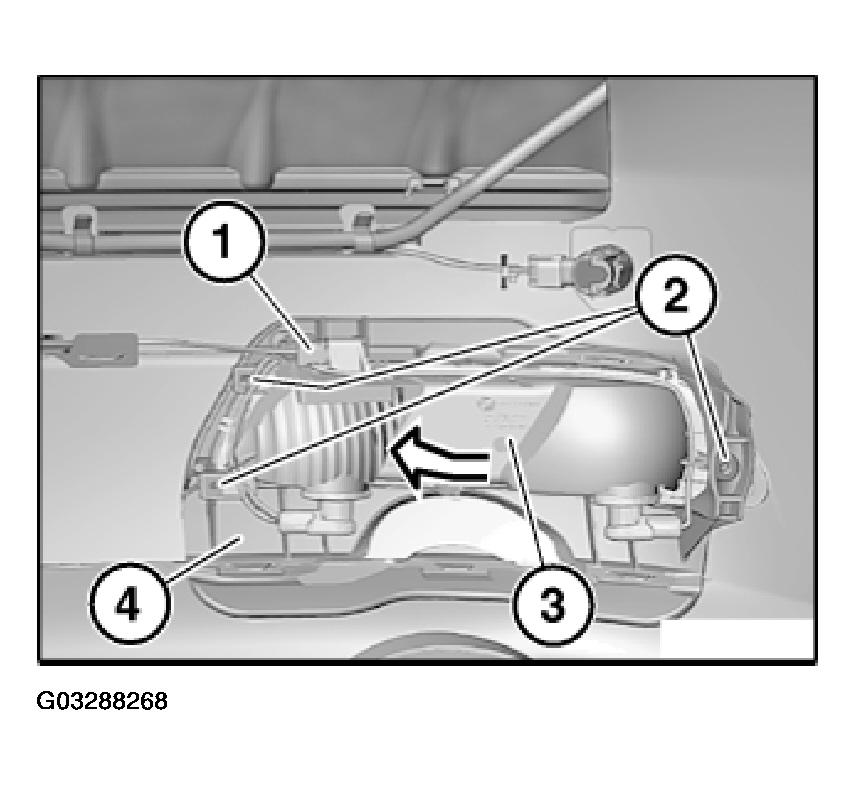

Unfasten plug connection (1) and disconnect.

Release screws (2).

Feed rear light (3) in direction of arrow out of bumper trim (4) and remove.

Fig 1: Unfastening Plug Connection And Disconnecting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

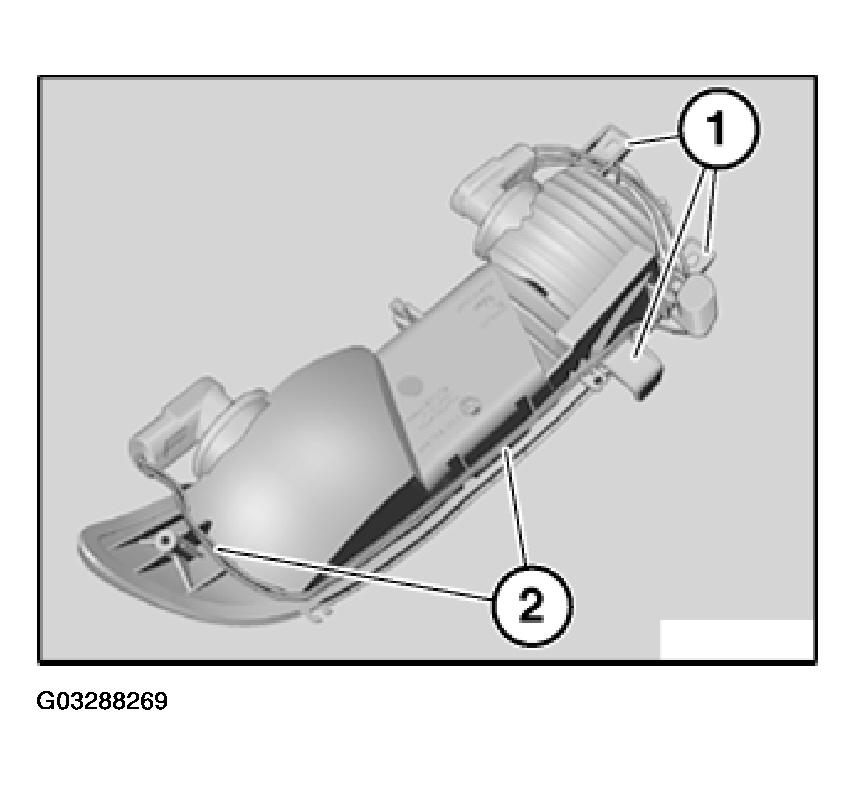

Plastic lugs (1) must not be damaged.

Make sure electrical leads (2) are correctly routed.

Fig 2: Making Sure Electrical Leads Are Correctly Routed

Courtesy of BMW OF NORTH AMERICA, INC.
