63 21 101 Replacing sealing frame for left or right rear light (on side panel)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear light, refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (IN SIDE PANEL) .

Detach sealing frame for rear light (1) from rear light (2).

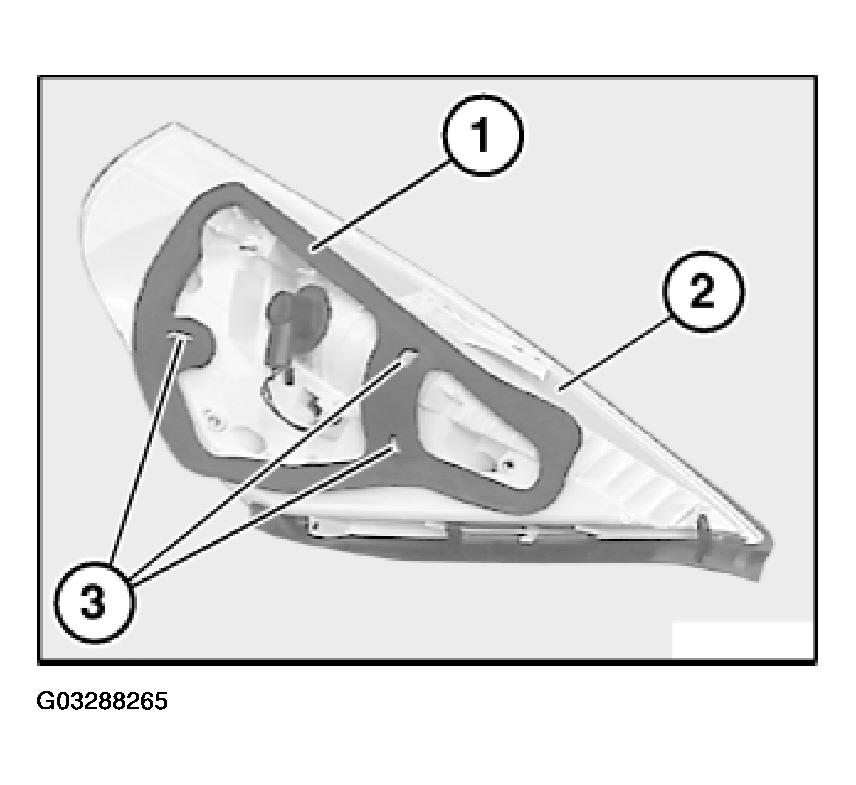

Fig 1: Detaching Sealing Frame For Rear Light From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing frame for rear light (1) is centered via guides (3).

Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).
