63 99 401 Replacing bulb for left or right license plate light

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove license plate light, refer to 63 26 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT LICENSE PLATE LIGHT .

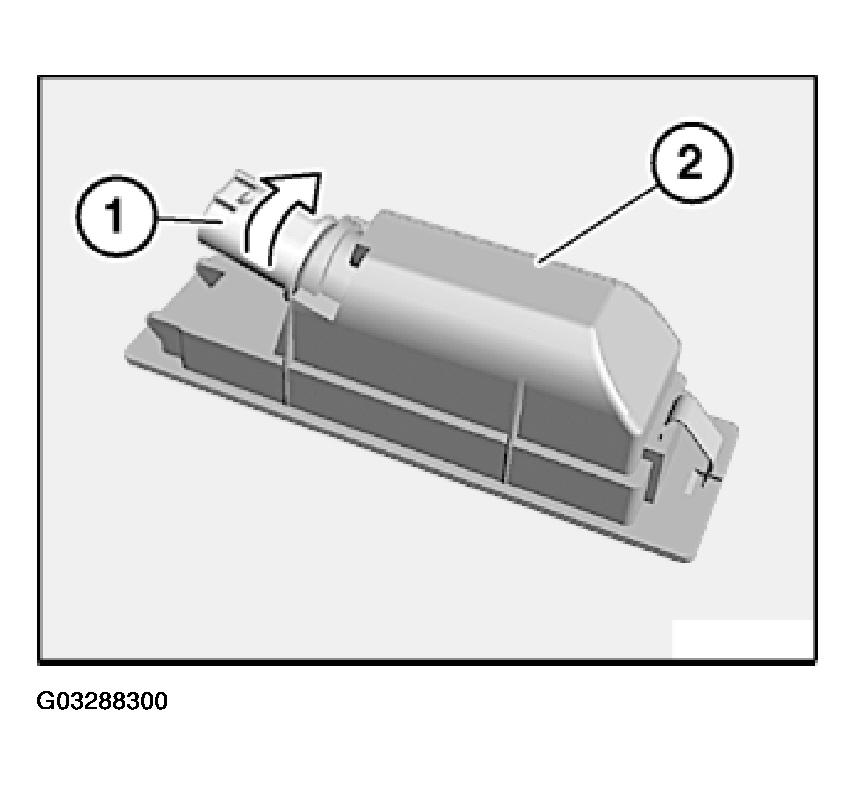

Turn bulb holder (1) in direction of arrow and withdraw from license plate light (2).

Fig 1: Turning Bulb Holder And Withdraw From License Plate Light

Courtesy of BMW OF NORTH AMERICA, INC.

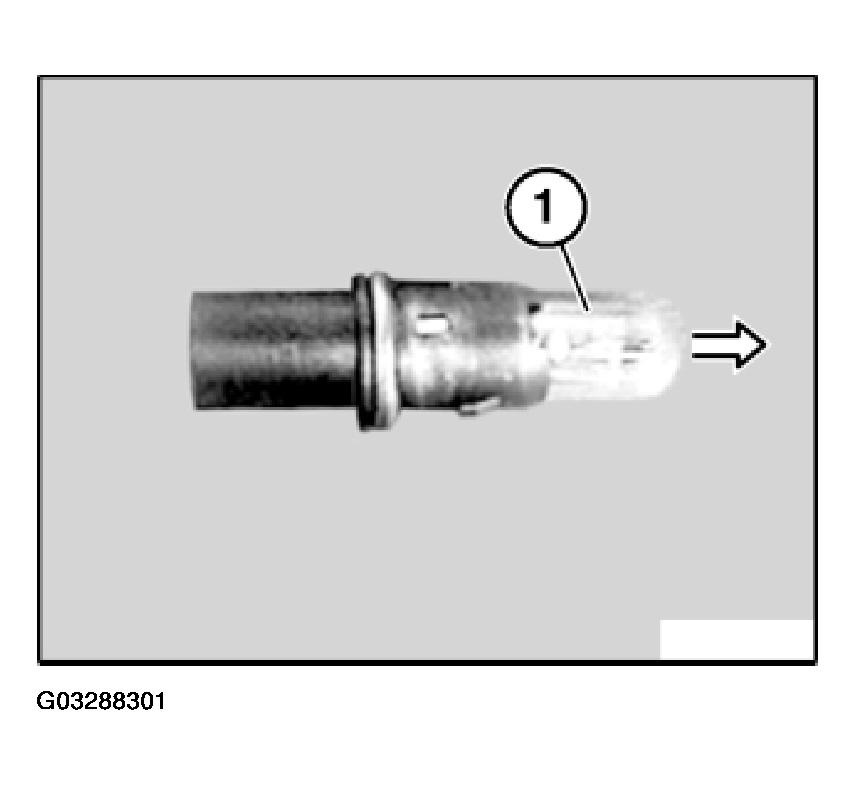

Detach bulb (1) in direction of arrow.

Fig 2: Detaching Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb.
