63 99 273 Replacing bulb for front left turn signal light

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Bulb, interior:

Turn lever (1) counterclockwise and pull bulb holder (2) towards rear out of turn signal housing (3).

Remove bulb from bulb holder (2).

Installation:

Note type of bulb.

Make sure bulb holder (2) is correctly seated in turn signal housing (3).

Fig 1: Checking Bulb Holder Is Correctly Seated In Turn Signal Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Bulb, exterior:

NOTE: Front wheel removed for purposes of clarity.

Release screws (1).

Fold down cover (2) and remove front wheel arch trim (3).

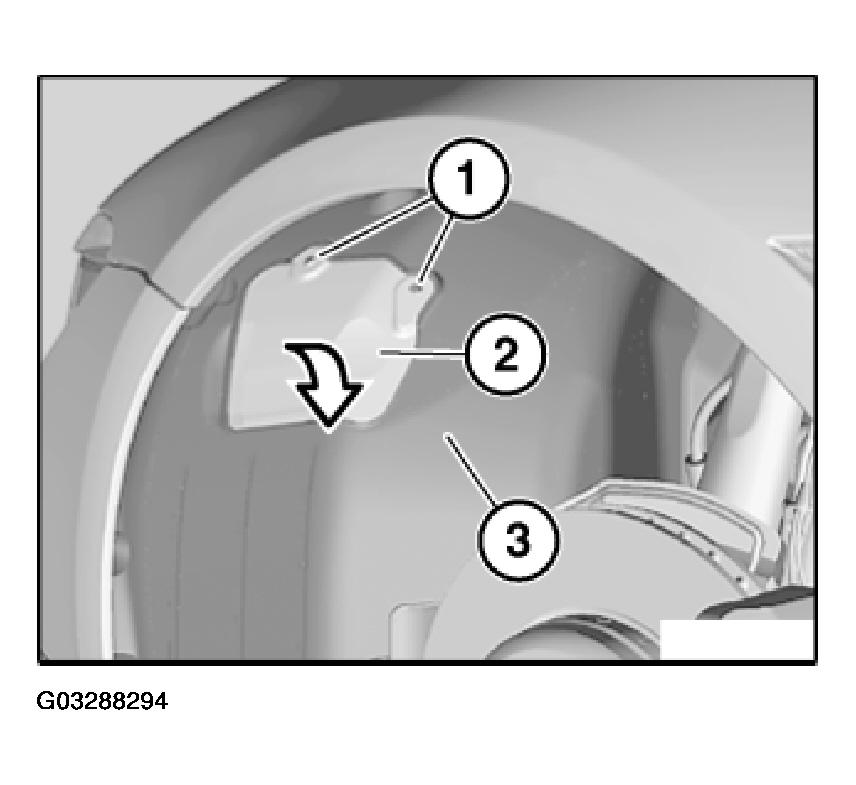

Fig 2: Removing Front Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn bulb holder (2) counterclockwise and pull towards rear out of turn signal housing (3).

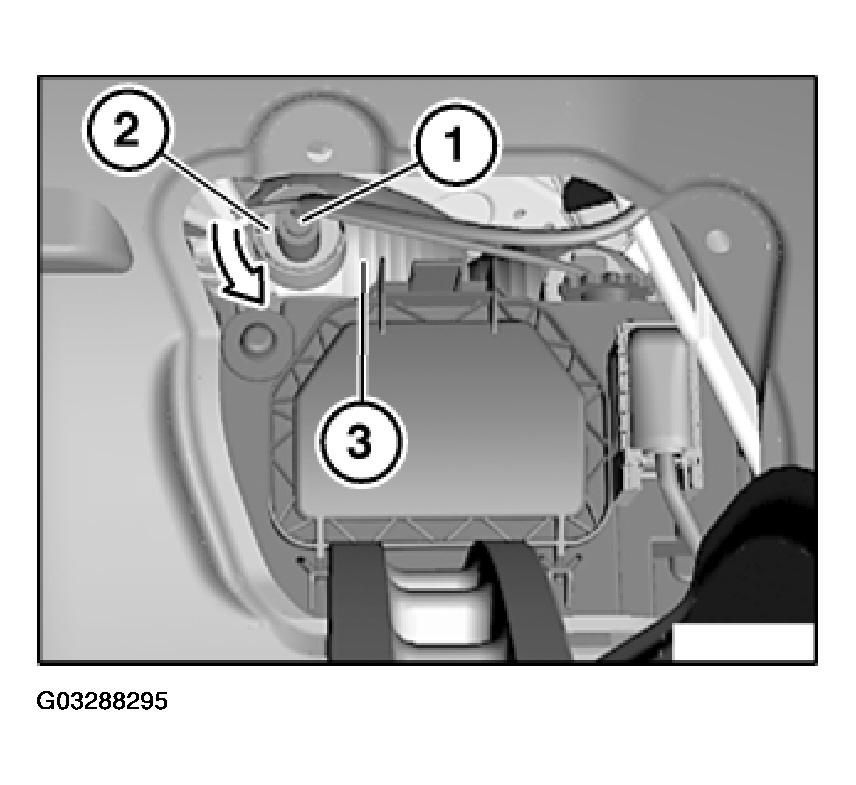

Fig 3: Turning Bulb Holder Counterclockwise And Pull Towards Rear Out Of Turn Signal Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb from bulb holder (1).

Installation:

Note type of bulb.
