63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS)  .

Unfasten plug connection (1) and disconnect.

Turn bulb with bulb holder (2) in direction of arrow and remove.

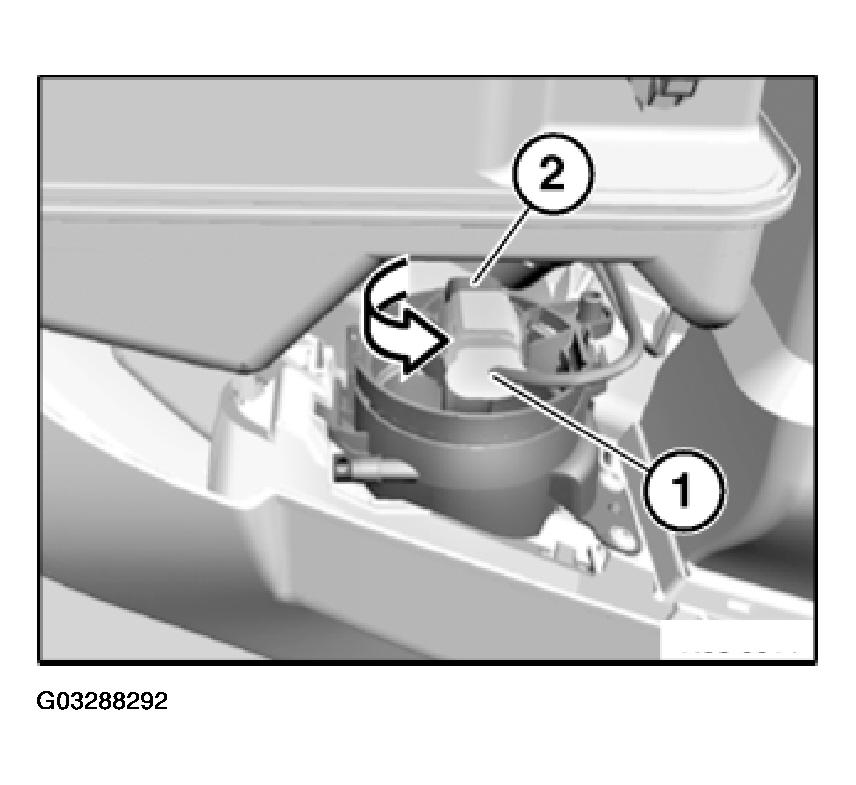

Fig 1: Turning Bulb With Bulb Holder
G03288292Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb.
