63 99 140 Replacing bulb for side marker lamp, front left

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

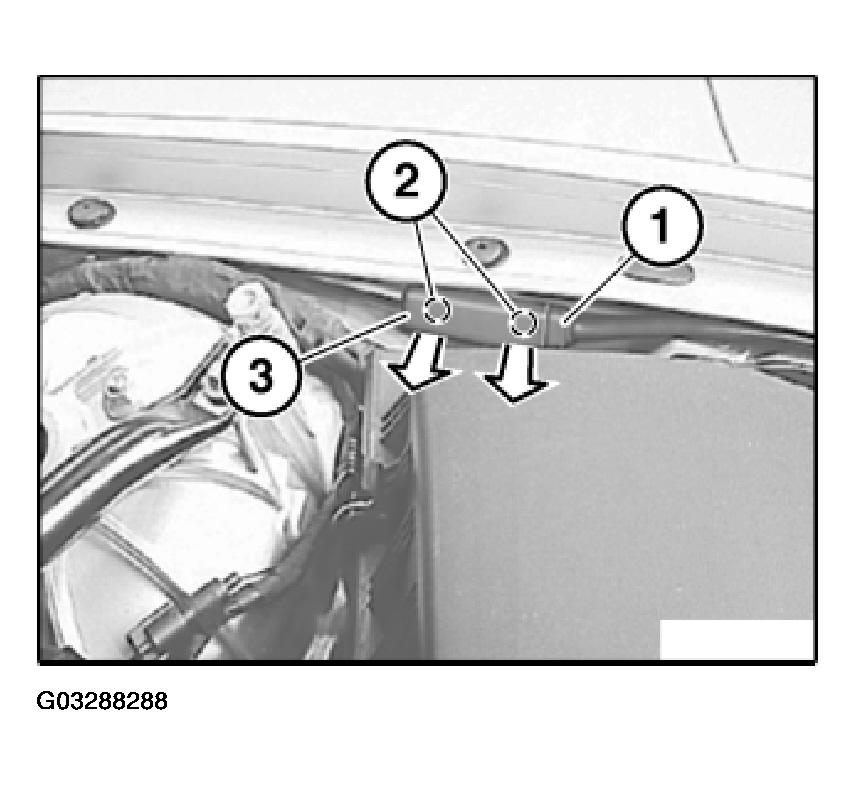

Unclip housing (1) at points (2).

Remove cover (3) from housing (1).

Fig 1: Removing Cover From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

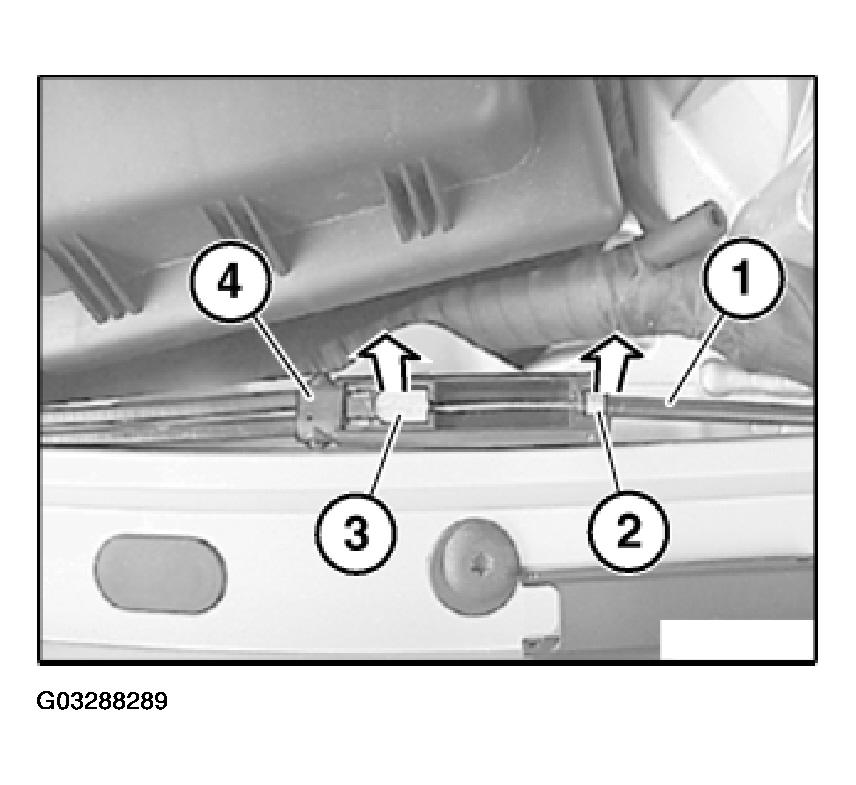

Unclip engine hood lock pull (1) in area (2) and disengage at point (3).

Place housing (4) with associated pulls in working area to one side.

Fig 2: Removing Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure engine hood lock pulls are correctly laid.

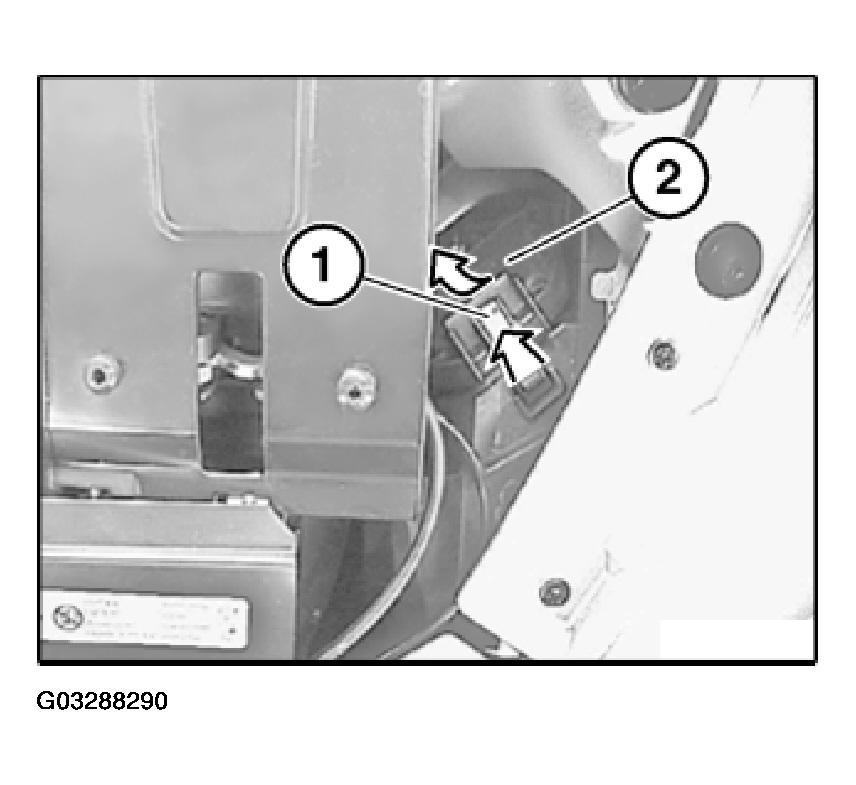

Unlock catch (1) and remove cap (2) in direction of arrow.

Fig 3: Unlocking Catch And Removing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows headlight removed. Plug connection already unlocked and disconnected.

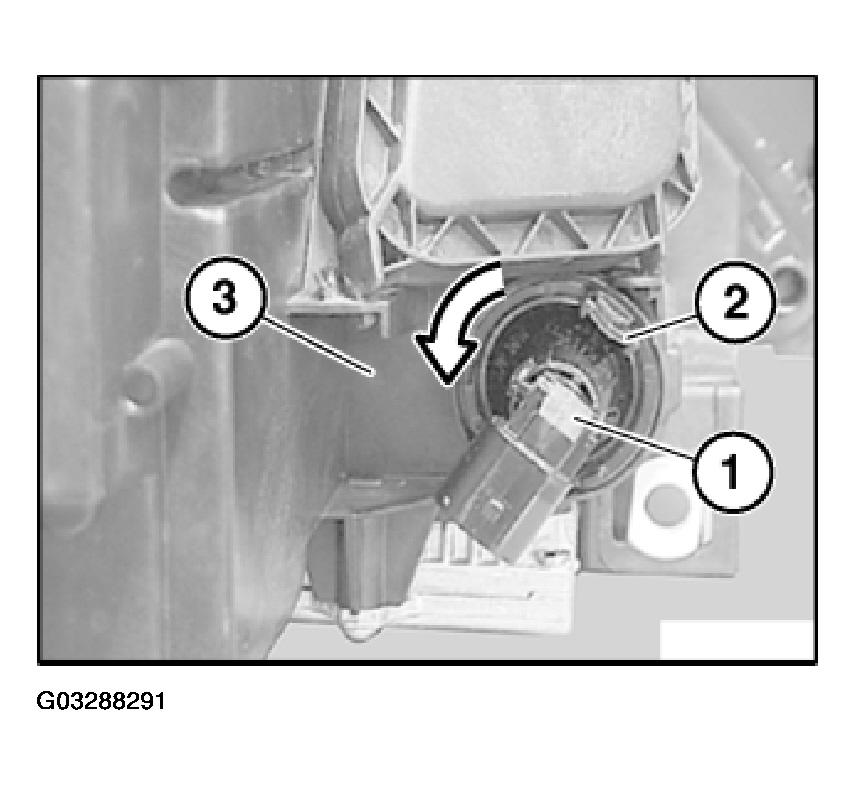

Turn holder with bulb for side marker lamp (1) counterclockwise with aid of lug (2) and remove from headlight (3).

Fig 4: Removing Side Marker Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holder with bulb for side marker lamp (1) must be correctly seated in mounting.

Note type of bulb.
