63 99 002 Replacing halogen bulb for high-beam headlight on left

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

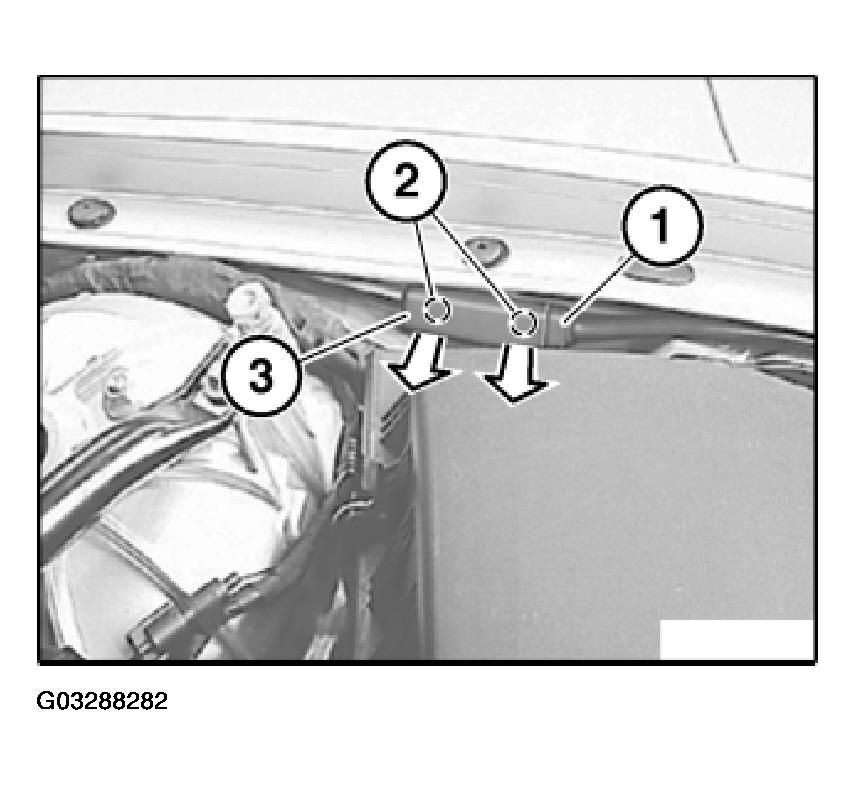

Unclip housing (1) at points (2).

Remove cover (3) from housing (1).

Fig 1: Removing Cover From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

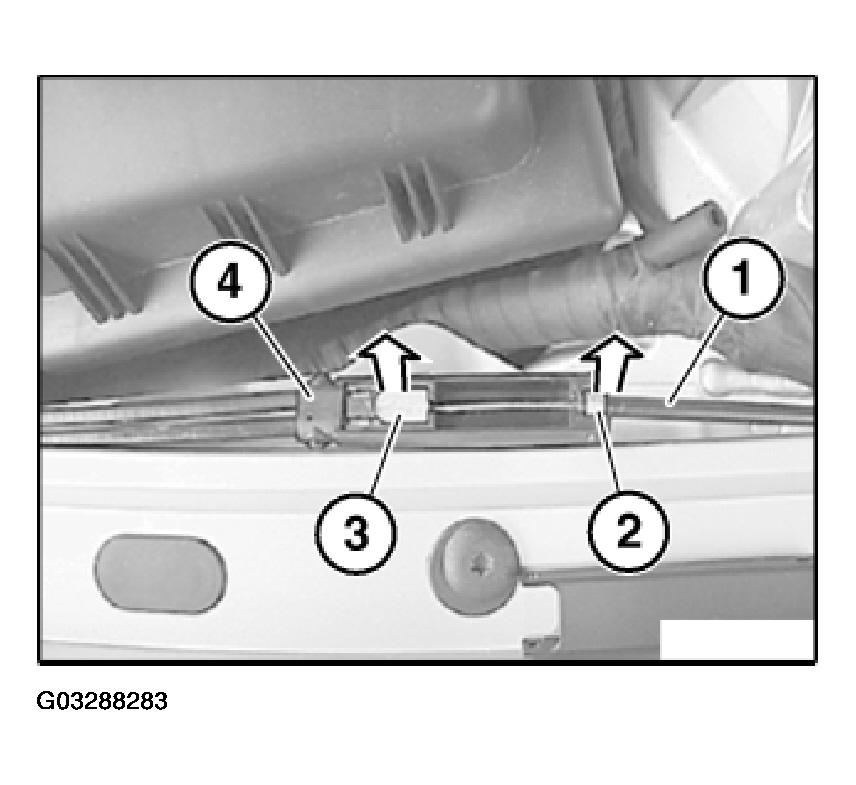

Unclip engine hood lock pull (1) in area (2) and disengage at point (3).

Place housing (4) with associated pulls in working area to one side.

Fig 2: Removing Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure engine hood lock pulls are correctly laid.

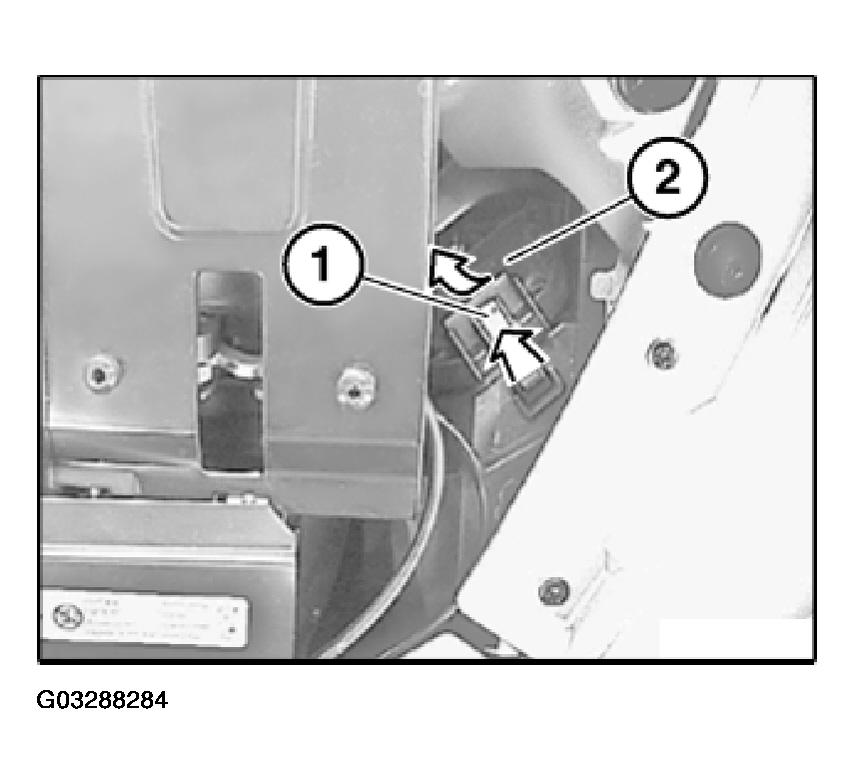

Unlock catch (1) and remove cap (2) in direction of arrow.

Fig 3: Unlocking Catch And Removing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

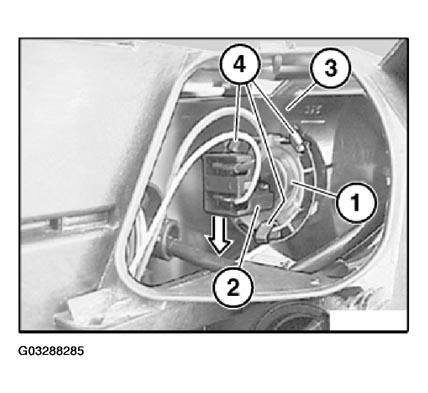

Unclip bulb (1) by pressing on plug (2).

Remove bulb (1) from headlight (3) slightly, disconnect plug connection and remove bulb.

Installation:

Insert bulb (1) in headlight (3) at bottom at first and then tilt upwards until bulb snaps audibly into place.

Fig 4: Inserting Bulb In Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure bulb (1) is correctly seated in catches (4).

Note type of bulb.
