63 10 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Comply with test preconditions for headlight adjustment, refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT  .

Adjust fog lamp (1) at adjusting screw (2).

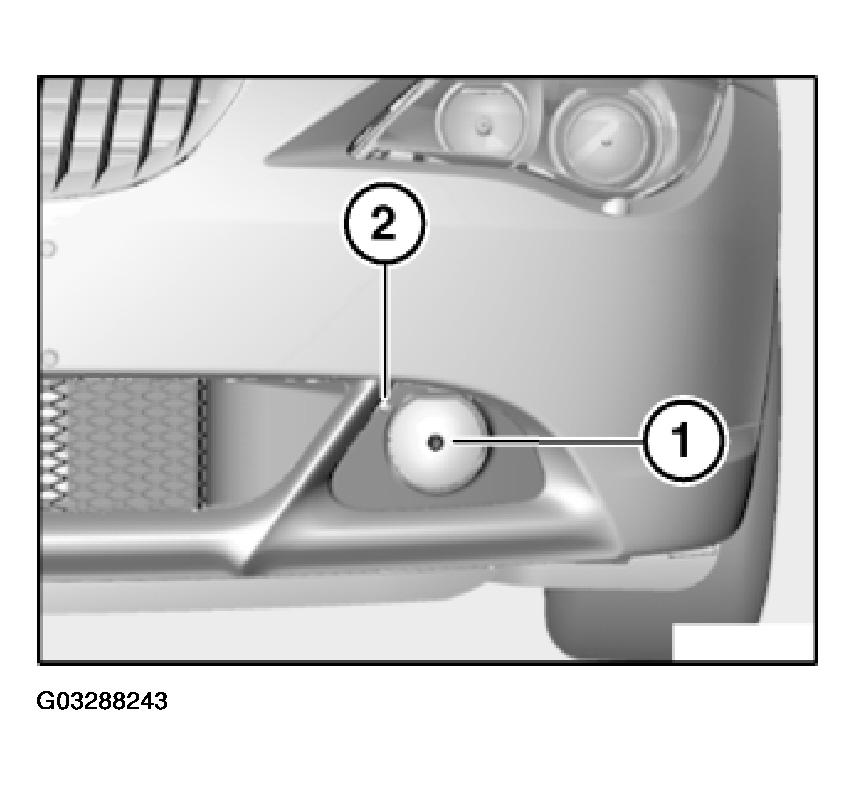

Fig 1: Adjusting Fog Lamp At Adjusting Screw
G03288243Courtesy of BMW OF NORTH AMERICA, INC.
