63 31 080 Removing and installing/replacing luggage compartment light

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Follow instructions for handling light bulbs (interior lights), refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) . Replacement: If necessary, remove bulb.

Lever out luggage compartment light (1) with special tool 64 1 020 as illustrated.

Disconnect associated plug connection and remove luggage compartment light (1).

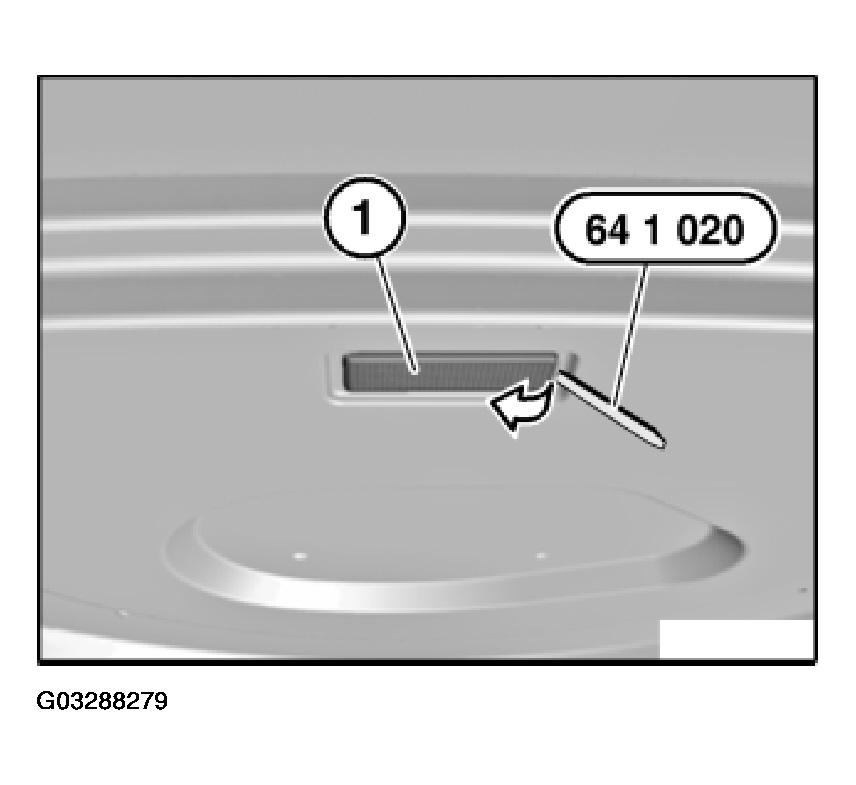

Fig 1: Removing Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Note type of bulb.
