63 31 020 Removing and installing/replacing footwell light
WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020
IMPORTANT:
Follow instructions for handling light bulbs (interior lights), refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS)
. Replacement: If necessary, remove bulb.

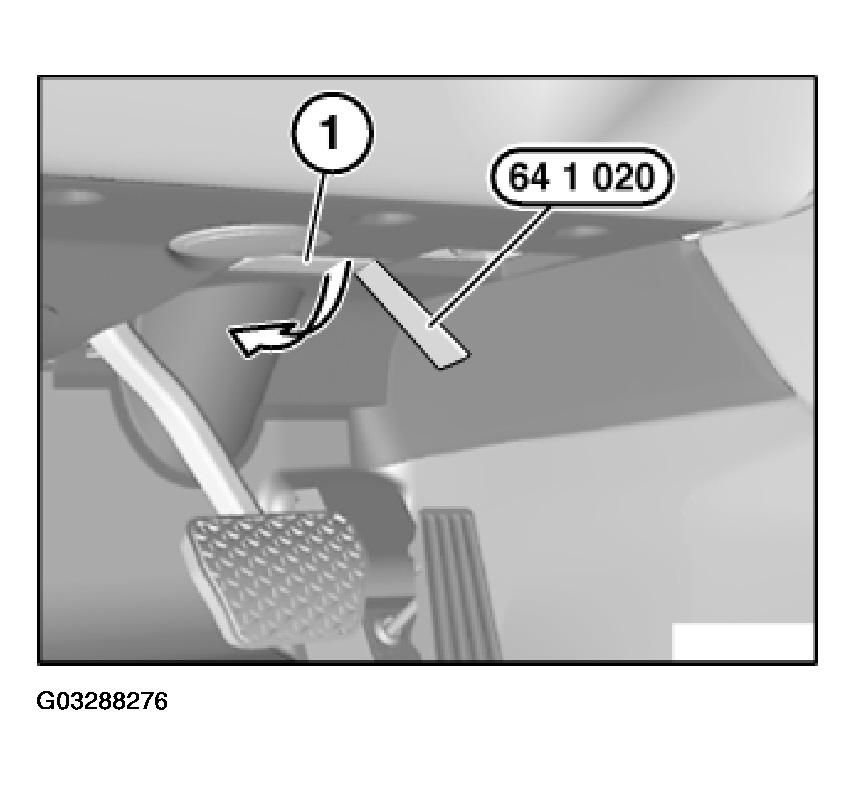

In footwell:
Lever out footwell light (1) with special tool 64 1 020 as illustrated.
Disconnect associated plug connection and remove footwell light (1).
Replacement:
Note type of bulb.

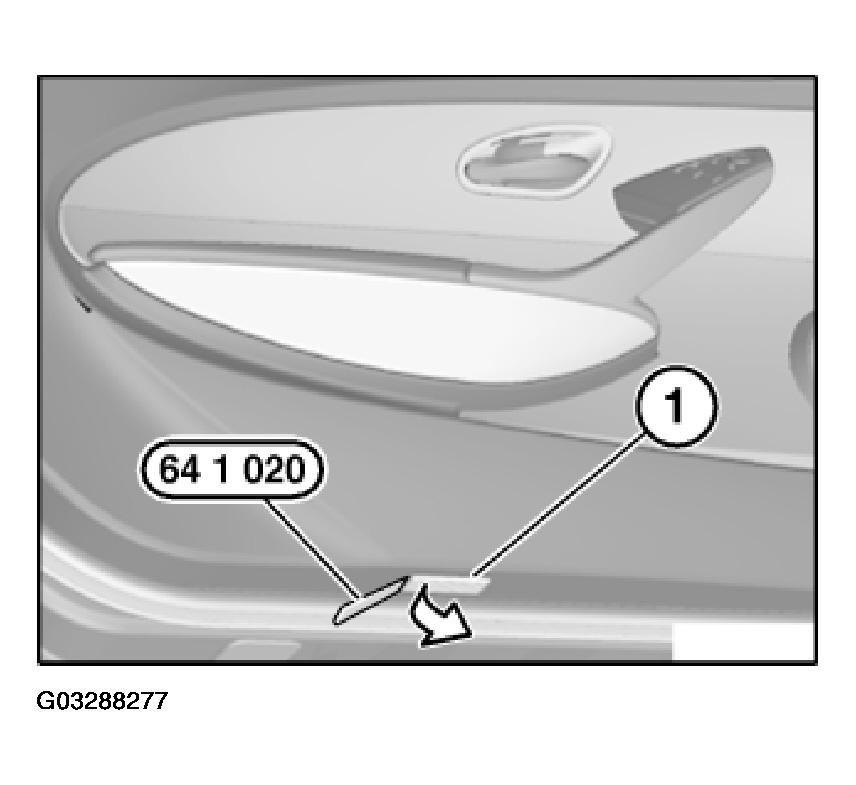

On underside of door:
Lever out footwell light (1) with special tool 64 1 020 as illustrated.
Disconnect associated plug connection and remove footwell light (1).
Replacement:
Note type of bulb.
