63 31 000 Removing and installing/replacing complete ceiling light (front)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

IMPORTANT: Follow instructions for handling light bulbs (interior lights), refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

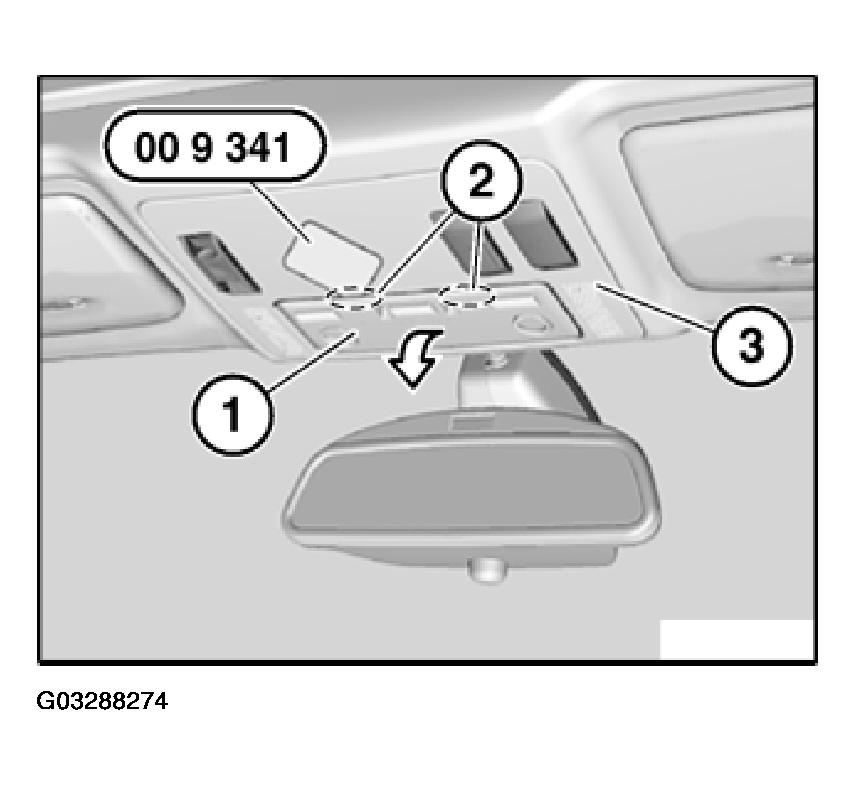

Unclip ceiling light (1) with special tool 00 9 341 at points (2).

Feed ceiling light (1) in direction of arrow out of front roofliner trim (3).

Unlock associated plug connection and disconnect.

Remove ceiling light (1).

Fig 1: Removing Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

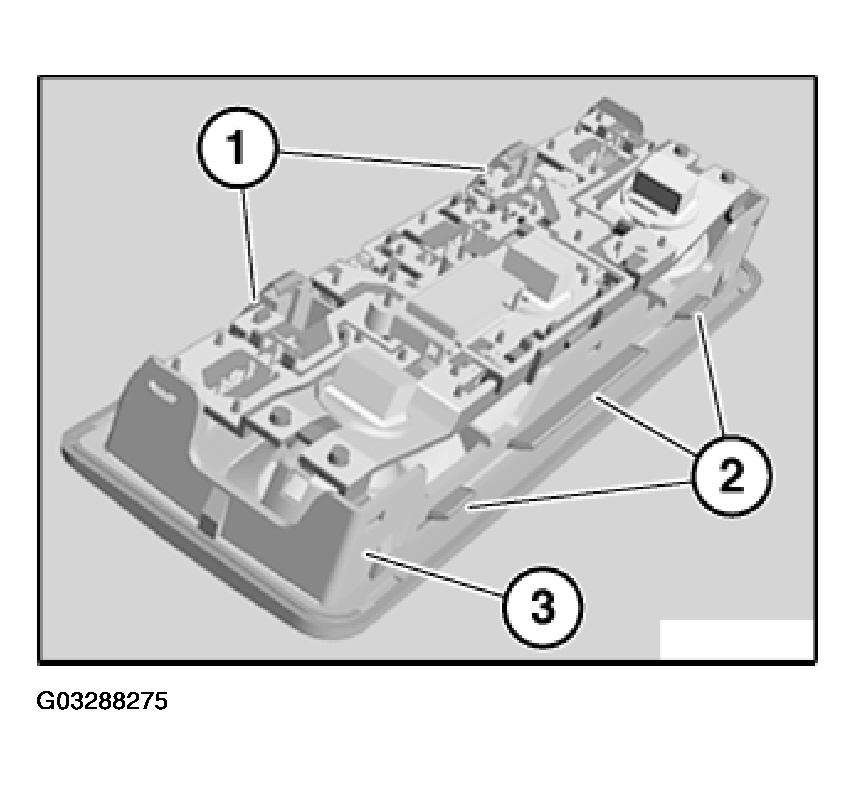

Retaining clips (1) and guides (2) must not be damaged.

Make sure ceiling light (3) is correctly seated.

Fig 2: Checking Ceiling Light Is Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulbs, refer to 63 99 295 REPLACING BULB FOR AUXILIARY TURN SIGNAL LIGHT, FRONT LEFT OR RIGHT .
Note type of bulb.
