63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

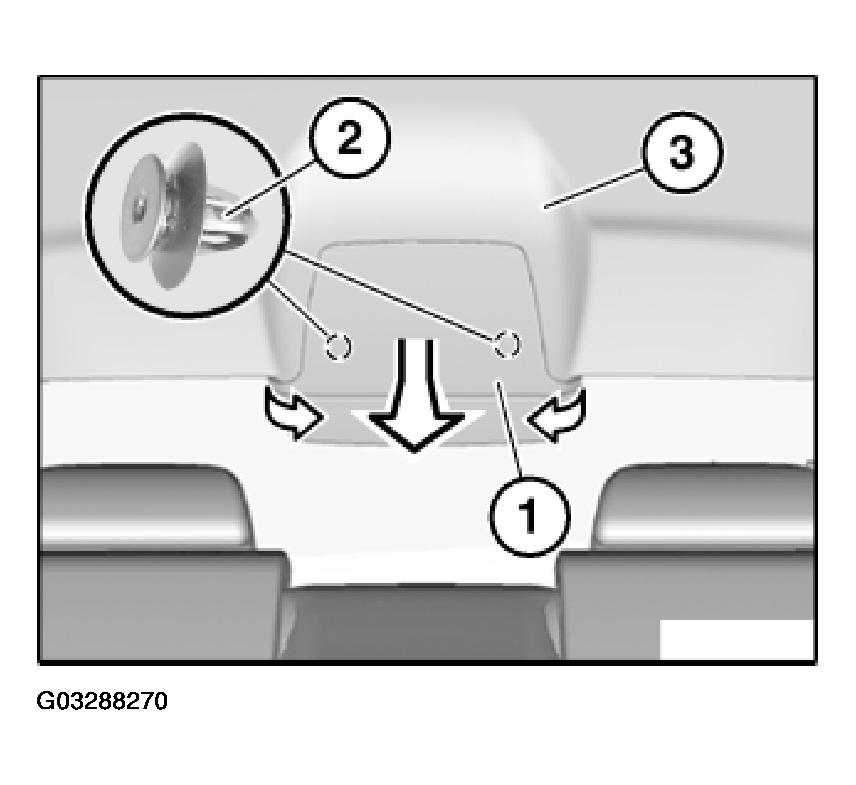

Detach cover for auxiliary brake light (1) on both sides in direction of arrow and unclip at points (2).

Fig 1: Detaching Cover For Auxiliary Brake Light On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cover for auxiliary brake light (1) in direction of arrow out of molded roofliner (3) and remove.

Installation:

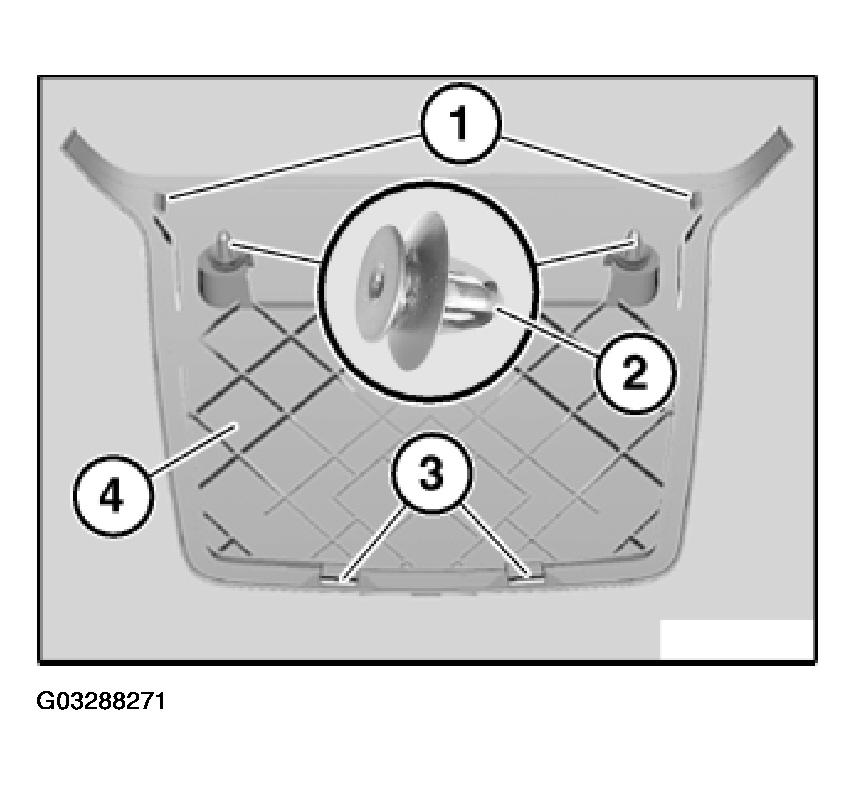

Retaining bar (1), clips (2) and guides (3) must not be damaged.

Make sure cover for auxiliary brake light (4) is correctly seated.

Fig 2: Seating Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

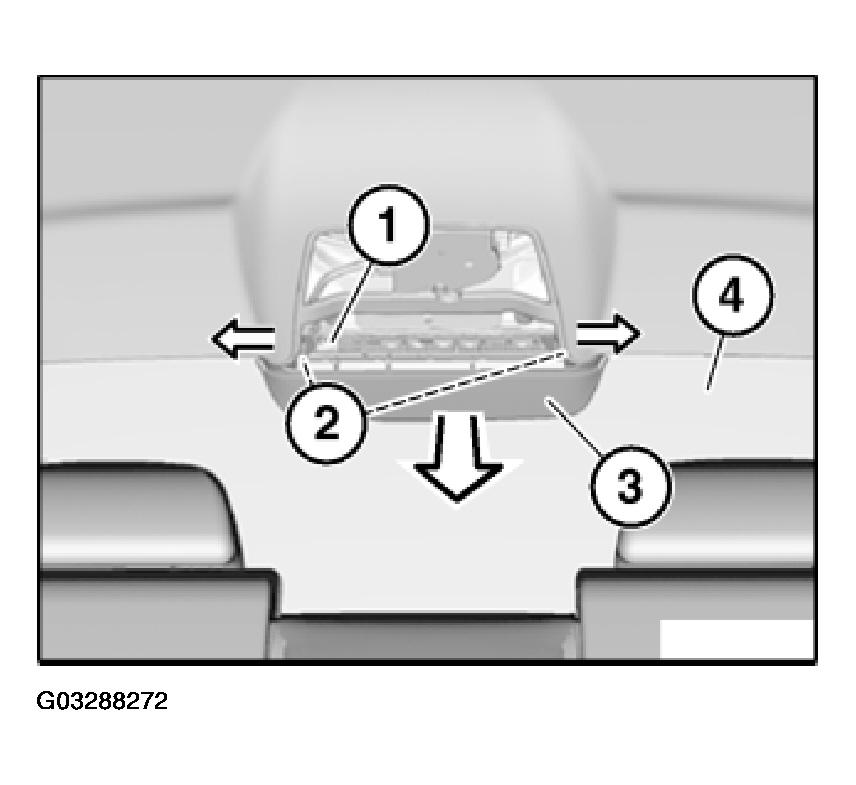

Unfasten plug connection (1) and disconnect.

Unlock slide (2) on both sides and remove auxiliary brake lights (3) in direction of arrow from rear window (4).

Fig 3: Removing Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure auxiliary brake light (3) is correctly positioned in rear window (4).
