61 61 101 Removing and installing both windshield wiper arms

Special tools required:

• 61 6 060

Installation:

Adjust the position of the relevant wiper arm in the wiper rest position.

Measure distance between wiper lip (1) and top edge of cowl panel cover (3) at mounting point (2) of wiper blade.

Adjustment measurements:

• A: 87 +/- 3 mm
• B: 69 +/- 3 mm

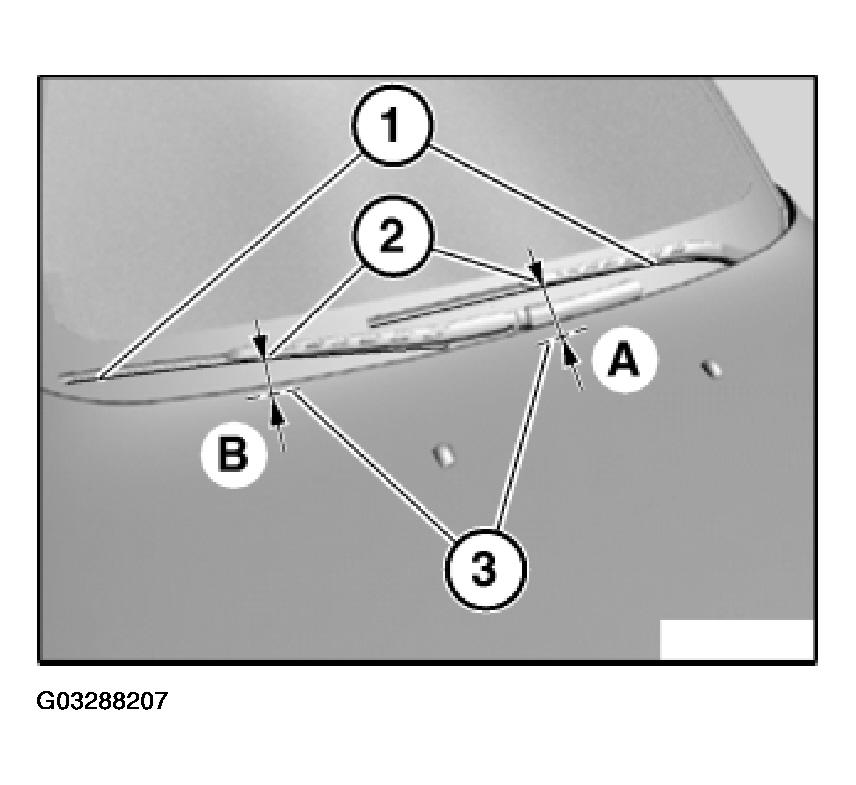

  Fig 1: Measuring Distance Between Wiper Lip And Top Edge Of Cowl Panel Cover

  Courtesy of BMW OF NORTH AMERICA, INC.

Removing left wiper arm:

Unclip wiper arm cap (1) and remove in direction of arrow.

Fig 2: Removing Unclipping Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of wiper arm cap (2) must not be damaged.

Make sure wiper arm cap (2) is correctly seated.

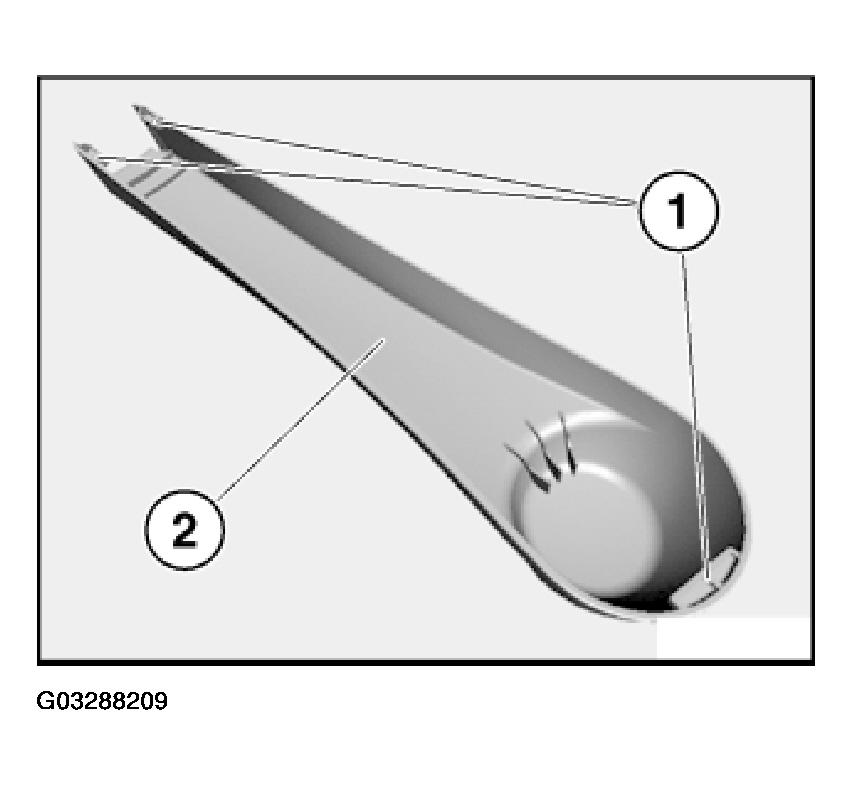

Fig 3: Identifying Catches Of Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Installation:

Tightening torque, refer to 61 61 12AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 645CI .

Remove wiper arm (2) in direction of arrow.

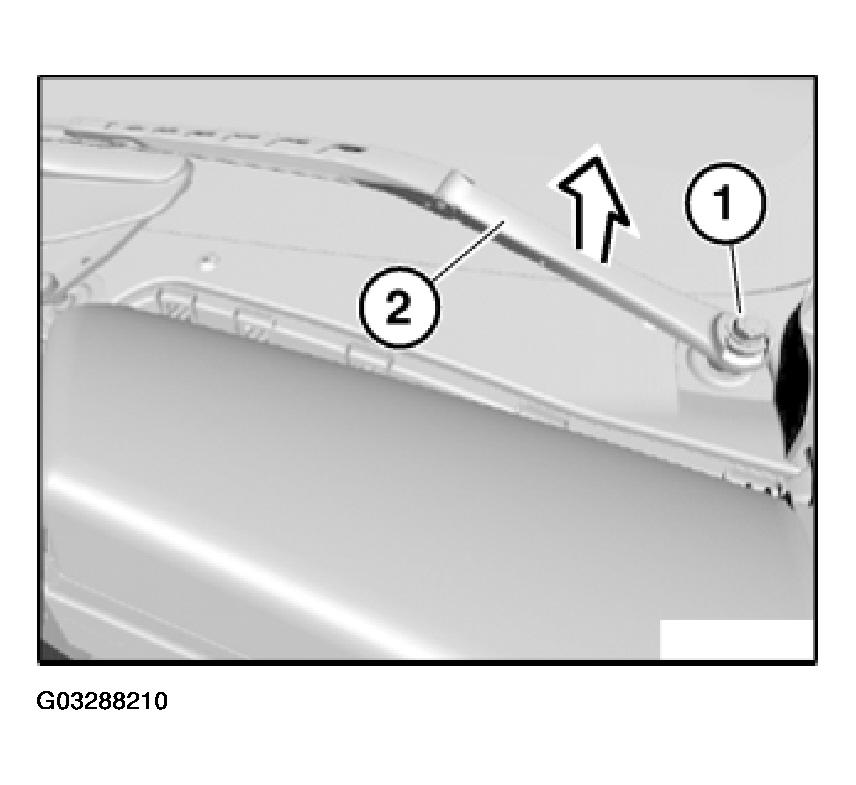

Fig 4: Removing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off adjusting disk (1) with special tool 61 6 060.

Installation:

Replace adjusting disk (1).

Mount adjusting disk (1) together with wiper arm on shaft.

Check/adjust contact angle of wiper arms to windshield.

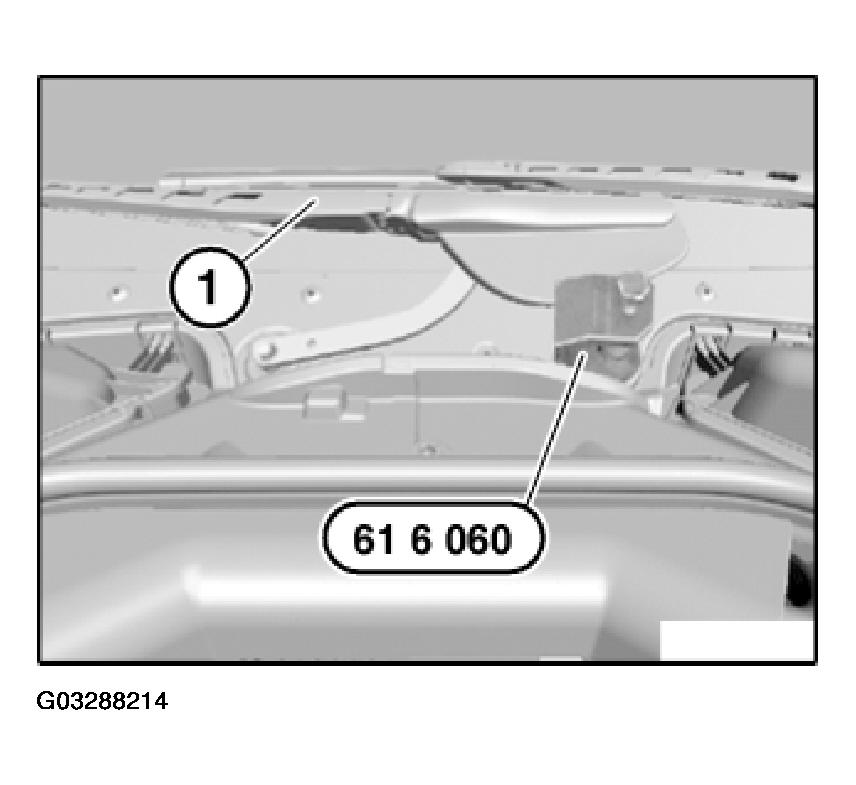

Fig 5: Pulling Off Adjusting Disk With Special Tool 61 6 060

Courtesy of BMW OF NORTH AMERICA, INC.

Removing right wiper arm:

Remove caps (1).

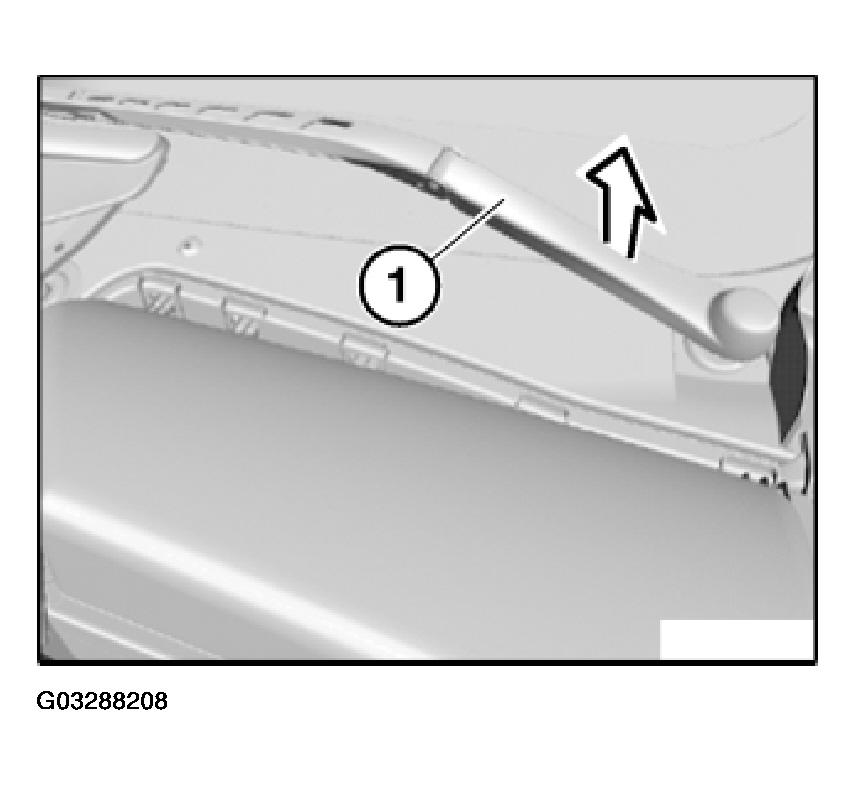

Fig 6: Removing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

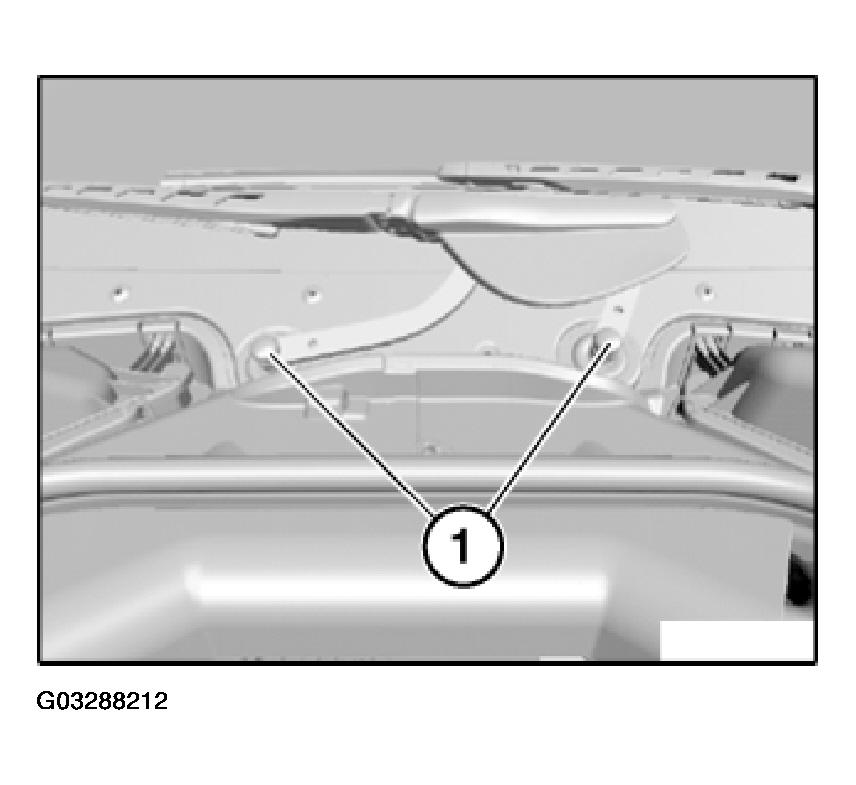

Fig 7: Unscrewing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 61 61 13AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 645CI .

Detach wiper arm (1) as illustrated with special tool 61 6 060.

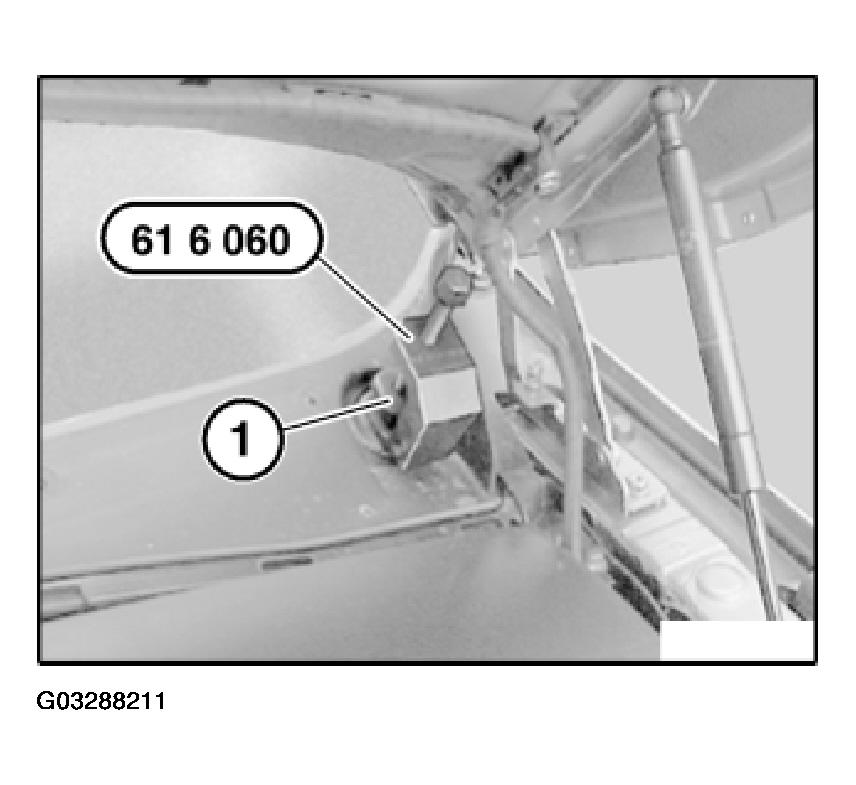

Fig 8: Detaching Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check/adjust contact angle of wiper arms to windshield.
