61 61 041 Replacing both windshield wiper blades

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The windshield wiper arms can only be folded away approx. 45° from the windshield. Make sure the wiper arm does not contact the windshield without its wiper blade.

Fold wiper arm (1) away from windshield.

Press lock (2) and remove wiper blade (3) in direction of arrow.

Installation:

Make sure wiper blade (3) is correctly seated.

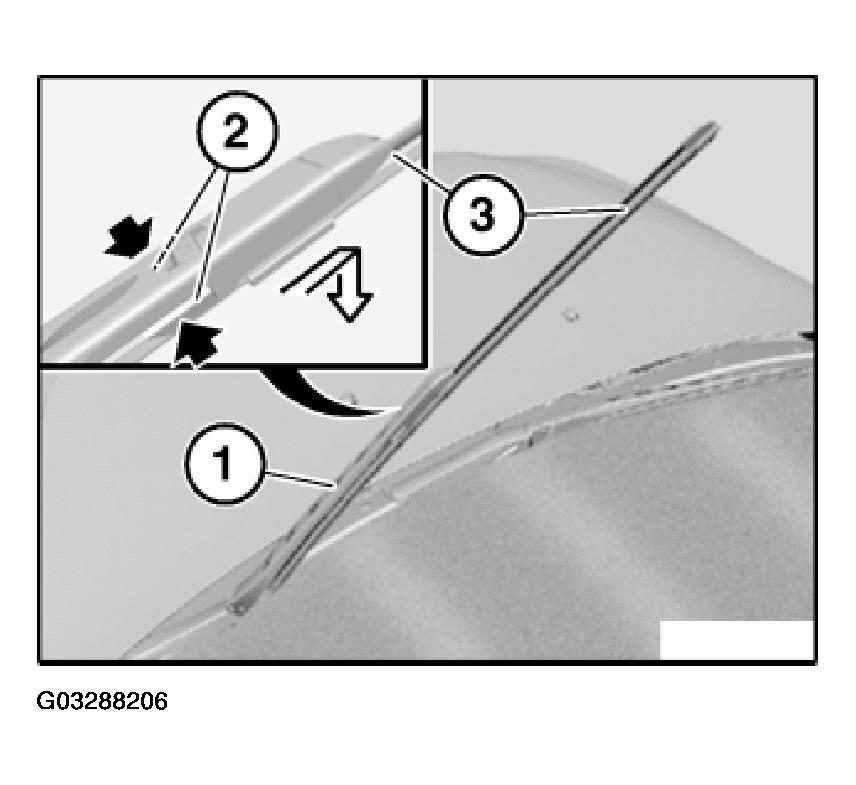

Fig 1: Pressing Lock And Removing Wiper Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Fold wiper arm back onto windshield.
