61 71 015 Removing and installing/replacing a jet nozzle in windshield washer system
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The jet nozzles of the windshield washer system are preset at the factory and cannot be readjusted.

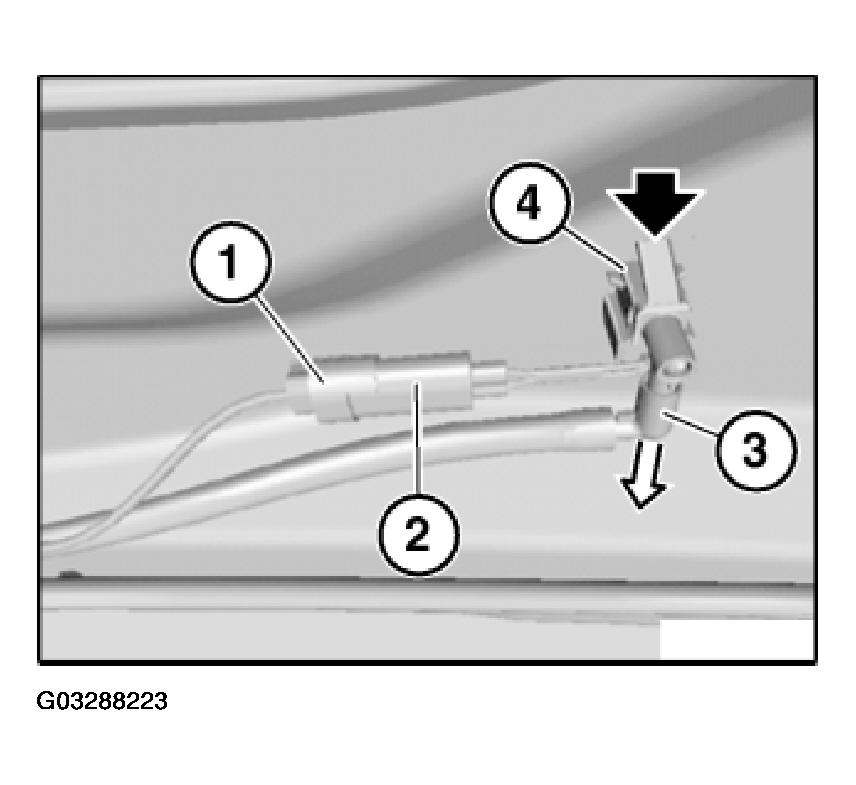

Unfasten plug connection (1) and disconnect.
Unlock plug housing (2) and disconnect.
Detach connector (3) in direction of arrow from nozzle of windshield washer system (4).
Unlock nozzle of windshield washer system (4), press out through opening and remove.
Installation:
Make sure nozzle of windshield washer system (4) is correctly seated.
Ensure hose is laid without kinks.
