61 31 382 Replacing level switch for coolant

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

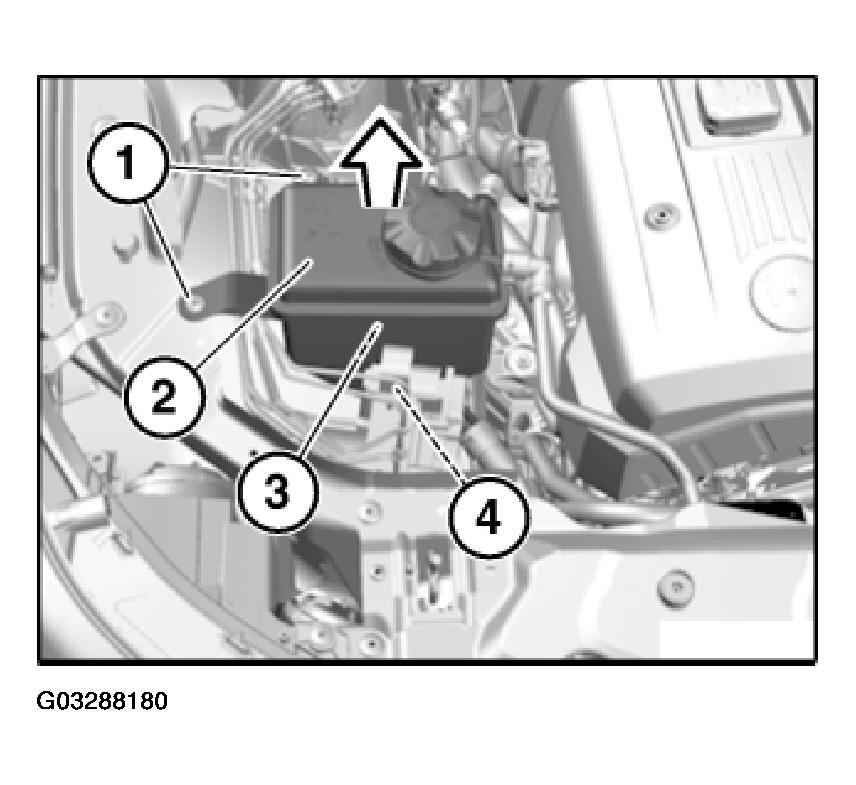

Release screws (1).

Unlock plug connection for coolant level switch (4) and disconnect.

Pull coolant expansion tank (2) in direction of arrow out of grommet (3) underneath.

Installation:

Make sure coolant expansion tank (2) is correctly seated in grommet (3).

If necessary, replace grommet (3).

IMPORTANT: Do not damage connected water hoses. Reposition coolant expansion tank (2) as far as possible until coolant level switch (4) forms the highest point. This will prevent coolant from escaping on opening. If necessary, catch escaping coolant and feed back in later.

Fig 1: Pulling Coolant Expansion Tank Out Of Grommet Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows coolant expansion tank (2) removed.

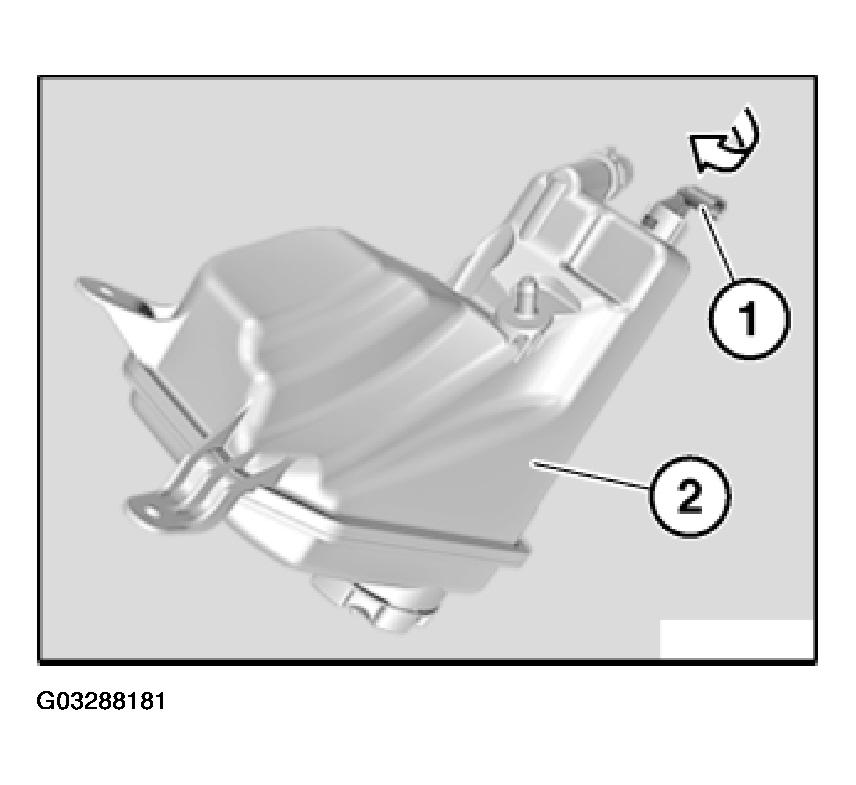

Turn coolant level switch (1) in direction of arrow, pull upwards out of coolant expansion tank (2) and remove.

Fig 2: Removing Coolant Level Switch Out Of Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.
