61 31 330 Removing switch for glovebox light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63)
.
- 64 1 020

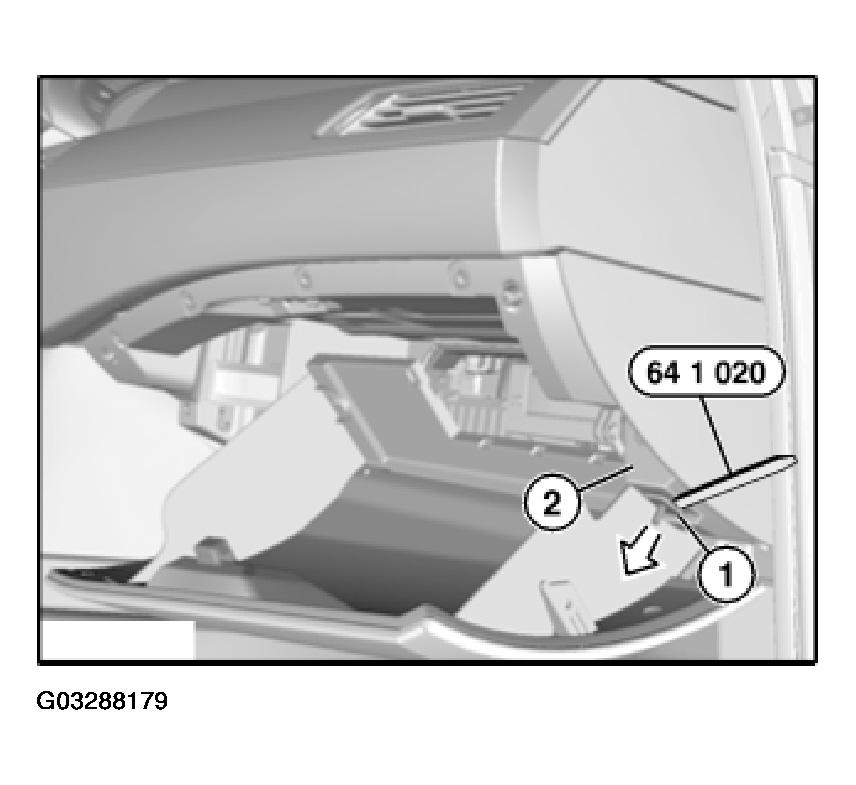

Lever switch for glovebox light (1) with special tool 64 1 020 as pictured out of glovebox housing (2).
Unlock and disconnect associated plug connection, remove switch for glovebox light (1).
