61 31 310 Replacing brake light switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unfasten plug connection (1) and disconnect.

Pull brake light switch (2) in direction of arrow out of brake light switch holder (3).

Installation:

Press brake pedal (4) to floor.
Slide brake light switch (2) as far as it will go into brake light switch holder (3).
Grip brake light switch holder (3), slowly return brake pedal (4) to starting position and pull back to stop.

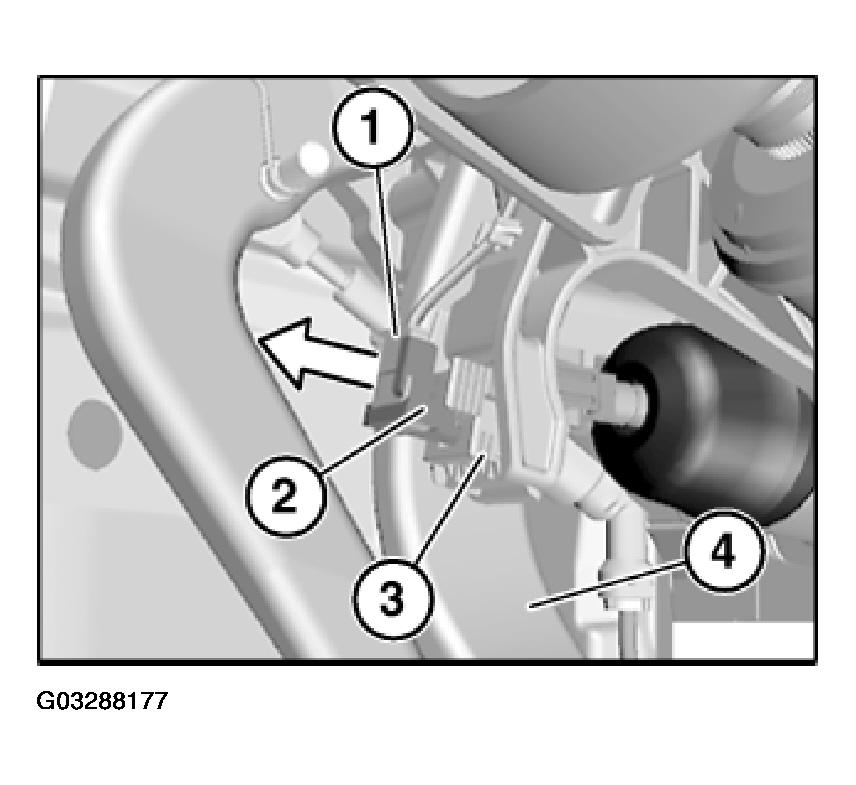

Fig 1: Pulling Brake Light Switch Out Of Brake Light Switch Holder
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing brake light switch holder (2):

Press brake pedal.

Press catches (1) together and unclip brake light switch holder (2) from bearing block (3).

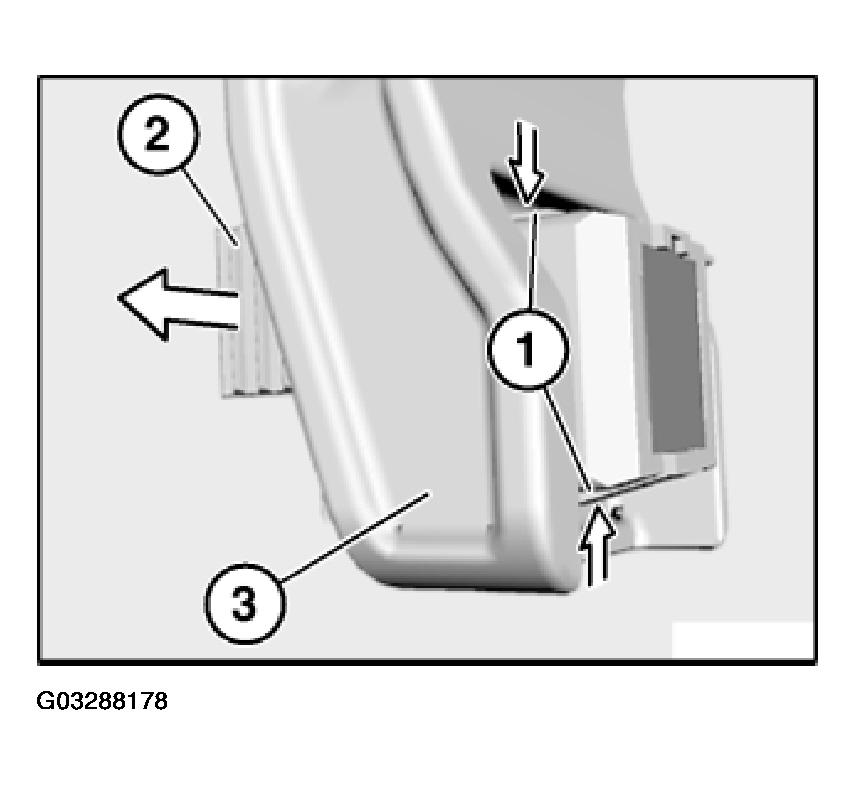

Fig 2: Pressing Catches Together And Unclipping Brake Light Switch Holder From Bearing Block

Courtesy of BMW OF NORTH AMERICA, INC.
