61 31 270 Removing and installing/replacing switch for reversing light (DME)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove rear underbody protection, refer to 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .

Unfasten plug connection (1) and disconnect.

Release switch for reversing light (2).

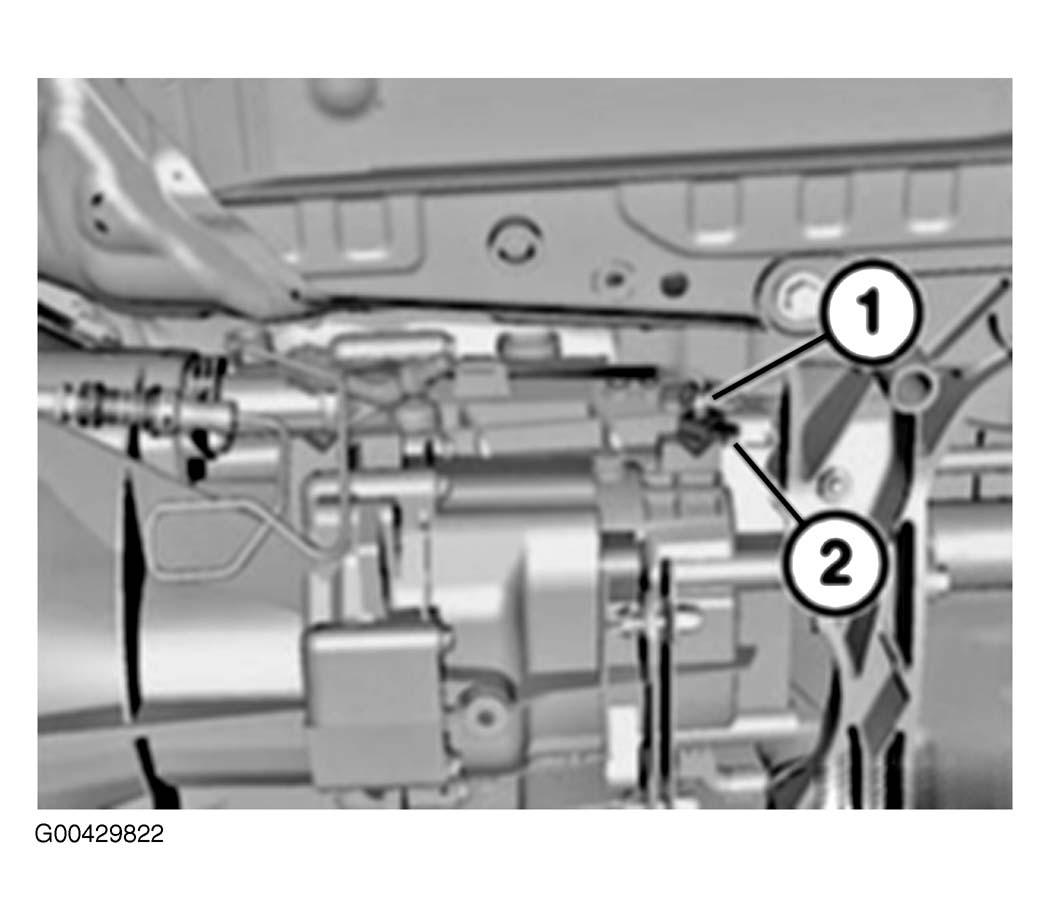

Fig 1: Identifying Plug Connection (1) And Reversing Light (2)

Courtesy of BMW OF NORTH AMERICA, INC.
