61 31 241 Removing and installing/replacing engine hood contact switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection (1) and disconnect.

Pull engine hood contact switch (2) in direction of arrow and feed out of microfilter air duct (3).

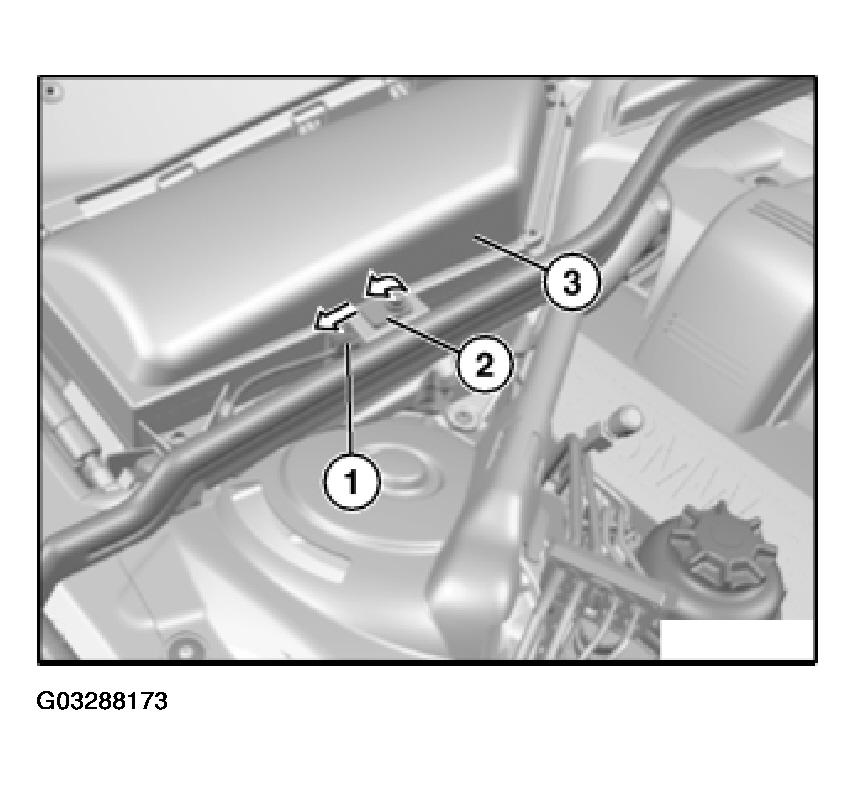

Fig 1: Pulling Engine Hood Contact Switch And Feeding Out Of Microfilter Air Duct
G03288173Courtesy of BMW OF NORTH AMERICA, INC.
