61 31 233 Removing and installing/replacing Lane Departure Warning motor electronics (sport steering wheel)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove decorative bar from steering wheel .

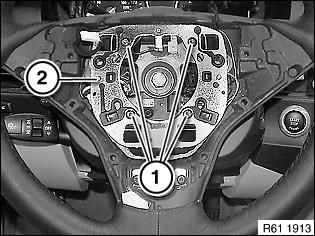

Release screws (1) and remove retaining plate (2). Tightening torque, see 32 33 2AZ in 32 33 STEERING WHEEL .

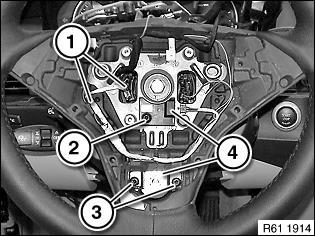

Disconnect plug connection (1). Release screw (2). Release screws (3) and remove motor electronics (4) complete with electrical wires. Installation: Replace screws (2 and 3). (2) Tightening torque, see 32 33 3AZ in 32 33 STEERING WHEEL , (3) Tightening torque, see 32 33 4AZ in 32 33 STEERING WHEEL . Ensure correct cable routing.
