61 31 220 Removing and installing/replacing multifunction steering wheel switches (sport steering wheel, from 09/2005)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove airbag unit

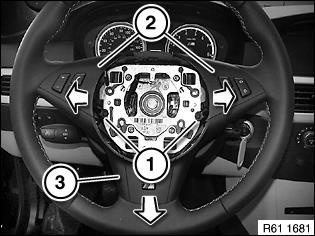

Release screws (1).

IMPORTANT: Risk of breakage! Lever out switches (2) complete with decorative strip (3) all round, do not tilt!

Disconnect associated plug connections and remove switches (2) complete with decorative strip (3). Installation: Make sure electrical leads are correctly routed.

Fig 1: Disconnect Associated Plug Connections And Remove Switches (2) Complete With Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

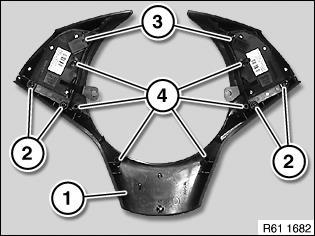

Release screws (2) and remove left multifunction steering wheel switches (3) from decorative strip (1). Installation: Guide pins (4) must not be damaged and must be correctly inserted. Make sure there is a uniform gap between both multifunction steering wheel switches (3) and decorative strip (1).

Fig 2: Make Sure There Is A Uniform Gap Between Both Multifunction Steering Wheel Switches (3) And Decorative Strip (1)

Courtesy of BMW OF NORTH AMERICA, INC.
